Honda FOURTRAX - Suspension Spring Pre-Load

Servicing Your Honda
165
Suspension
Refer to Safety Precautions on page 109.

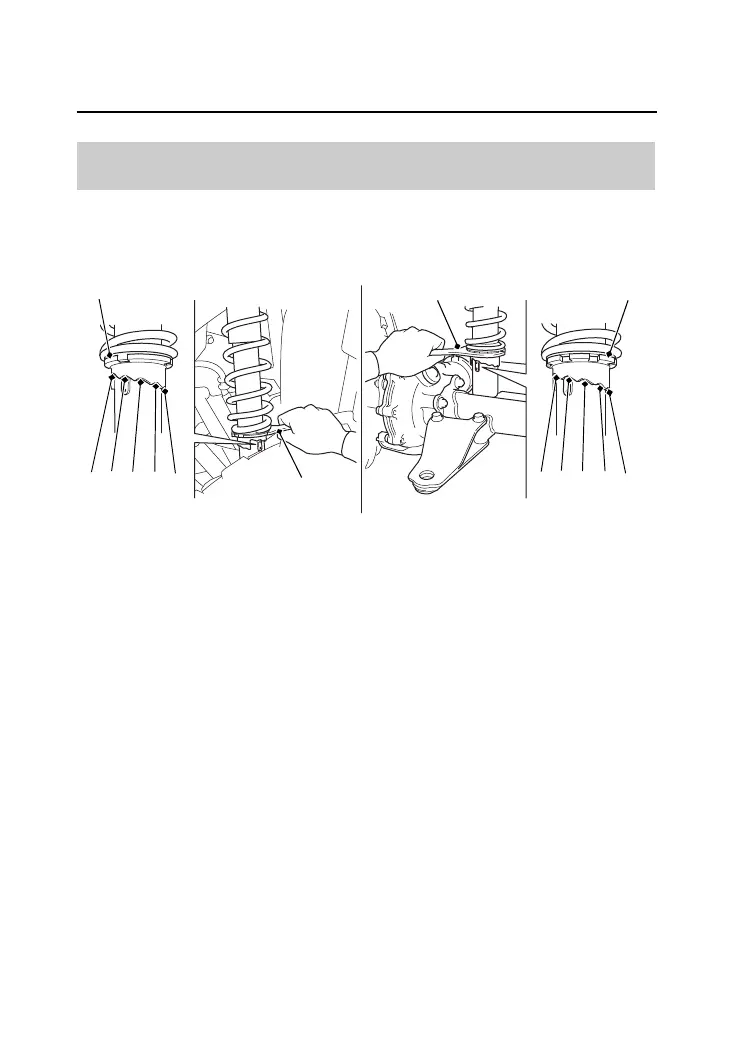

The spring pre-load adjuster (1) has 5 positions for different load or
riding conditions.
Use the pin spanner (2) to adjust the shock spring pre-load.
Suspension Spring Pre-Load
FRONT REAR
(1) spring pre-load adjuster
(2) pin spanner
(1) (1)(2)
(2)
12345 12345
