Servicing Your Honda
190
Battery
The battery is located in a compartment under the rear fender cover.
Removal
1. Make sure the ignition switch is OFF (w).
2. Remove the seat (page 120).
3. Remove the rear fender cover (page 121).
4. Release the rings and remove the rubber band (1).
5. Disconnect the negative (–) terminal lead (2) from the battery (3)
first, then disconnect the positive (+) terminal lead (4).
6. Remove the battery taking care not to drop the terminal nuts (5).

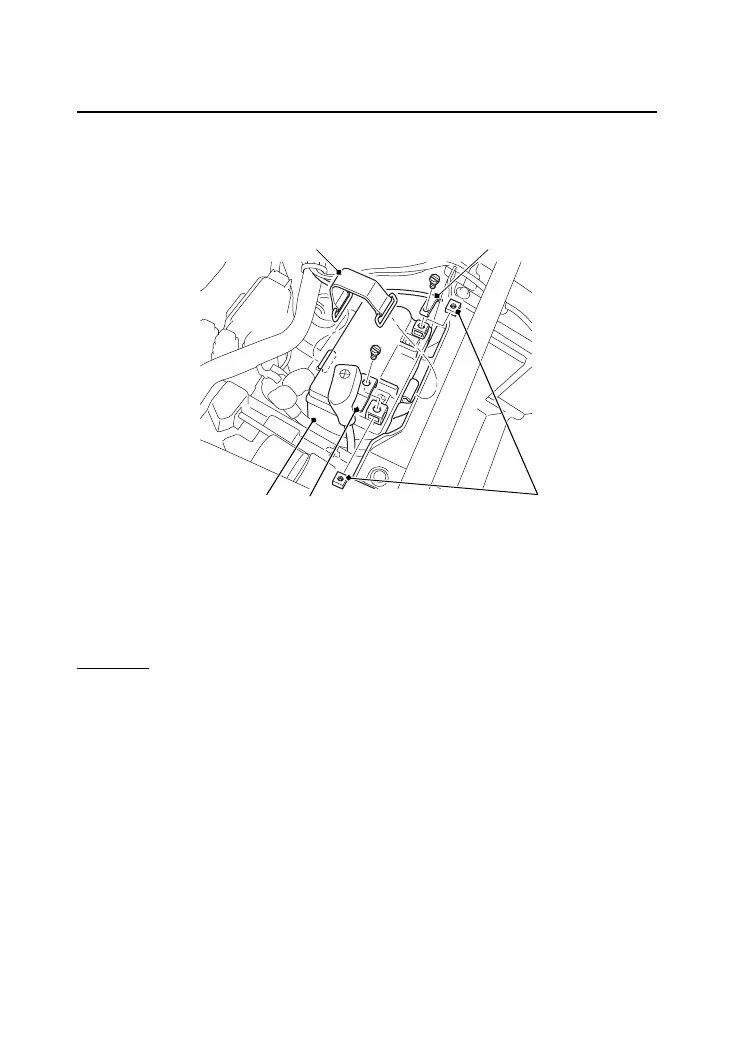

(4)
(1) rubber band
(2) negative (–) terminal lead
(3) battery
(4) positive (+) terminal lead
UNDER REAR FENDER COVER
(2)
(3)
(1)
(5) terminal nuts
(5)
