If a Fuse Blows
PS (Electric Power Steering) Fuse Access (TRX500FM2 only)
1. Turn the ignition switch to OFF (w ) before checking the fuse.
2. Remove the seat (page 120).
3. Remove the rear fender cover (page 121).
4. To access the EPS fuse (1), remove the fuse cover (2).
If the PS fuse is blown, install the spare fuse (page 119).
5. Install the fuse box cover.
6. Install the rear fender cover.
7. Install the seat.

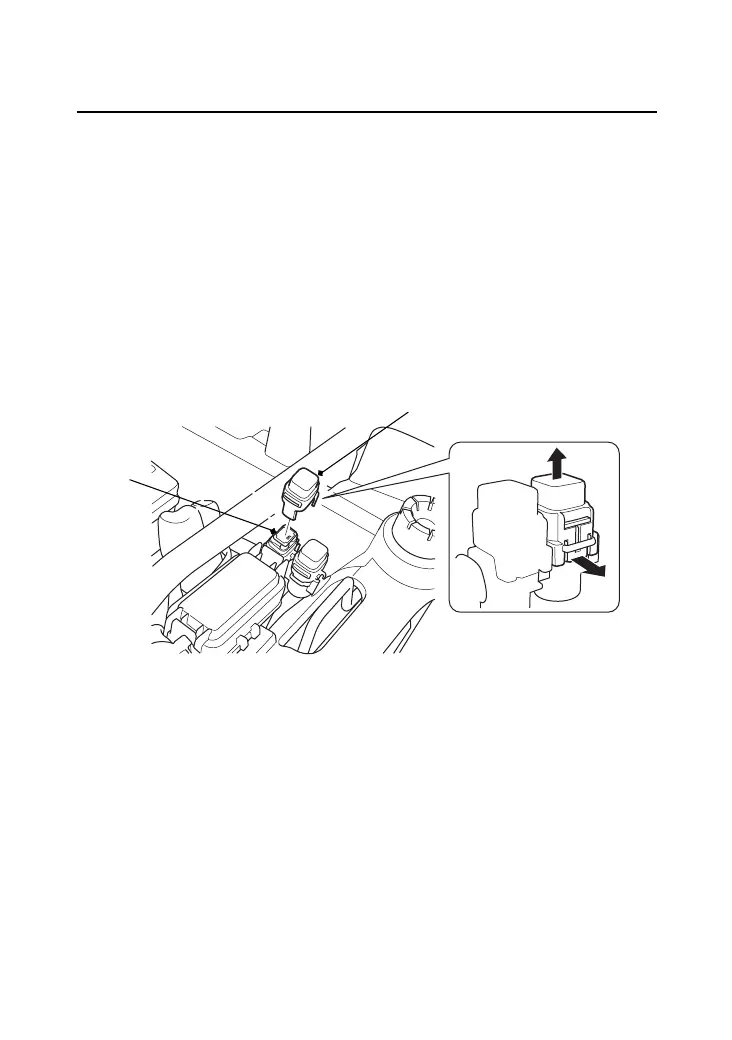

(1) EPS fuse (2) fuse cover
UNDER REAR FENDER COVER
(1)
(2)
