Honeywell 5701 - Page 129

4 - 66
MAN0443.P65 Issue 13 Aug 04 5701 Control System
05701-M-5001 A02279
CHAPTER 4 - INSTALLATION INSTRUCTIONS

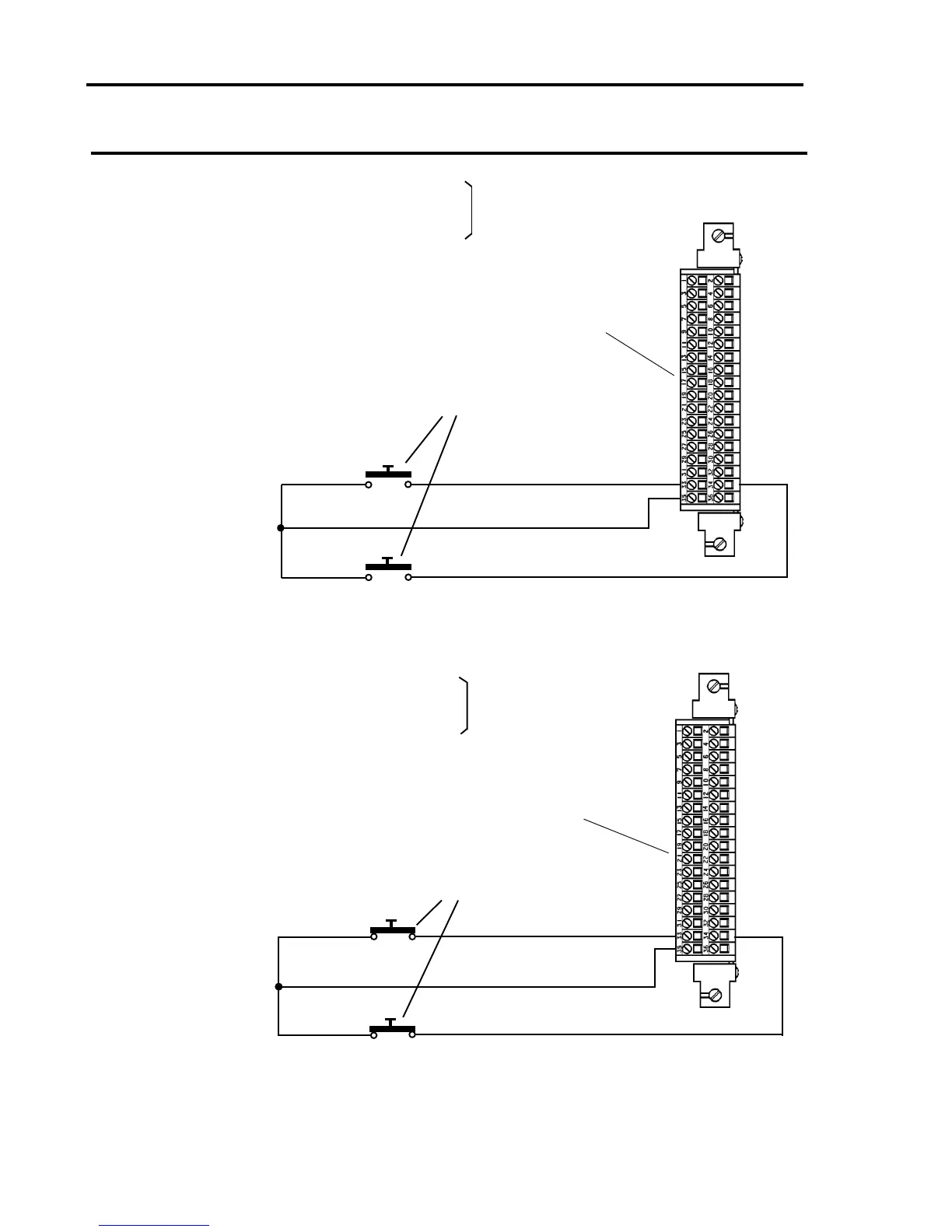

Active High Remote Input Connected via Normally Open Voltage
Free Contact to +24V
Relay/Field Interface Card
05701-A-0326
05701-A-0327
05701-A-0328
05701-A-0329
05701-A-0330
Single Channel Control Card
05701-A-0301 4 - 20mA
05701-A-0302 Catalytic
Remote Inhibit
+24V
Remote Reset
Configured for active
high remote inputs
Normally Open Contact
INHIBIT
RESET
33
34
35
Relay/Field Interface Card
05701-A-0326
05701-A-0327
05701-A-0328
05701-A-0329
05701-A-0330
Single Channel Control Card
05701-A-0301 4 - 20mA
05701-A-0302 Catalytic
Normally Closed Contact
Configured for active
low remote inputs
33
Active Low Remote Input Connected via Normally Closed
Voltage Free Contact to +24V
34
Remote Inhibit
+24V
Remote Reset
INHIBIT
RESET
35
