CHAPTER 8 - SPECIFICATION
Environmental Protection: IP54.
Hinged: Left hand side.
Lock: Right hand side.
Colour: RAL 7015 slate grey.
Mounting Bracket Holes: 10mm diameter.
Rack Mounting: Universal 19 inch profile.
19 inch width and half 19 inch width.
Earthing Points: Main cabinet M6.
Door M5.
Mounting Plate: Galvanised steel.

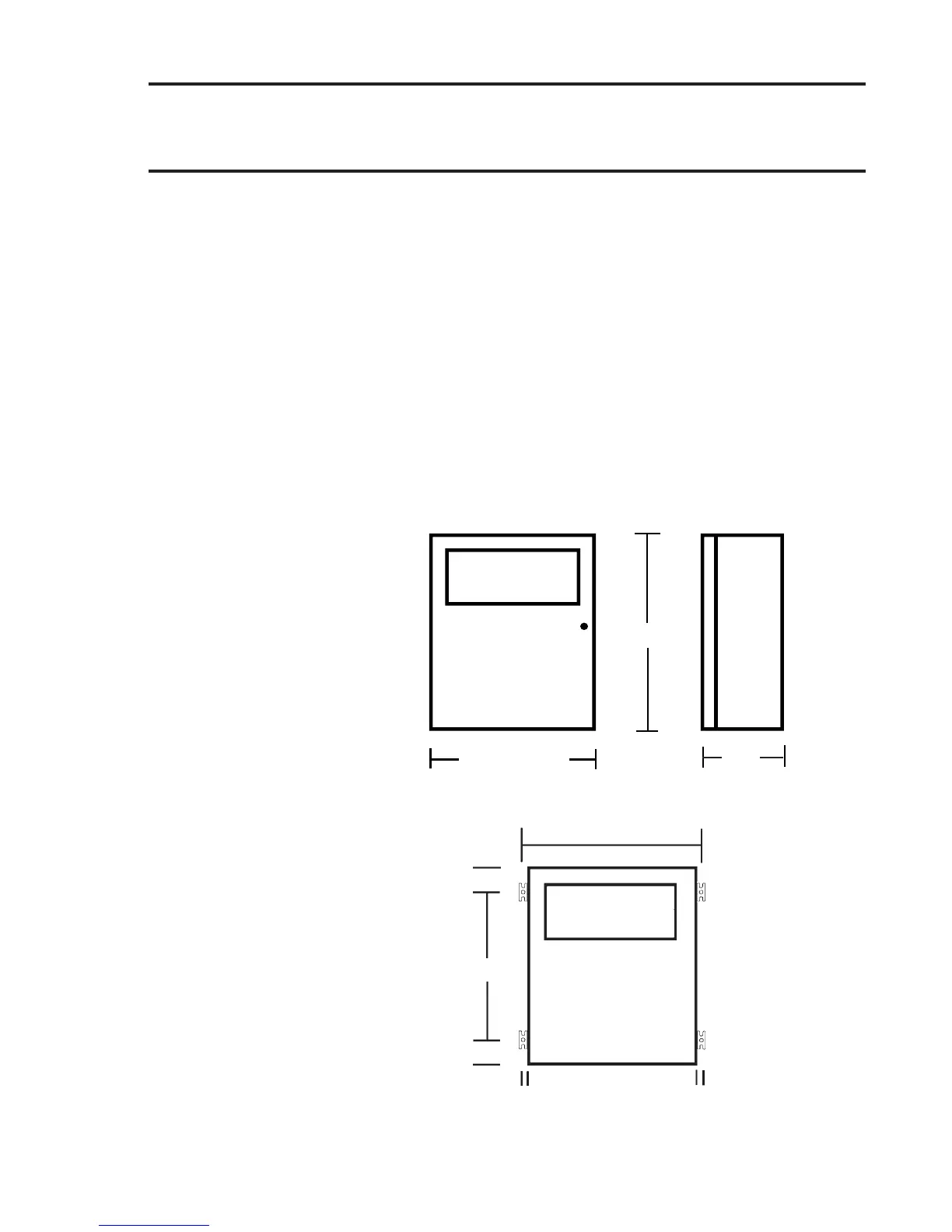

Dimensions:
Cabinet Mounting Brackets
100
100
430
15
15
8 way 367mm
16 way 570mm
All dimension
shown in mm.
630
268
8 way 337
16 way 540
