CHAPTER 2 - SYSTEM DESCRIPTION
NC = Normally Closed. NO = Normally Open. COM = Common.
Relay contact conditions refer to the no power state of the relay.

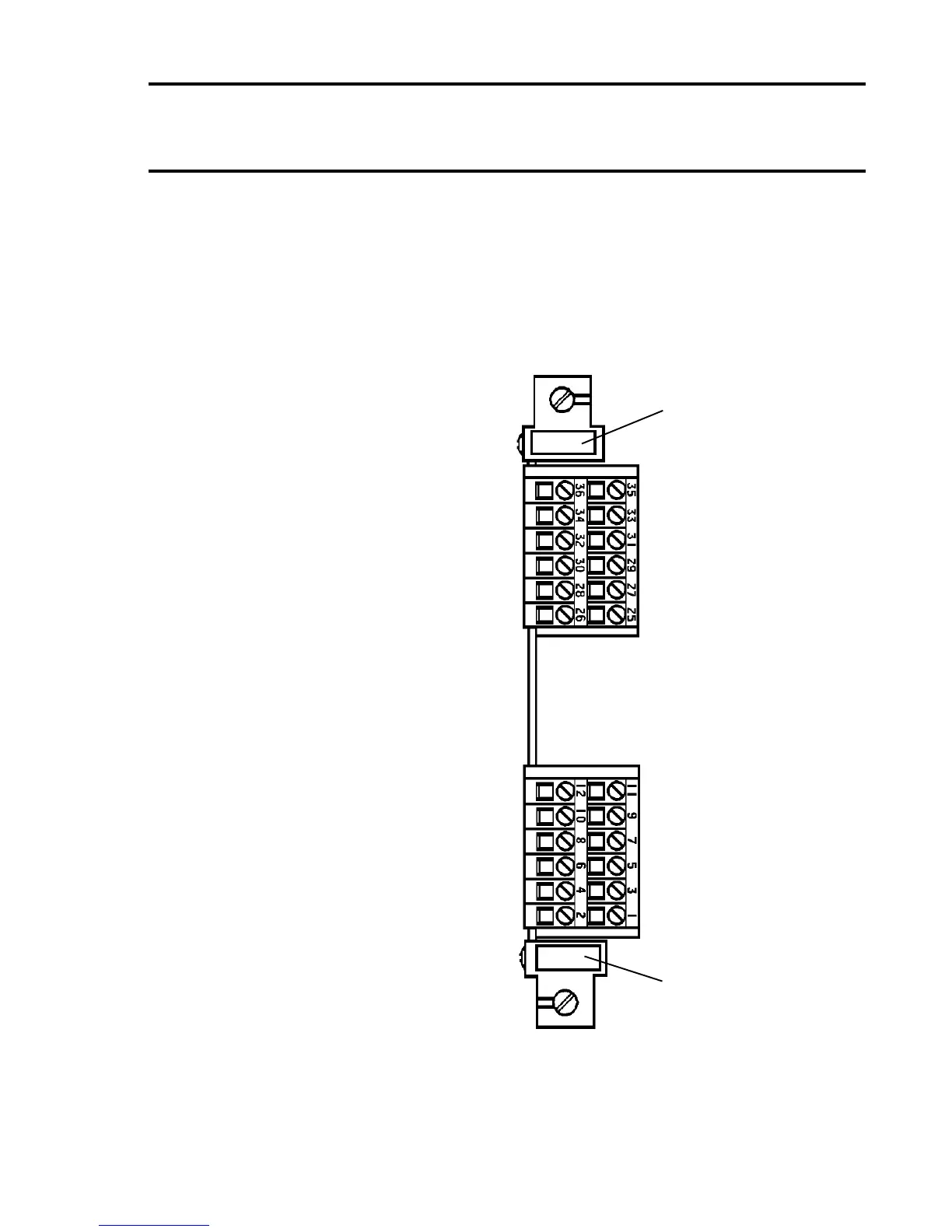

5.3.3 Front Access Connections
0V (Out/In) 36
Remote Reset In 34
Analogue O/P (-) 32
Not Connected 30
Sensor 01 Connection 28
Ground 26
35 +24V (Out/In)
33 Remote Inhibit In
31 Analogue O/P (+)
29 Sensor NS Connection
27 Sensor S Connection
25 Ground
A2(1) NO 12
A2(1) COM 10
A1(1) NO 8
Not Connected 6
Not Connected 4
Fault NO 2
11 A2(1) NC
9 A1(1) COM
7 A1(1) NC
5 Not Connected
3 Fault COM
1 Fault NC
Slot
Location
User
Terminal
Reference
