INTRODUCTION

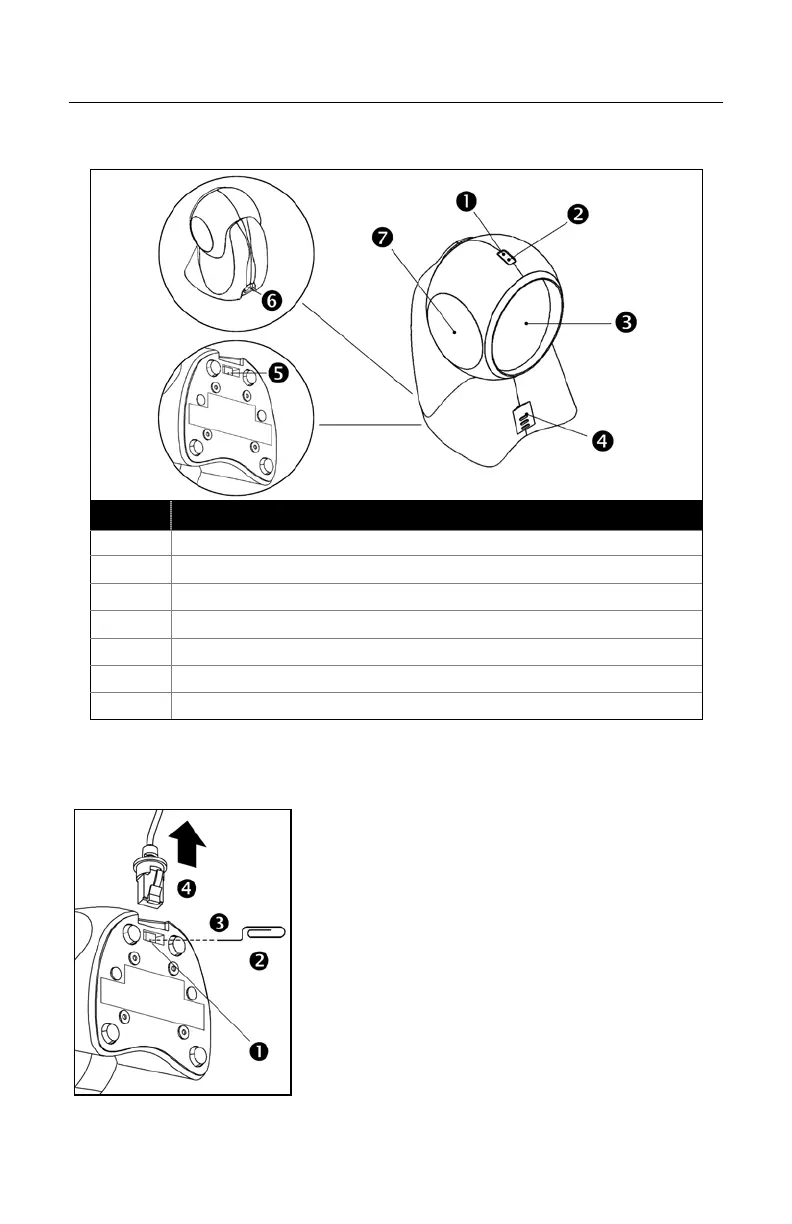

Scanner Components
ITEM NO
DESCRIPTION
1
White LED (see page 12)
2 Blue LED (see page 12)
3
Red Output Window (Laser Aperture)
4
Speaker (see page 12)
5
Pin Hole for Cable Release
6
10-Pin RJ45, Female Socket (see page 28)
7
Adjustable Scan Head, 30°
Figure 1. Scanner Components
Cable Removal
1. Locate the small ‘pin-hole’ on the bottom of
the scanner near the cable.
2. Bend an ordinary paperclip into the shape
shown.
3. Insert the paperclip into the small ‘pin-hole’.
4. There will be a faint ‘click’ when the cable
lock is released. Pull gently on the strain-
relief of the PowerLink cable to remove it
from the scanner.
Figure 2. Cable Release
4

Honeywell 7120 Orbit Specifications

General

Brand	Honeywell
Model	7120 Orbit
Category	Barcode Reader
Language	English
