BENDIX/KING RDR 2000

Rev 7, July/2002 00643I05.TDC Page 2-91

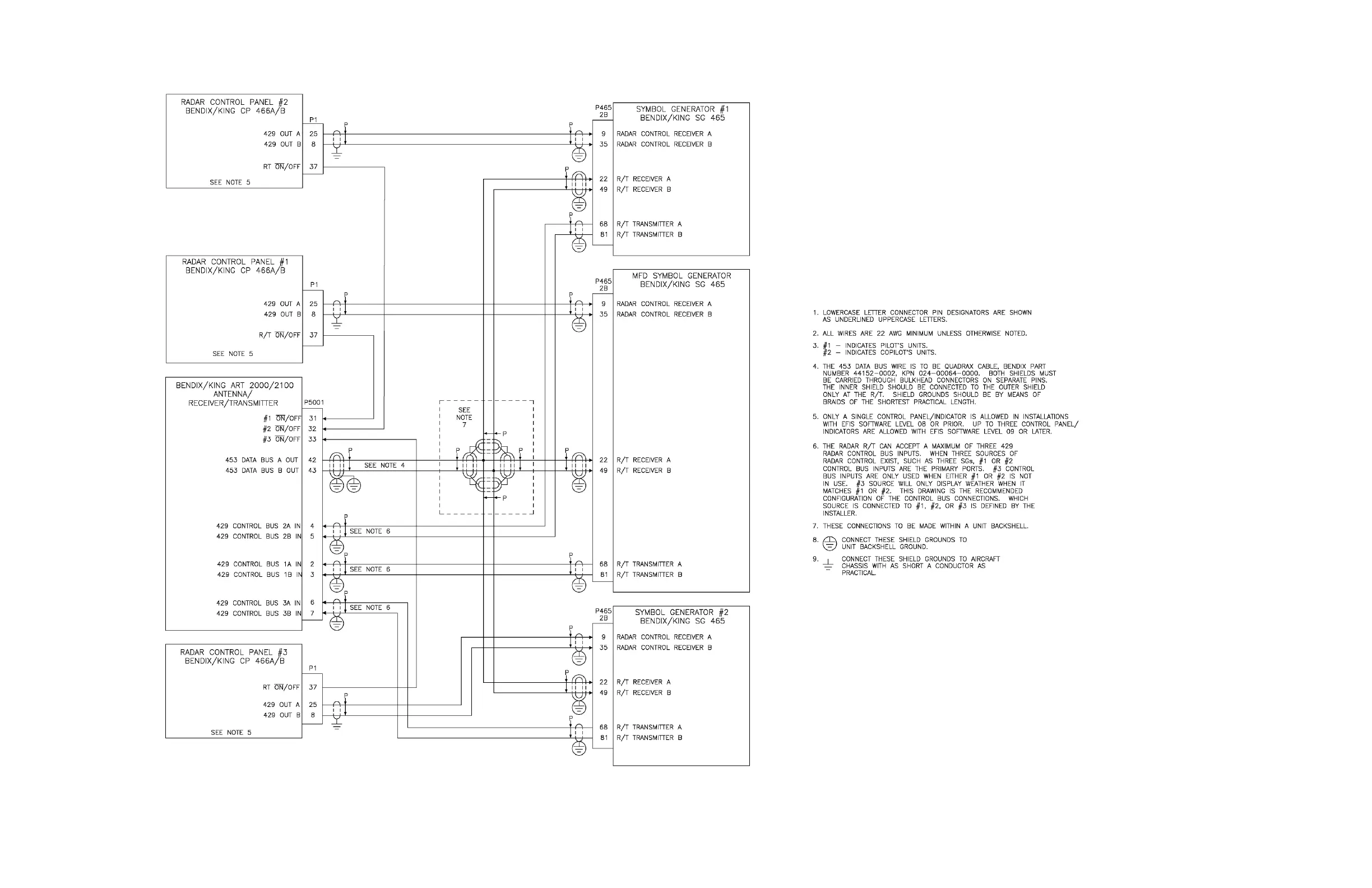

FIGURE 2-45 EFIS 40/50 INTERCONNECT

(3 SG, 3 CONTROL PANELS)(Dwg. No. 155-01636-0060 R-2)

Table of Contents3
General Information19
Introduction19
Equipment Description19
Art 2000 Antenna/Receiver/Transmitter20
In 182A Color Radar Indicator20
Aa2010V/H and Aa2012V/Hantennas21
CM 2000 Configuration Module21
Technical Characteristics21
Arinc 429 Information21
1.3.2 Unit Information22
Art 2000 Antenna/Receiver/Transmitter23
In 182A Color Radar Indicator25
Antennas27
CM 2000 Configuration Module27
Installation Kits27
Accessories Required, but Not Supplied29
Stabilization Requirements29
Quadraxial Cable29
14/28 VDC Converter29
Radome29
Configuration Module Programmer Kit29
Optional Accessories29
Installations with Efis29
Gc 360A Radar Graphics Computer30
Gc 362A Tcas Graphics Processor30
Gc 381A Radar Graphics Computer30
CC 2024 Checklist Unit30
CC 2024B Checklist Controller30
Iu 2023B Radar Graphics Computer30
1.7 License Requirements30
Installation31
General31
Unpacking and Inspecting Equipment31
Equipment Installation31
Cooling Considerations31
Installation Planning31
Art 2000 Dipswitch Settings33
In 182A Color Radar Indicator Installation36
Installation of Cables36
Configuration Procedure Using Radar Indicator37
Rdr Hidden38
Rdr R-T Calibration Data Page38
Efis Maint Functions39
Configuration Procedure Using Efis40
Subsystem Menu40
R-T Calibration Data Page40
Efis 40/50 Maintenance Menus Leading to Radar42
Menus for Operation Configuration43
Menus for Equipment Configuration45
Diagnostics Menus for System Check48
Gain Knob Calibration Function53
Calibration Parameters in Azimuth Count Field53
Tilt Knob Calibration Function54
Pitch Gain58
Pitch Offset58
Roll Gain59
Stabilization Calibration60
Roll Offset63
Menus for Stabilization Calibration64
Ref Gain Adjust64
Ahrs Pitch Offset67
Ahrs Roll Offset67
Pre-Flight Test Procedures68
Rf Operation Check68
Save Configuration68
Interference Check69
Preflight Check69
Flight Test Procedures70
Stabilization Check70
Vertical Profile Check71
Crimp Tools75
Art 2000 Pinout Diagram76
In 182A Pinout Diagram78
Configuration Module Pinout Diagram80
Art 2000 Outline and Mounting Drawing (Horizontally Polarized Antenna)81
Art 2000 Outline and Mounting Drawing (Vertically Polarized Antenna)82
Aircraft Power and Ground Interconnect89
Configuration Module Interconnect90
Single Rds Indicator Interconnect91
Art Interface93
Analog Stabilization Interconnect94
Ahrs Stabilization Interconnect98
Efis 40/50 Interconnect99
Efis 40/50 Interconnect100
Rs 181A/811A to Art 2000 Harness Connector105
Controls and Display107
In182A Controls and Display107
In 182A Control Functions109
Art 2000 Fault Codes110
In 182A Function Selector Switch Positions110
Operating Procedures111
Pushbutton Types111
Typical Test Pattern Display113
