Honeywell BENDIX/KING RDR 2000 User Manual

BENDIX/KING RDR 2000
Page 2-48 00643I05.TDC Rev 7, July/2002

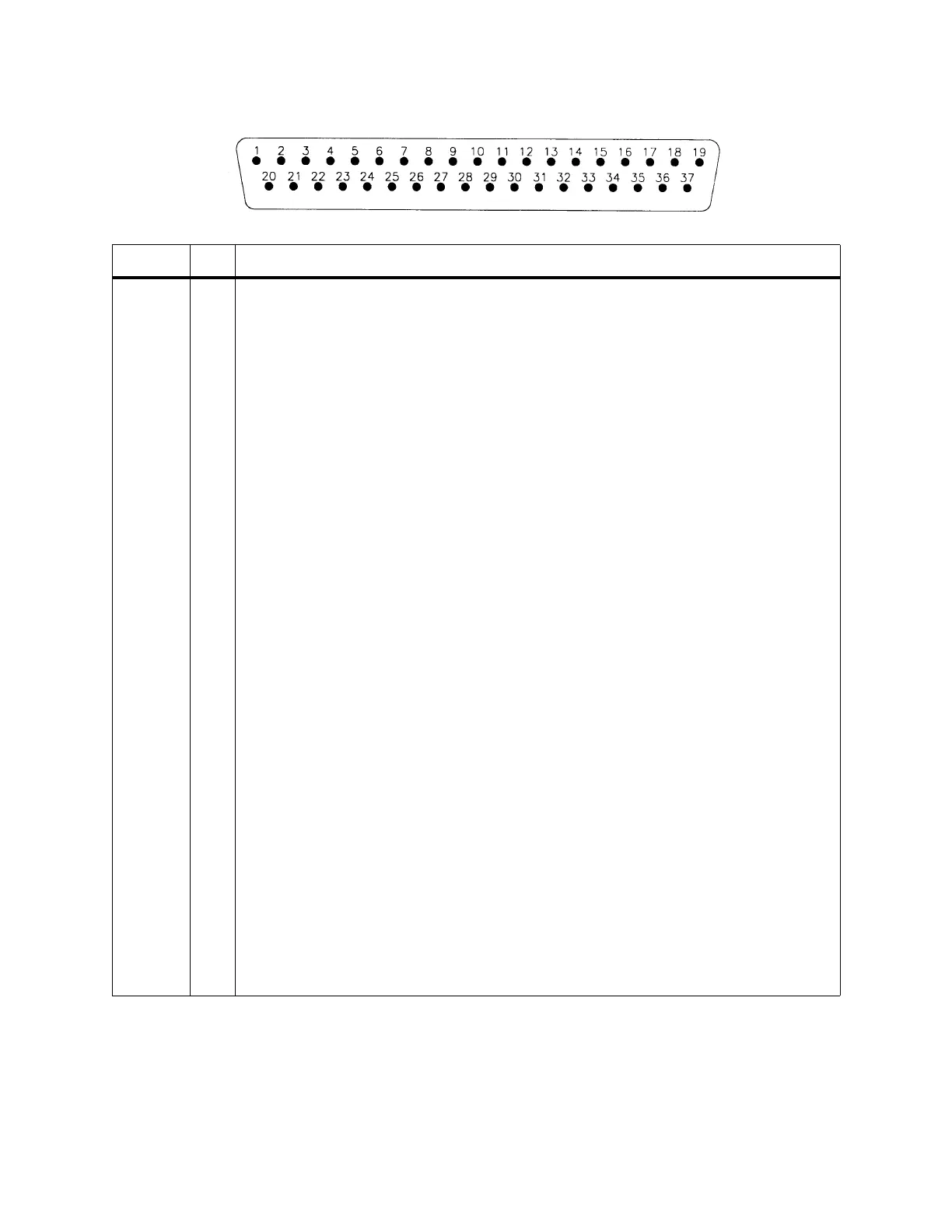

FIGURE 2-27 IN 182A PINOUT DIAGRAM
P2001 I/O SIGNAL NAME
1 I 453 DATA IN (A)
2 O 429 CONTROL BUS 1B
3 I EXT DRIVE CONTROL INPUT, BLUE CNT -
4 I EXT DRIVE INPUT, RED -
5 I EXT DRIVE CONTROL INPUT, BLUE CNT +
6 I EXT DRIVE INPUT, RED +
7 I EXT DRIVE INPUT, GREEN +
8 I IND STRAP
9 MAINT. (FOR FACTORY USE ONLY)
10 I EXT DRIVE CONTROL INPUT, GREEN CNT -
11 I +5 VAC LIGHTING
12 I +14 VDC LIGHTING
13 I CHECKLIST
14 I IU DATA
15 I IU CLOCK
16 POWER GROUND
17 POWER GROUND
18 I SB BUFF
19 I +28 VDC POWER IN
20 I 453 DATA IN (B)
21 I EXT DRIVE INPUT, BLUE -
22 I EXT DRIVE CONTROL INPUT, RED CNT -
