BENDIX/KING RDR 2000
Page 2-10 00643I05.TDC Rev 7, July/2002

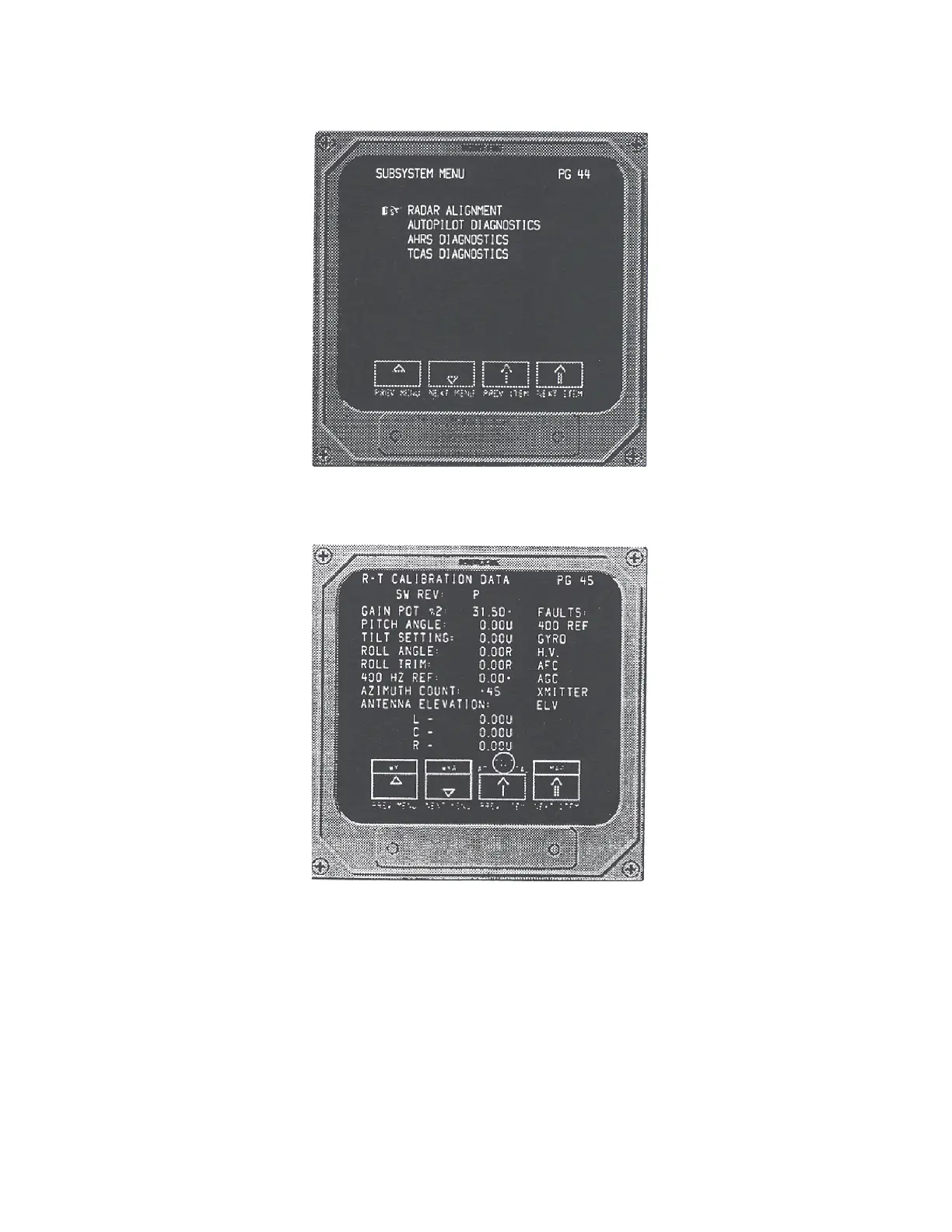

FIGURE 2-4 SUBSYSTEM MENU
FIGURE 2-5 R-T CALIBRATION DATA PAGE
2.4.3 CONFIGURATION PROCEDURE USING EFIS 40/50 (Software 09 or higher)
If the Radar Indicator (IN-182/812) is part of an EFIS/RADAR System, it is recommended to follow
the procedure in Section 2.4.3.
Menus and menu items not discussed in the following procedures are not needed for installation
and setup and will not be addressed in this installation manual. To access the ASCII text pages
pertaining to the radar system configuration, perform the following procedure. The buttons re-
ferred to in this procedure are found on the EFIS control panel or on the EHSI if no control panel
is installed.
