Honeywell BENDIX/KING RDR 2000 - Configuration Module Pinout Diagram

BENDIX/KING RDR 2000
Page 2-50 00643I05.TDC Rev 7, July/2002

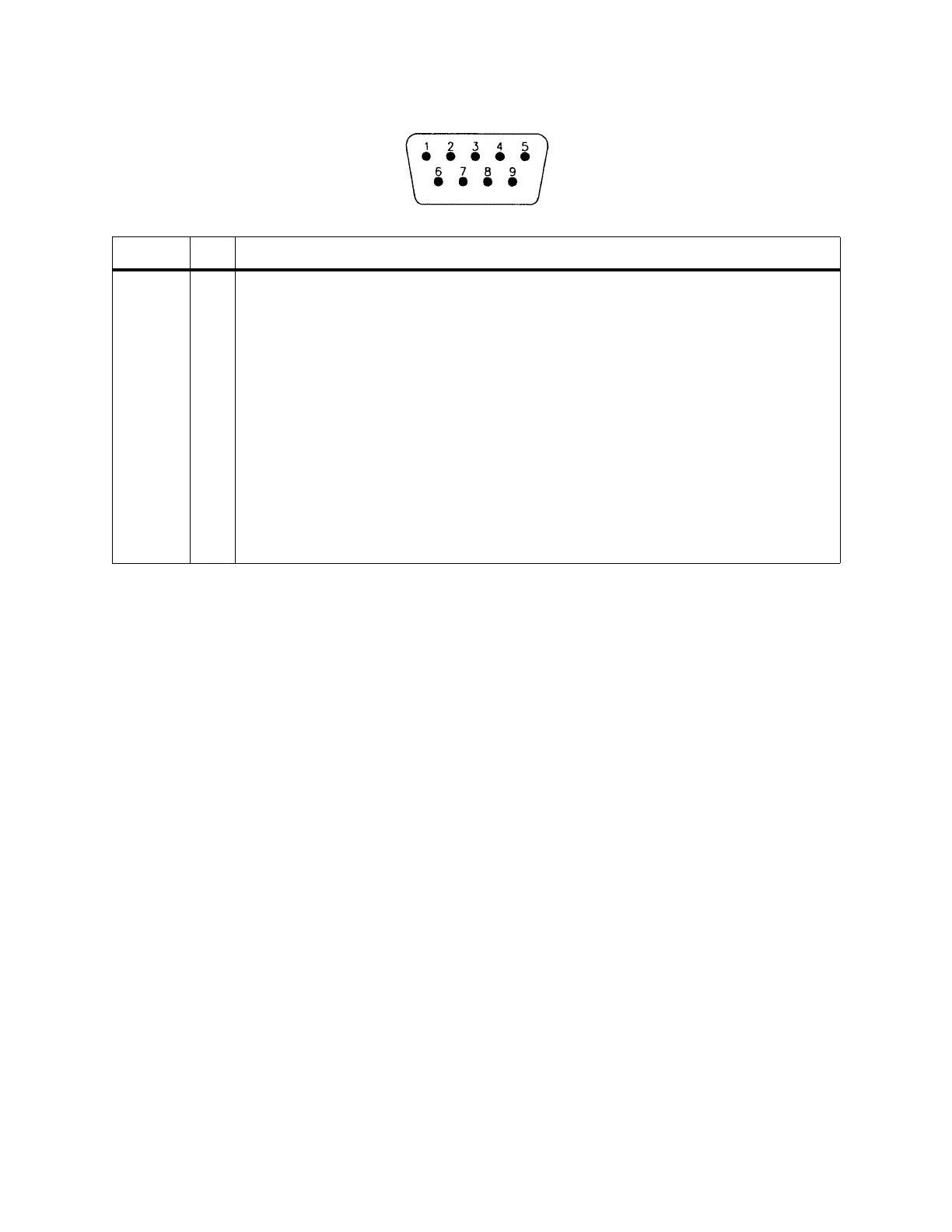

FIGURE 2-28 CONFIGURATION MODULE PINOUT DIAGRAM
P101 I/O SIGNAL NAME
1 POWER GROUND
2 I CHIP SELECT 1
3 NO CONNECTION
4O DATA OUT
5 I +5 VDC POWER
6I CLOCK
7 NO CONNECTION
8I DATA IN
9 I CHIP SELECT 2
