BENDIX/KING RDR 2000
Page 2-38 00643I05.TDC Rev 7, July/2002

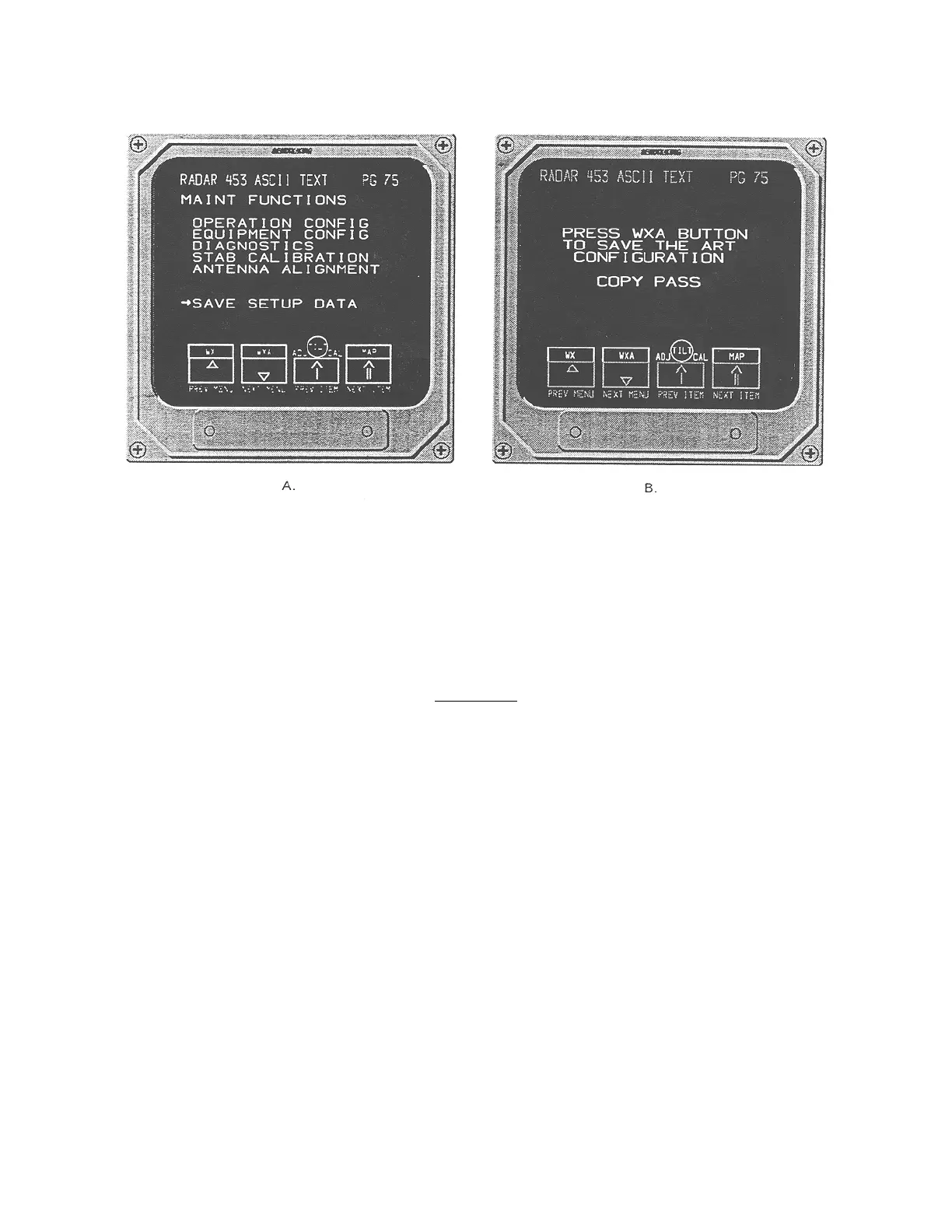

FIGURE 2-20 SAVE CONFIGURATION
2.5 PRE-FLIGHT TEST PROCEDURES
2.5.1 RF OPERATION CHECK
WARNING
WHENEVER THE FUNCTION SWITCH IS IN THE
"ON" POSITION, RF ENERGY IS BEING RADIAT-
ED. DO NOT ALLOW PERSONNEL TO STAND
WITHIN 15 FEET OF THE AREA BEING SCANNED
BY THE ANTENNA. TESTS INVOLVING THE RA-
DIATION OF RF ENERGY MUST NOT BE MADE IN
THE VICINITY OF REFUELING OPERATIONS.
ALWAYS USE "TEST" OR "STANDBY" POSI-
TIONS, AS APPLICABLE.
A. Rotate the function switch to the ON position after the system has been in SBY or TST for
at least 60 seconds.
B. Check for target reflections of local weather (if any) by indexing the range to each range
position while tilting the antenna upward above the horizon, using the TILT control.
C. Select each of the range positions. Note that the corresponding range and range mark in-
tervals appear in the alphanumeric area of the display. Note that targets on display (if any)
shift their relative position.
D. Rotate the function switch to SBY (standby).
