Bottom Panel
For details on how to mount the base, see Mounting the Net Base on page 15-7.
Power
The terminal requires 12 Volts DC input for battery charging and power output to the terminal. The power
adapter included with the base, converts the voltage from the AC power source to 12 volts DC. Use only
a UL Listed power supply, which has been qualified by Honeywell with output rated at 12VDC and
5 amps with the device. The operating temperature range is -10° to 50°C (14° to 122°F).
Honeywell recommends that you leave the Net Base connected to its power source at all times, so that it
is always ready to use.
We recommend use of Honeywell peripherals, power cables, and power adapters. Use of any non-Honeywell
peripherals, cables, or power adapters may cause damage not covered by the warranty.
Connecting Power to the Net Base
1. Plug the A/C power cord into the power
adapter.
2. Plug the power cable into the power
connector on the back of the base.
3. Plug the A/C power cord into a
grounded power source.
4. The base is ready to begin charging
terminals.
Charging the Main Battery
The base provides power to the Dolphin terminals and allows charging of the batteries in the terminals.
The battery of each terminal charges in 4 hours for the standard battery or 6 hours for the extended
battery. The intelligent battery charging system incorporated into all Dolphin terminals prevents
overcharging, which means that Dolphin terminals may be stored in the base indefinitely without damage
to the terminals, battery packs, or the base.
For more information about Honeywell battery packs and how to check battery power levels in your
terminal, refer to Power (page 6-27) and Battery (page 3-12).

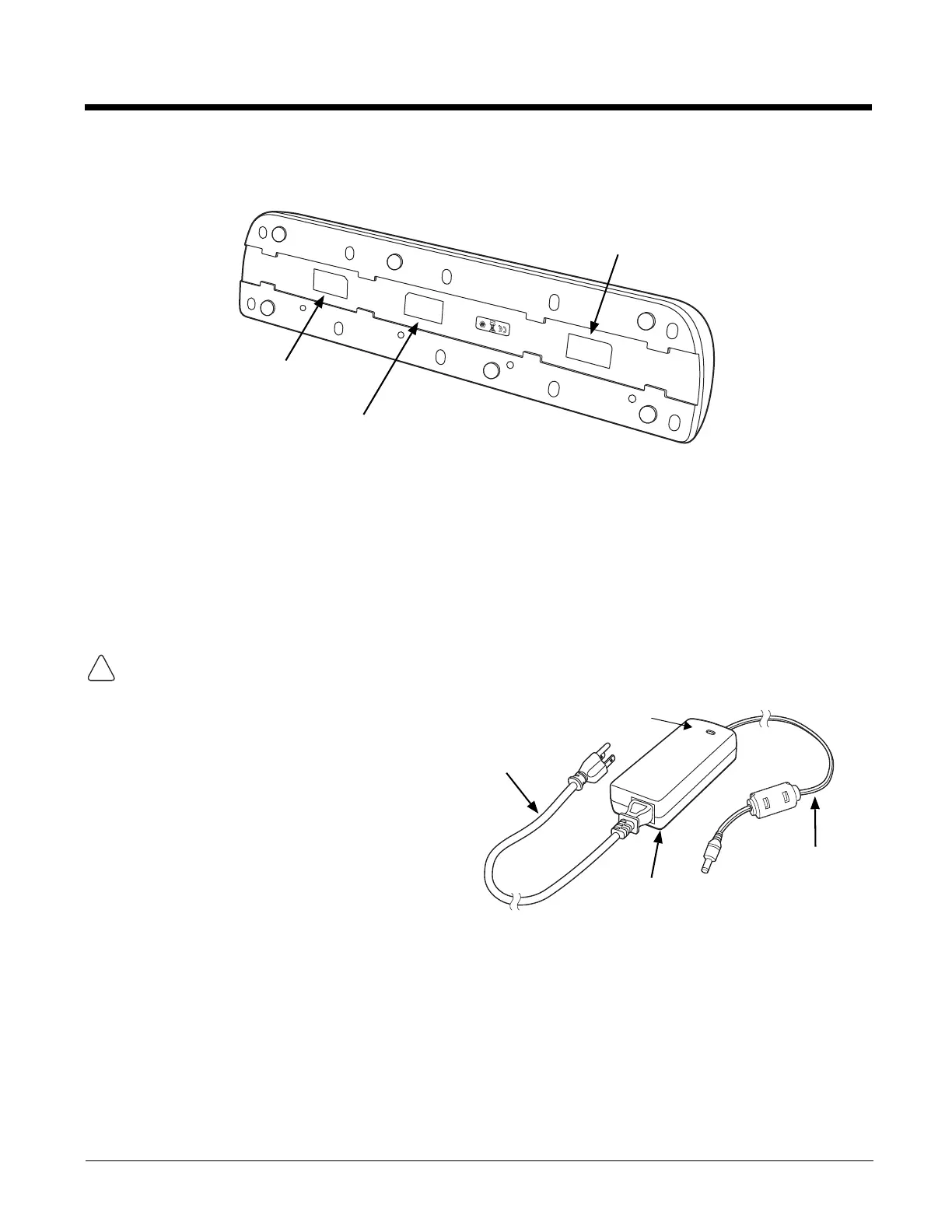

Serial Number Label
Compliance Label
MAC Address Label
Power
Connector
Cable
A/C Power
Cord
Power Adapter
Power LED
