Honeywell Eclipse MS5145 User Manual

7
RS485
1. Turn off the host system.
2. Plug the male 10-pin RJ45 end of the
MVC cable into the 10-pin socket on the
MS5145.
3. Connect the other end of the MVC cable
to Port 9 of the host device.
4. Turn on the host device
See caution on page 4.

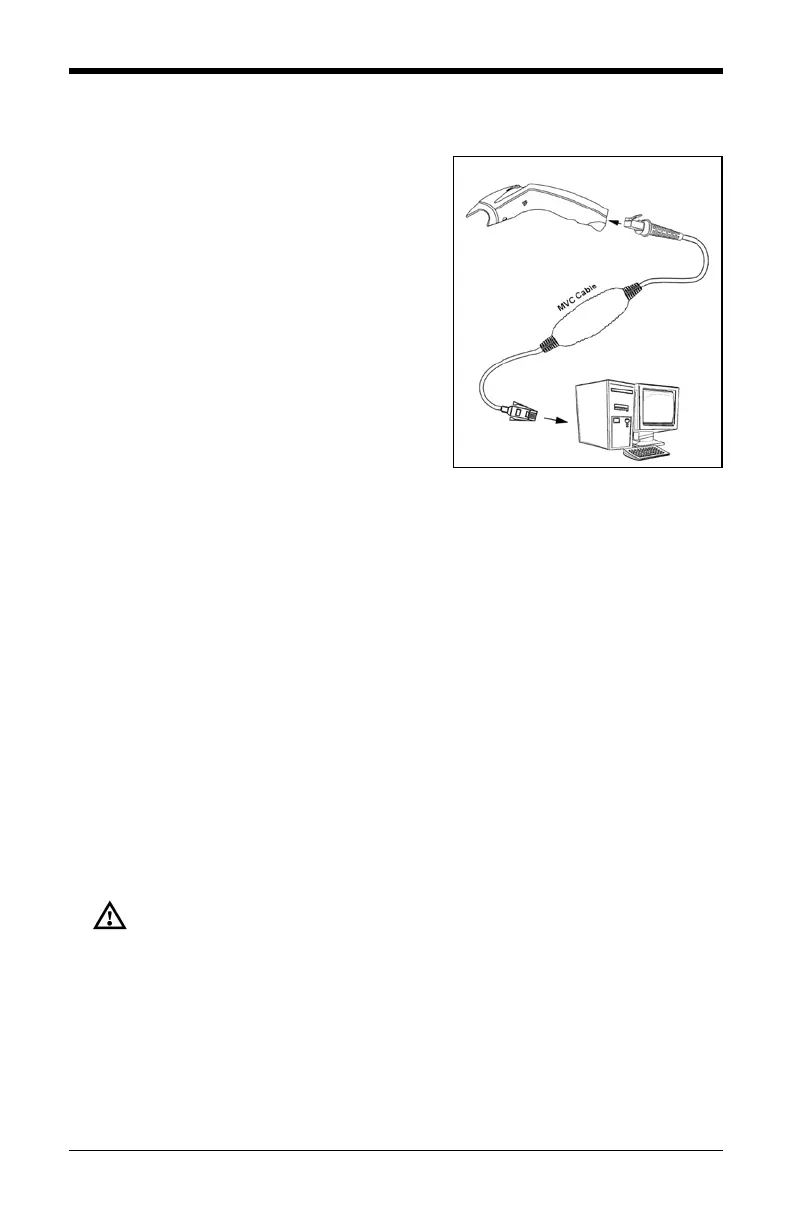

Figure 6. RS485

Honeywell Eclipse MS5145 Specifications

General

Scan Pattern	Single Line
Light Source	650 nm visible laser diode
Scan Speed	72 scan lines per second
Interface	USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
Weight	100 g (3.5 oz)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 60°C (-40°F to 140°F)
Humidity	5% to 95% relative humidity, non-condensing
Drop Resistance	Designed to withstand 1.5 m (5 ft) drops
Scan Rate	72 scan lines per second
Decode Capability	1D barcodes
Electrical Specifications	Input Voltage: 5 VDC ± 0.25 V
Regulatory Compliance	CE, FCC, RoHS
