Honeywell Eclipse MS5145 User Manual

30

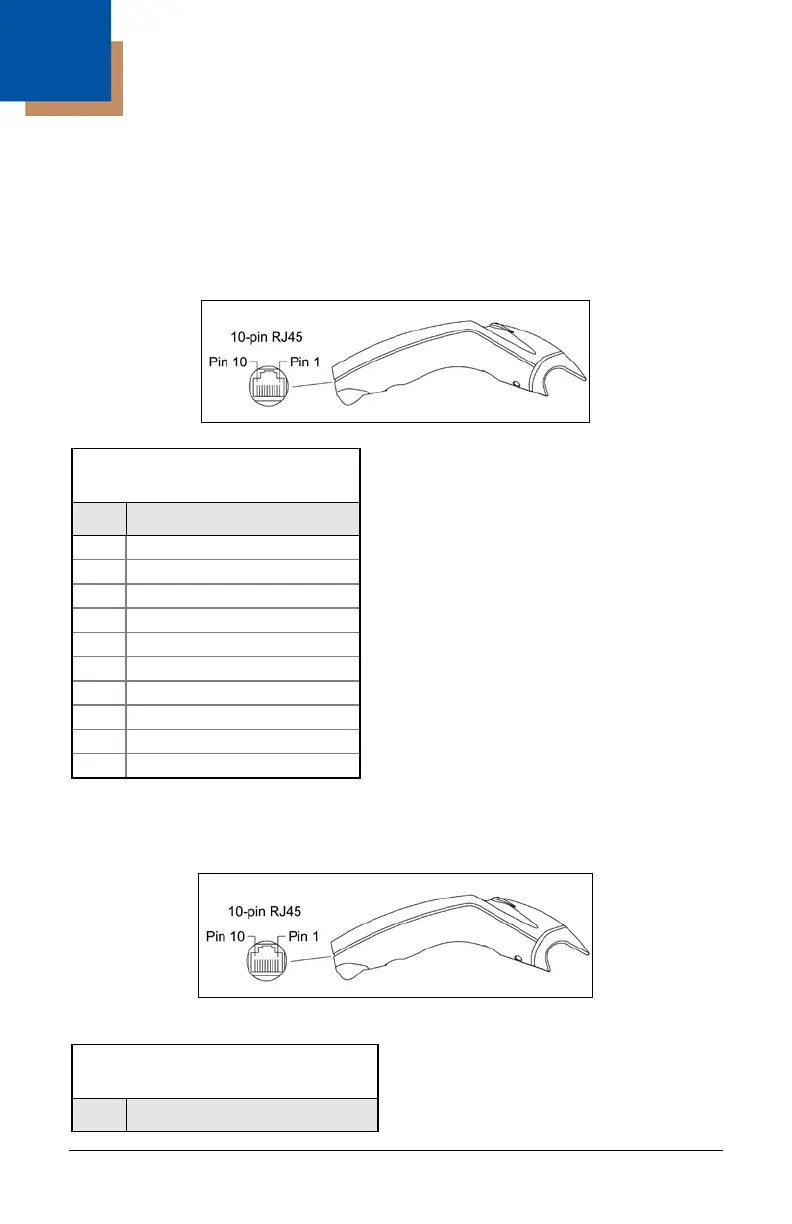

Scanner and Cable Terminations
Scanner Pinout Connections
The MS5145 scanner interfaces terminate to a 10-pin modular jack. The serial
number label indicates the interface enabled when the scanner is shipped from
the factory.
Figure 14.
MS5145-41 RS232
Pin Function
1
Ground
2
RS232 Transmit Output
3
RS232 Receive Input
4
RTS Output
5
CTS Input
6
DTR Input/LTPN Source
7
Reserved
8
LTPN Data
9
+5VDC
10
Shield Ground
Scanner Pinout Connections
Figure 15.
MS5145-00 Laser Emulation
Pin Function

Honeywell Eclipse MS5145 Specifications

General

Scan Pattern	Single Line
Light Source	650 nm visible laser diode
Scan Speed	72 scan lines per second
Interface	USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
Weight	100 g (3.5 oz)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 60°C (-40°F to 140°F)
Humidity	5% to 95% relative humidity, non-condensing
Drop Resistance	Designed to withstand 1.5 m (5 ft) drops
Scan Rate	72 scan lines per second
Decode Capability	1D barcodes
Electrical Specifications	Input Voltage: 5 VDC ± 0.25 V
Regulatory Compliance	CE, FCC, RoHS
