Honeywell Eclipse MS5145 User Manual

12
Scanner Operation
Modes of Operation
CodeGate
®
, Out-of-Stand
 CodeGate activates when removed from the stand
 Bar code data is transmitted when the button is pressed
Manual Activation Mode*, Out-of-Stand
 Button activates laser
 Bar code data is scanned and transmitted while button is held down
CodeGate
Manual Activation Mode*
* This feature is not a default
setting. Refer to the MetroSelect
Configuration Guide for
instructions on enabling the
Manual Activation Mode.

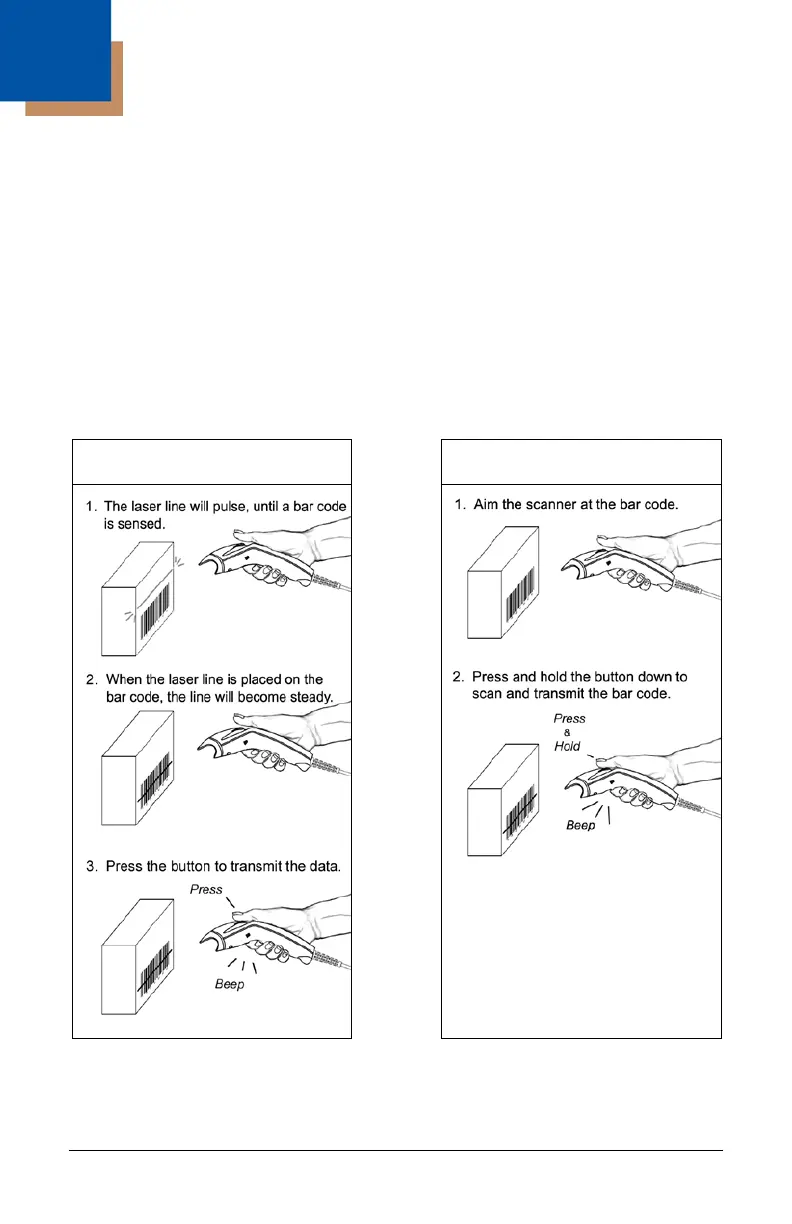

Figure 10. CodeGate Enabled Figure 11. Manual Activation Mode

Honeywell Eclipse MS5145 Specifications

General

Scan Pattern	Single Line
Light Source	650 nm visible laser diode
Scan Speed	72 scan lines per second
Interface	USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
Weight	100 g (3.5 oz)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 60°C (-40°F to 140°F)
Humidity	5% to 95% relative humidity, non-condensing
Drop Resistance	Designed to withstand 1.5 m (5 ft) drops
Scan Rate	72 scan lines per second
Decode Capability	1D barcodes
Electrical Specifications	Input Voltage: 5 VDC ± 0.25 V
Regulatory Compliance	CE, FCC, RoHS
