Cable Installation and Removal
Installation
1. Insert the cable’s modular connector into the socket on the scanner.
2. Pull gently on the cable strain relief to ensure the cable is installed.
Note: If the PowerLink cable is not fully latched, the unit can power
intermittently.

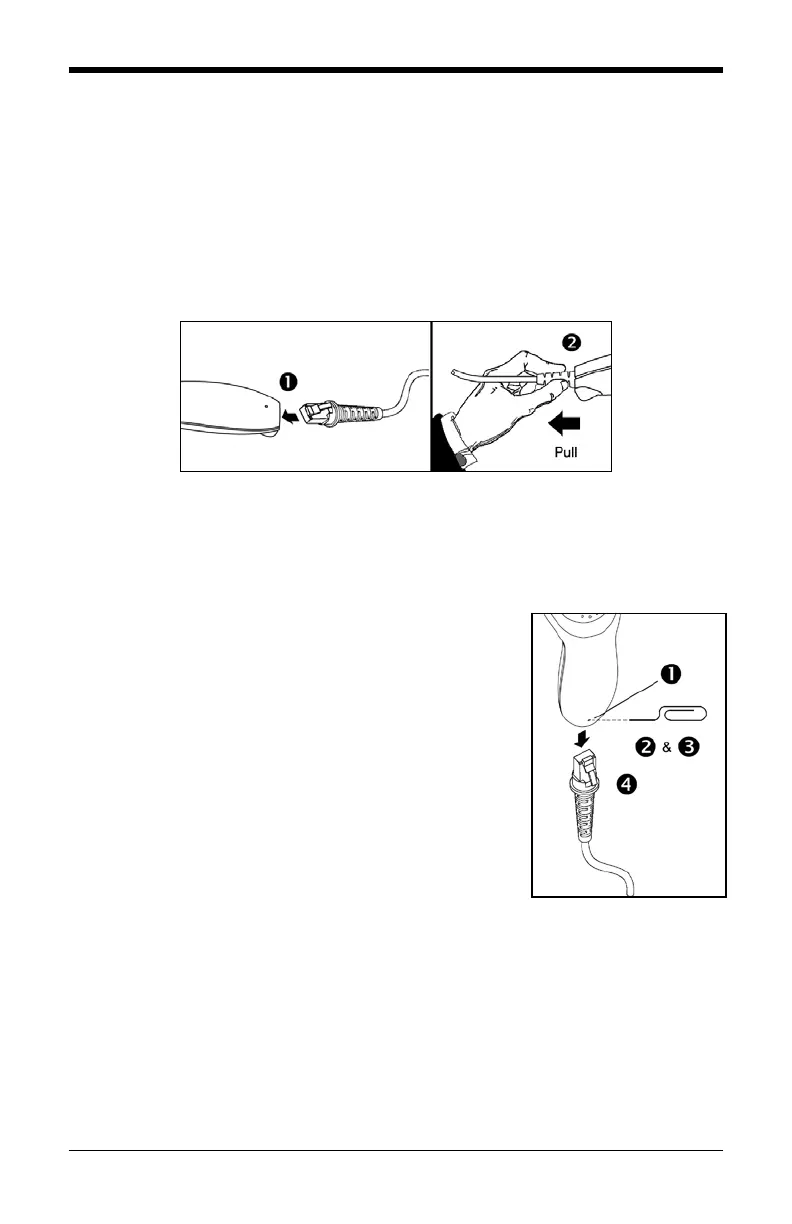

Figure 3.
Removal
Disconnect the power supply from the PowerLink cable and turn off power to the
host system before removing the cable from the scanner.
1. Locate the small ‘pin-hole’ on the front
side of the scanner near the end of the
handle.
2. Bend an ordinary paperclip into the shape
shown.
3. Insert the paperclip (or other small metallic
pin) into the small ‘pin-hole’. There will be
a faint ‘click’ when the connector’s lock
releases.
4. Pull gently on the cable’s strain-relief to
remove the cable.
Figure 4.

Honeywell Eclipse MS5145 Specifications

General

Scan Pattern	Single Line
Light Source	650 nm visible laser diode
Scan Speed	72 scan lines per second
Interface	USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
Weight	100 g (3.5 oz)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 60°C (-40°F to 140°F)
Humidity	5% to 95% relative humidity, non-condensing
Drop Resistance	Designed to withstand 1.5 m (5 ft) drops
Scan Rate	72 scan lines per second
Decode Capability	1D barcodes
Electrical Specifications	Input Voltage: 5 VDC ± 0.25 V
Regulatory Compliance	CE, FCC, RoHS
