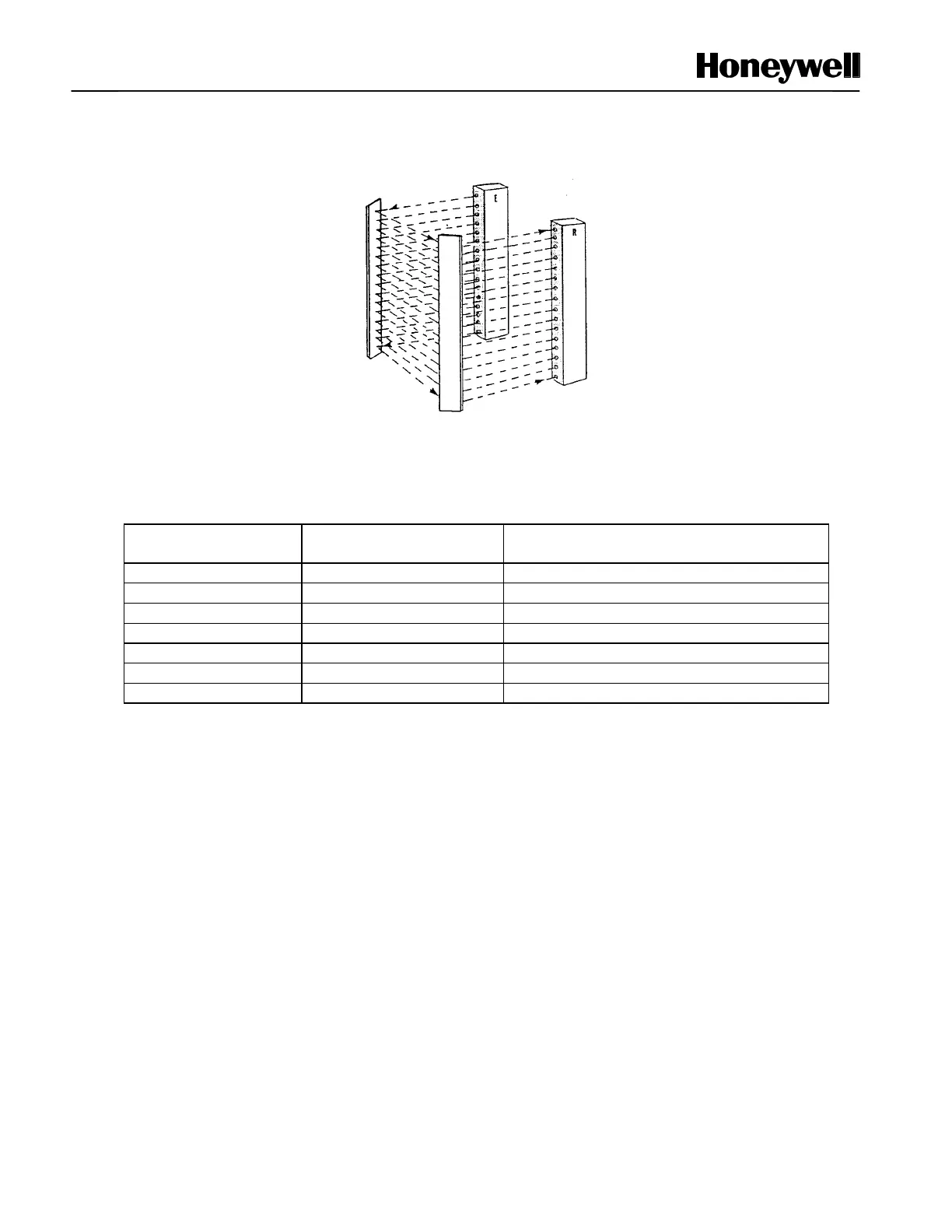

Figure 1-10 illustrates the combination of an emitter, receiver, and two mirrors guarding three sides of a
danger zone.
Figure 1-10 Two Mirrors Used with One FF-SB Light Curtain
The protected height of the light curtain determines which mirrors should be used. Refer to the Mirror Heights
table below for the height of individual mirrors and the protected height they are meant to operate with.
Mirror Heights
Part Listing Use with Protected Height
mm (in.)
Overall Mirror Frame Height w/o brackets
FF-SBSMIR02 200 (7.87) 298 (11.73)
FF-SBSMIR04 400 (15.75) 501 (19.72)
FF-SBSMIR06 600 (23.6) 704 (27.72)
FF-SBSMIR08 800 (31.5) 909 (35.79)
FF-SBSMIR10 1000 (39.37) 1112 (43.78)
FF-SBSMIR12 1200 (47.24) 1315 (51.77)
FF-SBSMIR14 1400 (55.12) 1520 (59.84
Mirrors are shipped with all the necessary mounting hardware and rotatable brackets (see page 35).
