LIGHT CURTAIN DAMAGE
Mount FF-SB Series light curtains with vibration dampening to prevent damage to emitter and receiver units.
Failure to comply with these instructions may result in product damage.
To mount one complete light curtain system, use two mounting bracket sets, one for the emitter and another
for the receiver. The emitter and receiver units may require different types of mounting brackets based on
application requirements. Order mounting accessories (FF-SBZS8000) if the light curtain system is mounted
directly to the machine, custom brackets are used, or replacement mounting accessories are needed.
T-slot Mounting System
The FF-SB Series T-slot mounting design allows bracket placement anywhere along the back of the light
curtain housing (see figure 2-14). The two parallel T-slots are designed to fit the head of an M6-25 bolt.

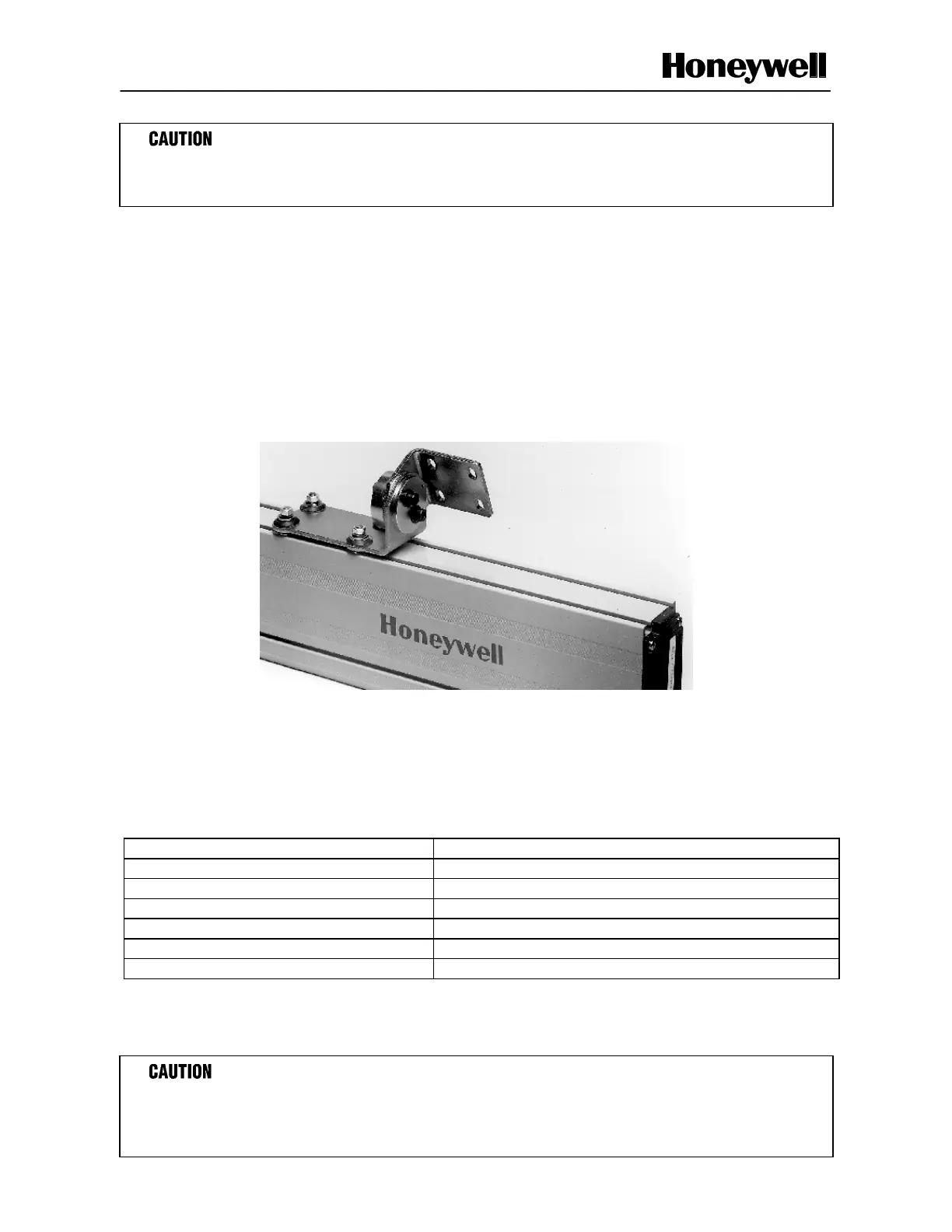

Figure 2-14 T-slots with Rotatable Mounting Bracket
Mounting Accessory Set
The mounting accessory set (FF-SBZS8000) may be used with custom brackets. The accessory set contains
the following hardware:
Mounting Accessory Set FF-SBZS8000
Mounting Hardware Quantity
M6.U Washer 8
H.M6 Nut 8
H.M6-25 Bolt 8
Onduflex ø6 Washer 8
Rubber Vibration Damper (603 155.002) 8
Metal Hub (604 649.001) 8
Figure 2-15 illustrates how the mounting accessories are assembled for direct mounting or mounting with
brackets.
LIGHT CURTAIN/MOUNTING HARDWARE DAMAGE
Carefully install mounting hardware (especially washers, rubber vibration damper and metal hub) to ensure
correct orientation and installation.
Failure to comply with these instructions may result in product damage.
