Installation Guide and Operating Manual
Honeywell 15
The TL-1055 and the TL-2055 are the only Test Lamps that will activate the FSX Detectors..
Additionally, do not use these Test Lamps to activate other Honeywell Analytics Detectors
(nor any other conventional fire and flame detectors). Do not use other Honeywell Analytics
Test Lamps or non-Honeywell Analytics Test Lamps to test the FSX Detectors.

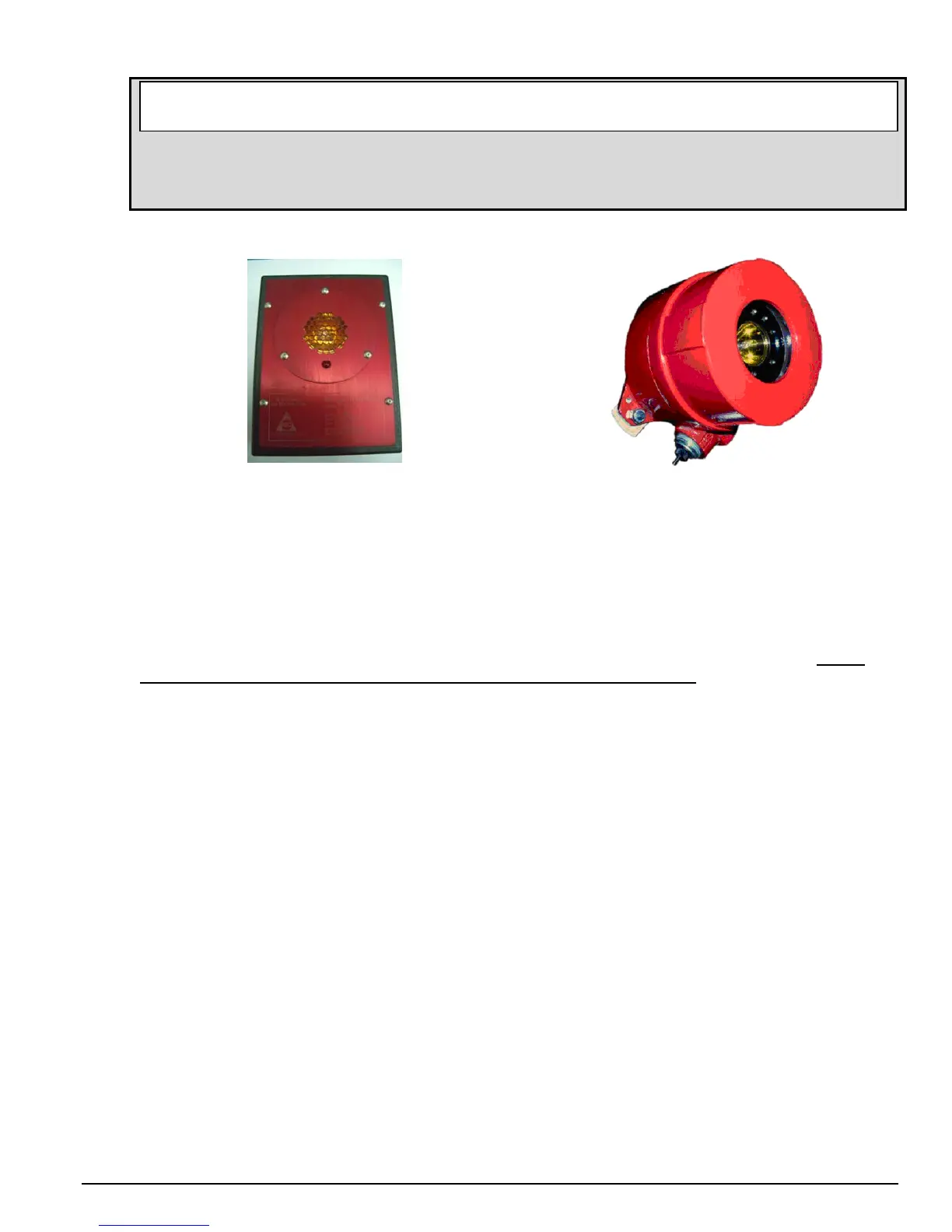

Figure 2-13
TL-1055 Hand Held Test Lamp (NEMA 1)
Figure 2-14
TL-2055 Hand Held Test Lamp for Hazardous Areas
Remember to disable the outputs, as a full functional test includes activating the ALARM outputs. A
Honeywell Analytics Test Lamp must be used for this test (Section 4.4). Point the Test Lamp directly at the
front of the Detector (on axis as much as possible, within a distance of about 1 to 25 feet). Activate the Test
Lamp by pressing and holding its pushbutton. While watching the red ALARM LED on the face of the
Detector, slowly move the Test Lamp’s boresight to ensure the Detector receives its full intensity. (
UNOTE:
Practicing this technique may help to optimize testing of the FSX DetectorsU). (Sections 3.6 and 4.4).
The Detector’s red ALARM LED will illuminate, usually within three (3) to ten (10) seconds. Also, the ALARM
Relay outputs will activate and the 4-20 mA analog output will change to 20 mA (±0.6 mA).
If the Detector fails to respond within ten (10) seconds, do the following:
1. Wait ten (10) to twenty (20) seconds before performing another test.
2. Check the Distance: verify that the testing distance is between one (1) and twenty-five (25) feet
from the FSX Detector(s).
3. Check Aiming Accuracy: verify that the proper testing technique (as described above) is
followed.
WARNING: Use test lamp model TL-1055 in non-hazardous locations only! For hazardous
locations, use model TL-2055, as described below.
