SECTION 2: INSTALLATION
2.1 Mounting Instructions
Consider the following guidelines when selecting Detector location:
1. As with all flame and fire Detectors, avoid areas that contain radiant energy sources (such as radiant
heaters, high intensity lamps, flare-stacks, etc.) in close proximity to the Detector’s field of view.
2. The installation shall take into account that the FS24X orientation should be with the base horizontal
(see Figure 2-1) as the view angle in this direction is 90°. The vertical angle is 90°.

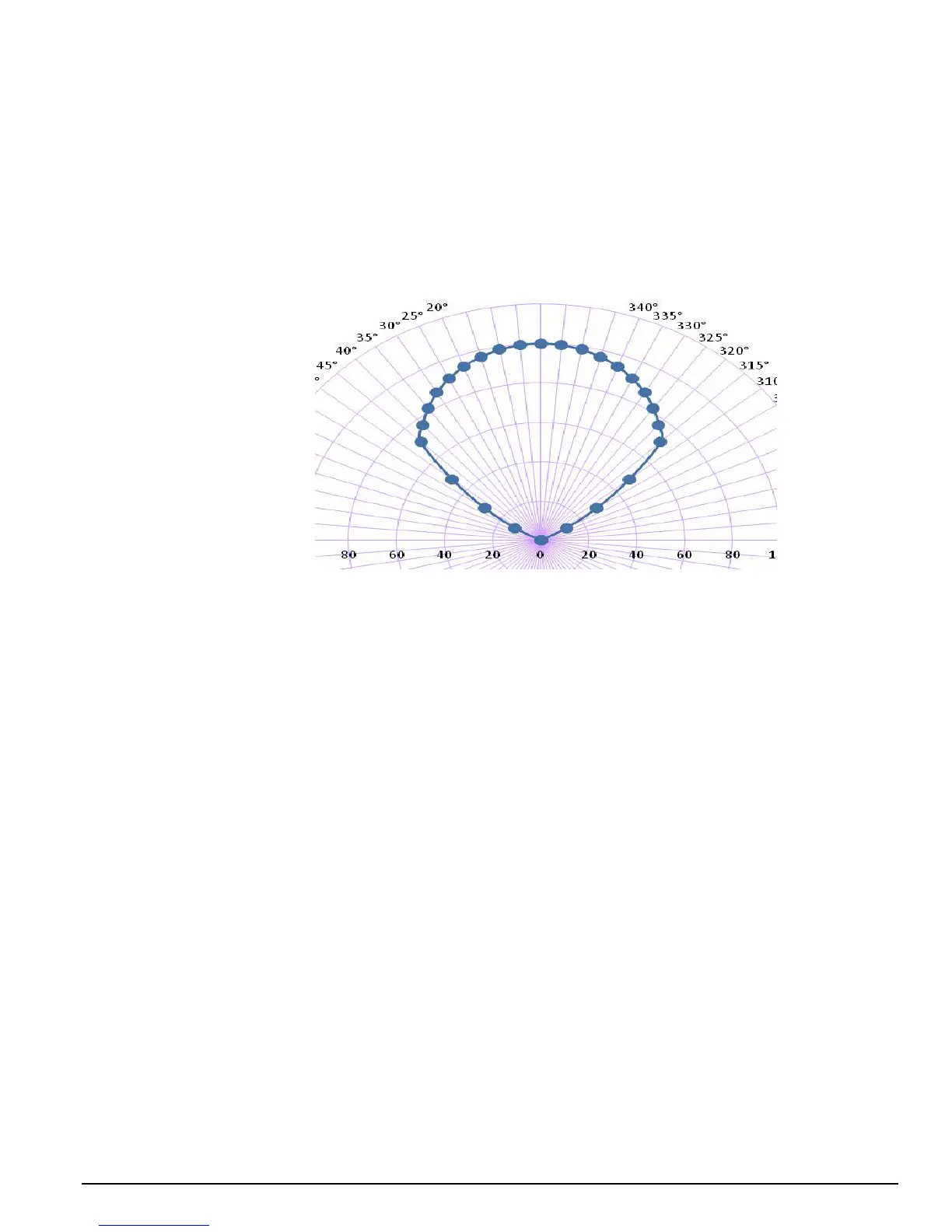

Horizontal Field of View
Figure 2-1
FS24X Graphical View
3. Detectors should not be mounted so that they look up or face the horizon (especially outdoors). Use
a minimum thirty degrees (30°) downward angle with the SM4 swivel mount (see Figure 2-1).
4. Make sure the Detector has a clear, unobstructed view of the threat area. Physical obstructions
between a fire and the Detector may cause the fire to be undetected.
5. The Model SM4 is a 316 Stainless Steel Swivel Mount designed for the Honeywell Analytics Detector
housing. The adapter plate, with the two (2) screw holes (facing away), is attached to the base of the
Detector (see Figure 2-1). The mounting plate, with the four (4) screw holes (facing towards), is used
for mounting the SM4 to a solid surface. Each adjustment increment along an axis is calibrated to
10°. For single axis adjustments, the center section need not be installed.
6. Avoid mounting the Detectors in areas where temperatures exceeds the specified operating
temperature range (see Sections 1.2.3 & 1.2.5).
7. Detector Conduit Entries
a) If only one conduit entry is used, correctly install and seal the conduit plug on the unused entry,
¾ in. NPT or 25mm (see Figure 2-3).
b) Install an approved conduit trap or drain, if required to meet hazardous area classifications per
NFPA 70: National Electrical Code, latest revision.
