Honeywell HCC80R - Installing the underfloor heating controller

HCE80(R) / HCC80(R) Mounting and operation
9

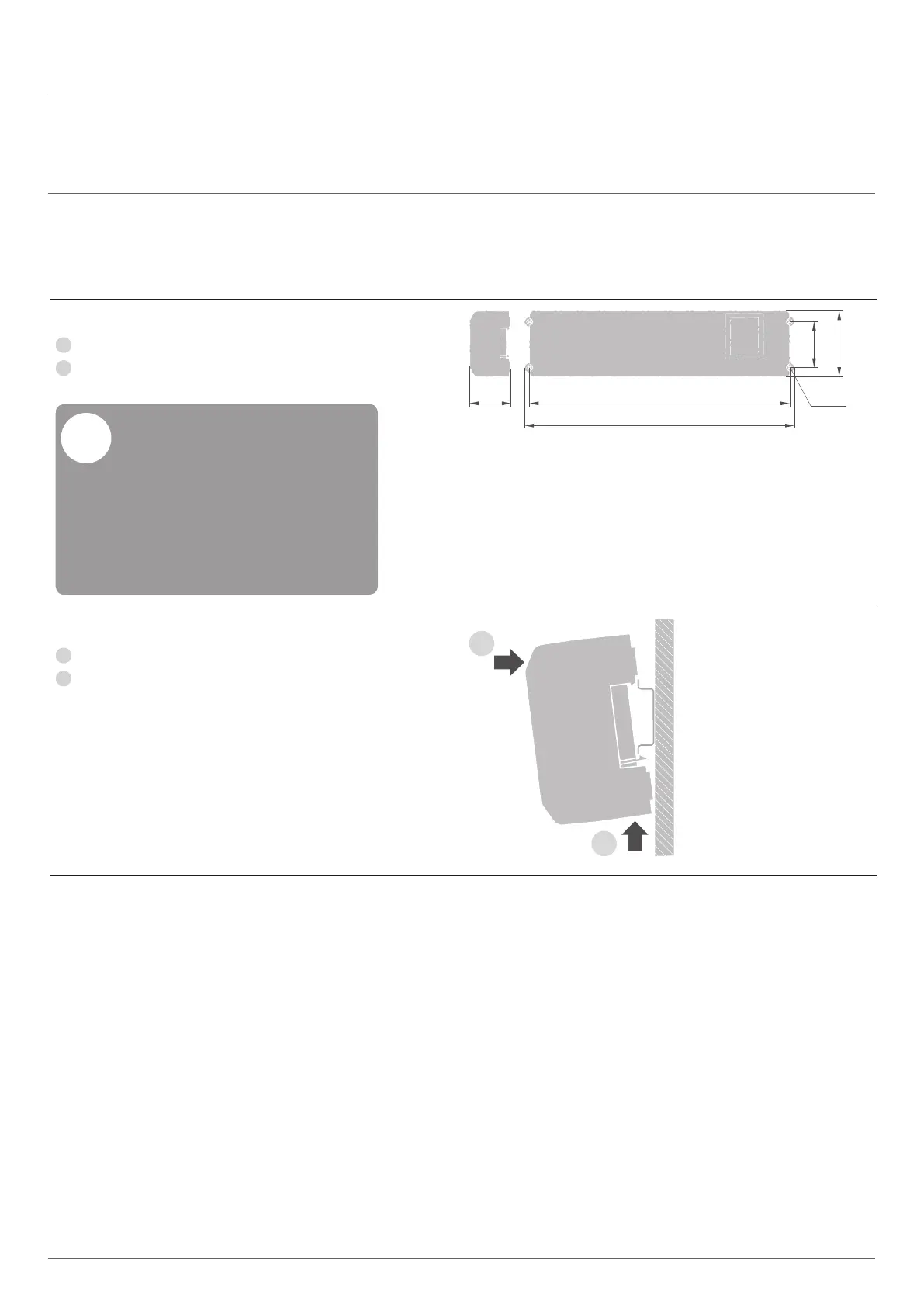

The underfloor heating controller can be installed within or outside the distributor box.
4 4.2-mm holes for installation are located on the underfloor heating controller.
Wall installation
1
Mark, drill and insert plugs into fastening holes.
2
Screw on the underfloor heating controller.
Take the 52 mm installation
height of the underoor heating
controller into account!
If the underoor heating controller is
installed upright on edge, the transformer
must be on top to ensure ventilation.
!
57
337
85
349.5
52. 0
Æ 4.2
DIN rail installation
1
Place the housing on the DIN rail from below (1).
2
Press the housing upwards until
it snaps into place(2).
2
1
Installing the underfloor heating controller
