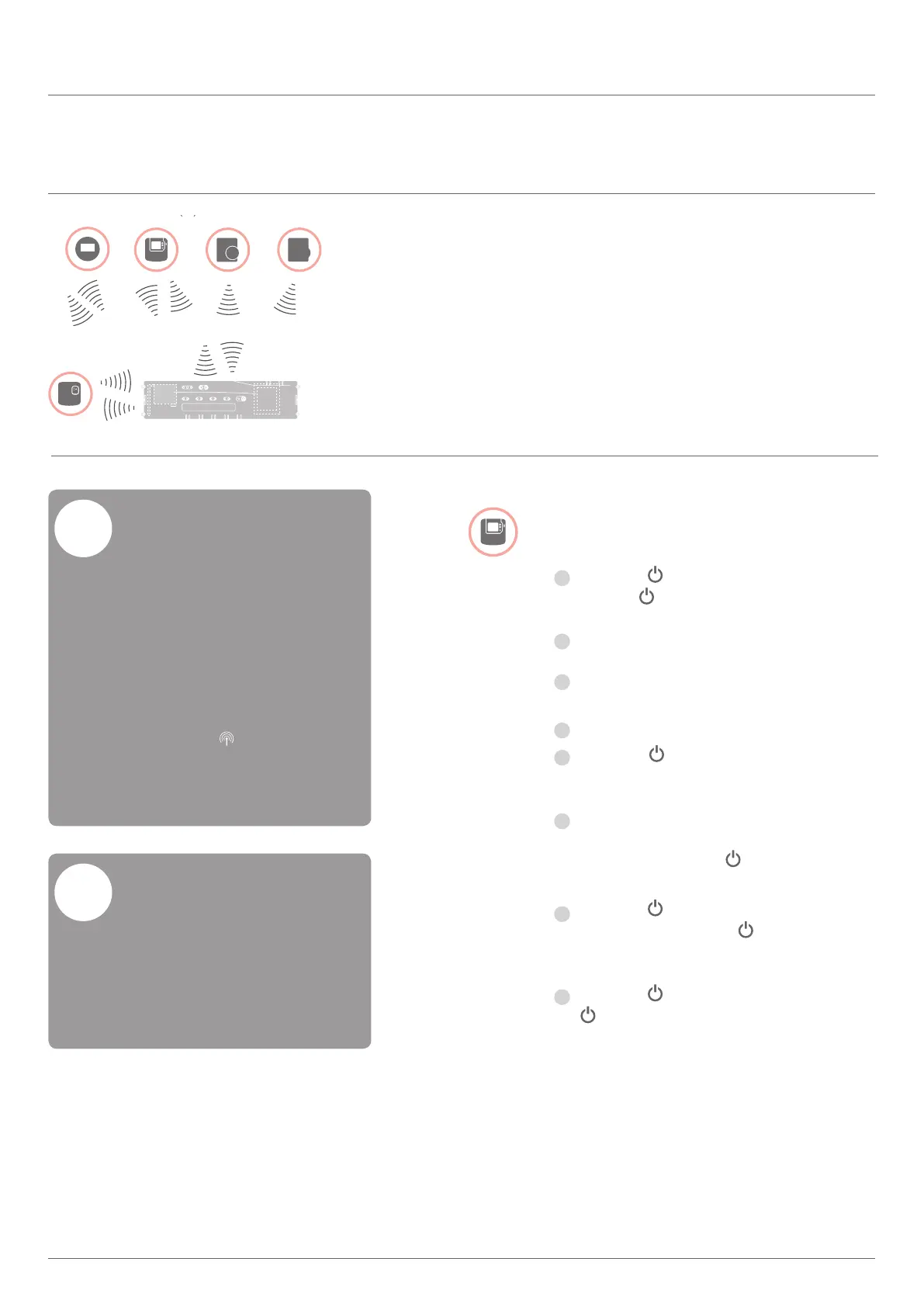

Connecting devices (binding)
18
DTS92A(E) HCF82HCW82
Option
T87 RF
The following section describes how
you can assign (bind) the various
components of a temperature zone.
Only one room setpoint generator/sensor
can be assigned to a temperature zone.
If a room temperature sensor HCF82
is combined with a room setpoint
generator HCW82 or DTS92/T87RF,
i.e. assigned to the same zone, rst
assign the room setpoint generator and
then the room temperature sensor.
If the installation button
at the
underoor heating controller is not
pressed for longer than 4 minutes, the
underoor heating controller returns
automatically to normal mode.
!
Without a time program the underoor
heating controller operates with a
basic value of 20°C (heating mode)
or 26°C (cooling mode). Please
refer to Page 22 for information
about checking the conguration.
!
Setting the parameter SU at the room thermostat DTS92
The parameter SU:2 has to be set so that
the room thermostat DTS92 can be assigned
directly to the underfloor heating controller.
1
Keep the
button at the DTS92 pressed
until the symbol is displayed in the
bottom right-hand corner of the display.
2
Keep the
▲
and
▼
buttons pressed
simultaneously until INst is displayed.
3
Press the
▲
button.
Ot is displayed.
14
Press the
▲
button until Su is displayed.
5
Press the button.
The current setting of the
parameter SU flashes.
6
If applicable, use the
▲
and
▼
buttons to select the setting "2"
and confirm with the button.
The parameter SU flashes.
7
Keep the button pressed until
flashing stops and the symbol
is displayed in the bottom right-
hand corner of the display.
8
Keep the button pressed until the
symbol disappears in the bottom
right-hand corner of the display.
The DTS92 is back in normal mode.
Binding the underfloor heating controller without time program
