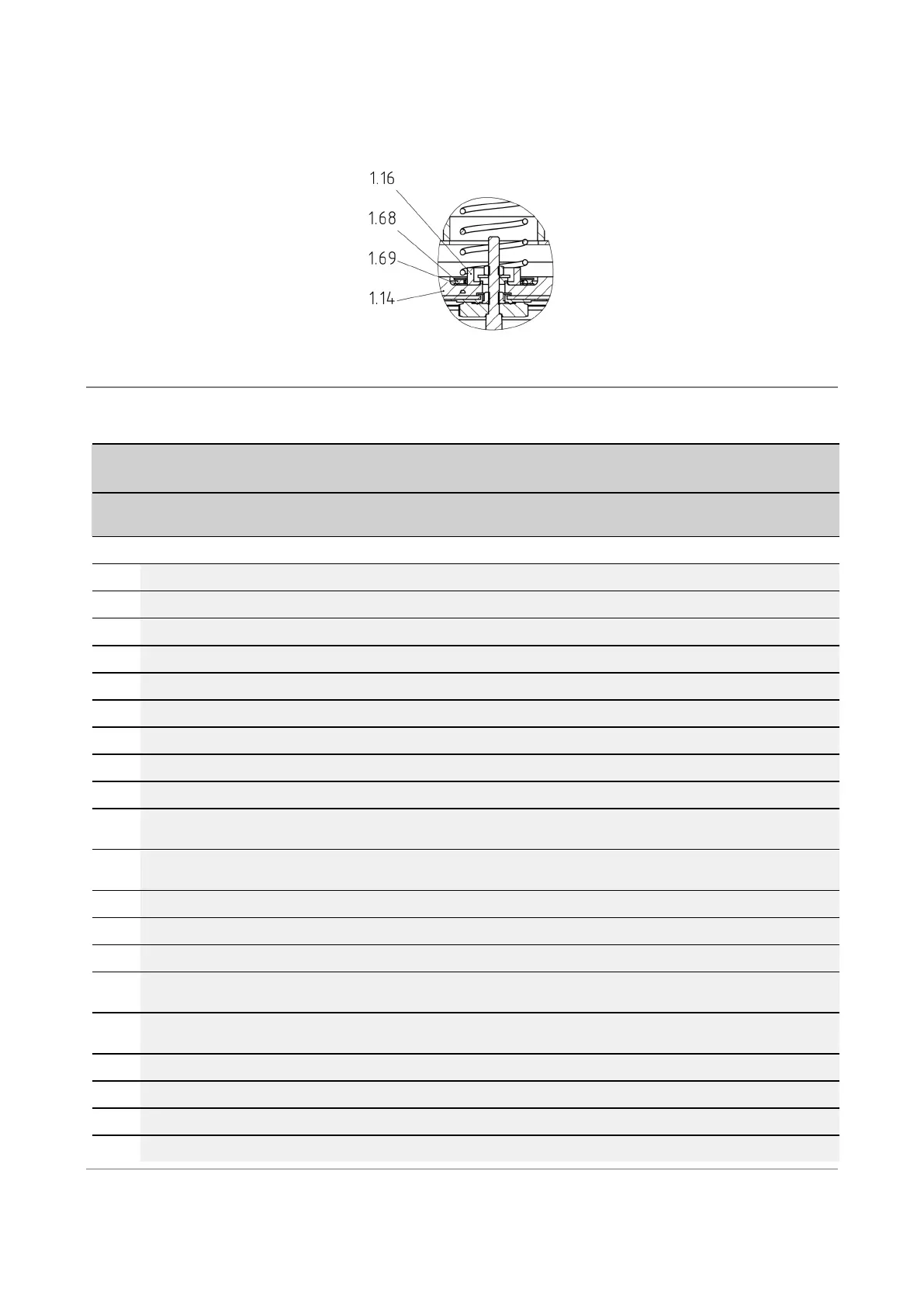

Honeywell HON 673 - Page 70

Appendix
HON 380 gas pressure regulator with HON 673/674 controller 70
Version for 300 - 1000 mbar
Spare parts kits for HON 380 with RE1 DN 25 - DN 50
Series 380 spare parts kits - PN16/CL150
Part no.
NBR version (standard)
No. Name Qty. DN 25 DN 50
(20 - 50 mbar)
DN 50
(50 - 1000 mbar)
Spare parts kit no.
K380-001 K380-005 K380-017
4.71 O-ring 2-144 W2.62 D 63.17
1 20513-RMK
1.71 Diaphragm
1 10003606
1.73 Closure gasket
1 10003640
1.74 Rubber slotted disc
1 10003607
5.71 O-ring 2-117 W2.62 D20.29
1 20383
5.72 O-ring 5-6112 W1.78 D8.74
1 20341
5.73 O-ring 2-144 W2.62 D 63.17
1 - 20513-RMK
5.83 O-ring W 3.00 D 36.20
1 20434-RMK - -
5.74 O-ring 2-149 W2.62 D71.12
1 20308-RMK
5.75 Compensating diaphragm, valve
seat 50
1 - 15026002
5.85
Compensating diaphragm, valve
seat 25
1 15025011 - -
5.76 Quad ring 12.37x2.62
1 103844-RMK
5.56 Grommet nut, M8
1 13136
5.77 O-ring 2-157 W3.53 D50.39
1 20325
5.2 Valve plate DN 50
(pd= 20 - 50 mbar)
1 - 10032757 -
5.2
Valve plate DN 50 chamfer
(pd= 50 - 1000 mbar)
1 - - 10032929
5.2 Valve plate DN 25
1 10032756 - -
5.52 Plain bearing G1FM-1214-12
2 103843-RMK
5.53 Locking ring DIN472 - 21 x 1
2 103845-RMK
1.53 Gasket A8 X 11.5
4 18710-RMK
