HPF24S Series Power Supplies —
P/N 52751:D3 5/11/2010
Installation
Backbox Mounting

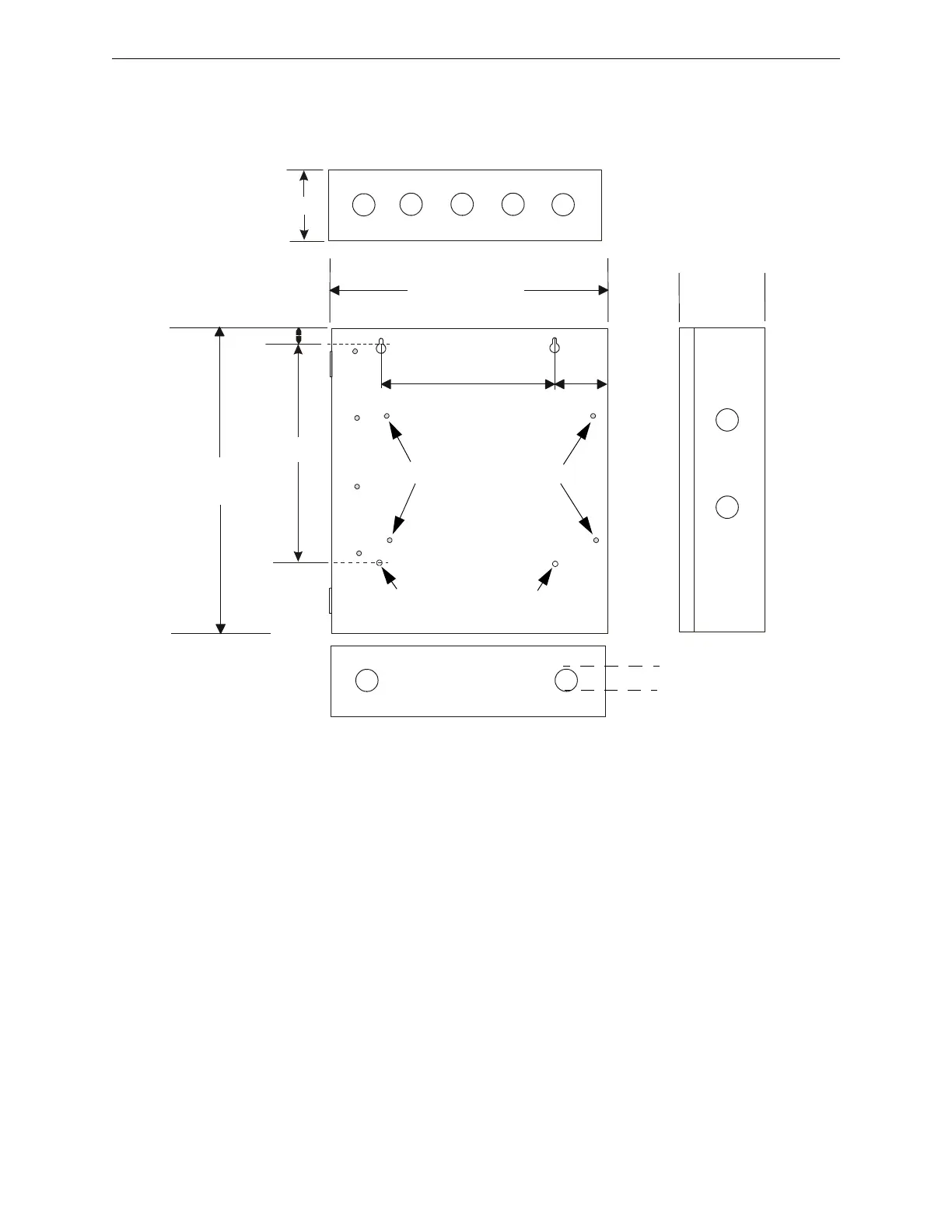

Figure 2.2 Backbox Mounting
Dimensions
Bottom
Height=15.00”
(38.10 cm)
10.625”
(26.99 cm)
0.75”
(1.9 cm)
2.875” (7.3 cm)
Backbox = 14.5”
(36.8 cm)
Depth = 3.050”
(7.75 cm)
Top
9.1” (23.1 cm)
2.7”
(6.86cm)
1.125” (2.868 cm)
Mounting Plate Pem Studs
Backbox Mounting Holes
rcpscabb.wmf
15
17
Table of Contents
Default Chapter
3
Fcc Warning
3
Installation Precautions
3
Table of Contents
5
Section 1: System Overview
9
General
9
Features
9
Start-Up Procedure
10
Jumpers
11
1: Jumper JP1 - Ground Fault Detection
11
2: Jumpers JP2 and JP3: Coded/Noncoded Input Selection
11
LED Indicators
11
Specifications
11
Primary AC Power - TB1
11
Control Input Circuits: TB4, Terminals 3 (+) & 4 (-) and 7 (+) & 8 (-)
12
Nac/Output Circuits: TB2, Terminals 1 (+) & 2 (-), 3 (+) & 4 (-), 5 (+) & 6 (-) and 7 (+) & 8 (-) Alarm
12
Polarity
12
Trouble Relay Contact Rating: TB5
12
Secondary Power (Battery) Charging Circuit: JP4
12
Special Application Auxiliary Power Output: TB4 Terminals 9 (+) & 10 (-)
12
General
14
Section 2: Installation
15
Backbox Mounting
15
NAC Circuit Wiring
17
1: Style y (Class B)
17
2: ZNAC-4 Class a Option Module
17
Addressable Module Mounting
18
NEC Power-Limited Wiring Requirements
19
Section 3: Programming Options
20
DIP Switch Settings
21
Programmable Features Description
22
1: Synchronization Type Selection
22
Maximum Number of Strobes for Synchronization
22
2: Synchronization Mode - Master/Slave
22
3: AC Fail Delay/Aux. Trouble Relay Function
23
4: Input/Output Function
23
Special Application Auxiliary Power Control
24
5: Charger Enable/Disable
24
6: Door Closers
24
Section 4: Trouble Supervision
25
Supervision Via FACP Notification Appliance Circuit
25
1: Supervision of FACP to HPF24S Wiring
25
2: Supervision of HPF24S Faults
25
3: Aux.trouble Relay/Ac Fail Relay
25
AC Loss Reporting Delay
26
Section 5: Applications
28
Controlling Four Nacs with One Input and Selective Silence
28
Controlling Three Nacs and One Door Holder with One Input
30
Split Temporal Mode of Operation
32
Remote Supply with Resettable and Nonresettable Power
33
Master FACP with Slave HPF24S Power Supply
35
Master HPF24S Power Supply Connected to FACP
36
Canadian Applications
37
Section 6: Power Supply Requirements
38
Overview
38
1: Overview
38
Calculating the AC Branch Circuit
38
Calculating the System Current Draw
38
2: How to Calculate System Current Draw
39
Calculating the Battery Size
40
1: NFPA Battery Requirements
41
2: Selecting and Locating Batteries
41
Appendix A: Wire Requirements
42
A.1: HPF24S Device Compatibility
43
A.1.1: System Sensor - 24VDC
43
System Sensor Spectralert Advance
43
System Sensor Spectralert Advance Speakers
44
A.1.2: Gentex - 24VDC
44
A.1.3: Cooper-Wheelock - 24VDC
45
A.1.4: Notification Appliances for Canadian Applications
46
System Sensor
46
Gentex
46
Cooper-Wheelock
47
Index
48
Other manuals for Honeywell HPF24S8
Installation Guide
48 pages
Product Installation Document
3 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Honeywell HPF24S8 and is the answer not in the manual?
Ask a question
Honeywell HPF24S8 Specifications
General
Brand
Honeywell
Model
HPF24S8
Category
Power Supply
Language
English
Related product manuals
Honeywell HPF24S6
48 pages
Honeywell HPF-PS6
52 pages
Honeywell HPF-PS6E
52 pages
Honeywell HPF-PS6B
52 pages
Honeywell HPF-PS10
52 pages
Honeywell HPF-PS10E
52 pages
Honeywell HLSPS25-XPH
16 pages
Honeywell HLSPS50-XPH
16 pages
Honeywell PS-HL-138 BM Series
8 pages
Honeywell Fire-Lite FL-PS10
48 pages
Honeywell NOTIFIER APS2-6R/E
32 pages
Honeywell SILENT KNIGHT SK-PS6
52 pages
