36 HPF24S Series Power Supplies — P/N 52751:D3 5/11/2010
Applications Master HPF24S Power Supply Connected to FACP
5.6 Master HPF24S Power Supply Connected to FACP
In this application, a master HPF24S power supply, set for synchronization, is connected to an
FACP NAC with no synchronized output.
Notes: The following notes apply to this Figure 5.6.
1. Refer to NFPA 72, Visible Characteristics, Public Mode.
2. Use only devices from the same manufacturer in each system.
Standby Polarity Shown
Horn/Strobes
(no synchronization)
HPF24S
SW1 Switch Settings
1 & 2 = sync (any setting
but OFF/OFF)
3 = OFF (master)
4 = OFF (no AC Fail
reporting delay)
5 = OFF
6 = OFF
7 = OFF (charger enabled)
8 = OFF (circuit 4 NAC)
general alarm
24fsapp11.cdr

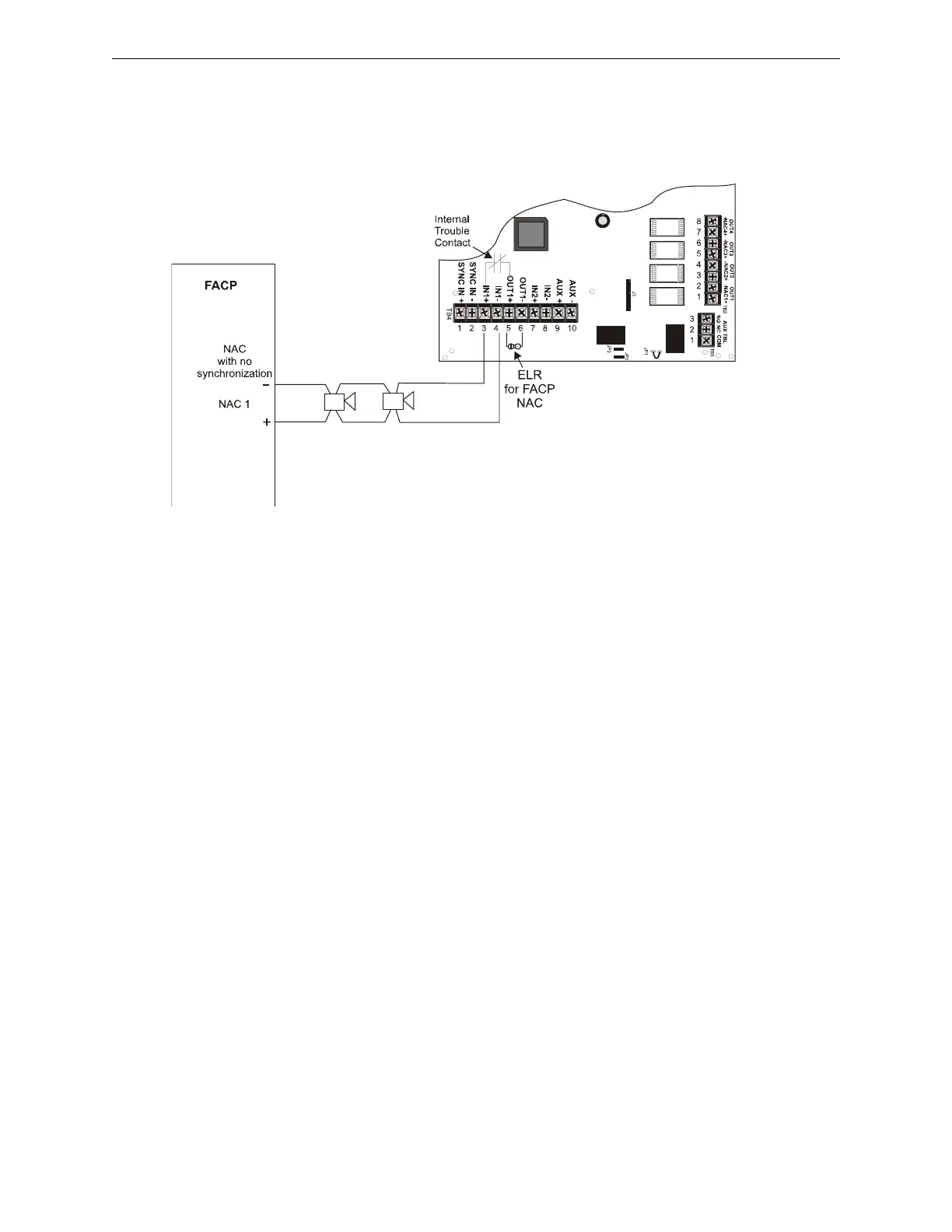

Figure 5.6 Supervised FACP to Master Connections
To Next Page
