18 HPF24S Series Power Supplies — P/N 52751:D3 5/11/2010
Installation Addressable Module Mounting
2.3 Addressable Module Mounting
The HPF24S has been designed to allow the mounting of an addressable control, relay or monitor
module on the main circuit board inside the power supply cabinet with the module status LED
visible through the closed door. This allows power to be fed from the HPF24S Auxiliary Power
output directly to the module, if needed, without running the power wires outside the cabinet. As an
example, Figure 2.5 illustrates wiring from the Auxiliary power output terminals to a FCM-1
control module’s terminals 11 (-) and 10 (+).
NOTE: The module mounting kit (P/N 90286) is pre-installed on the power supply main circuit board.

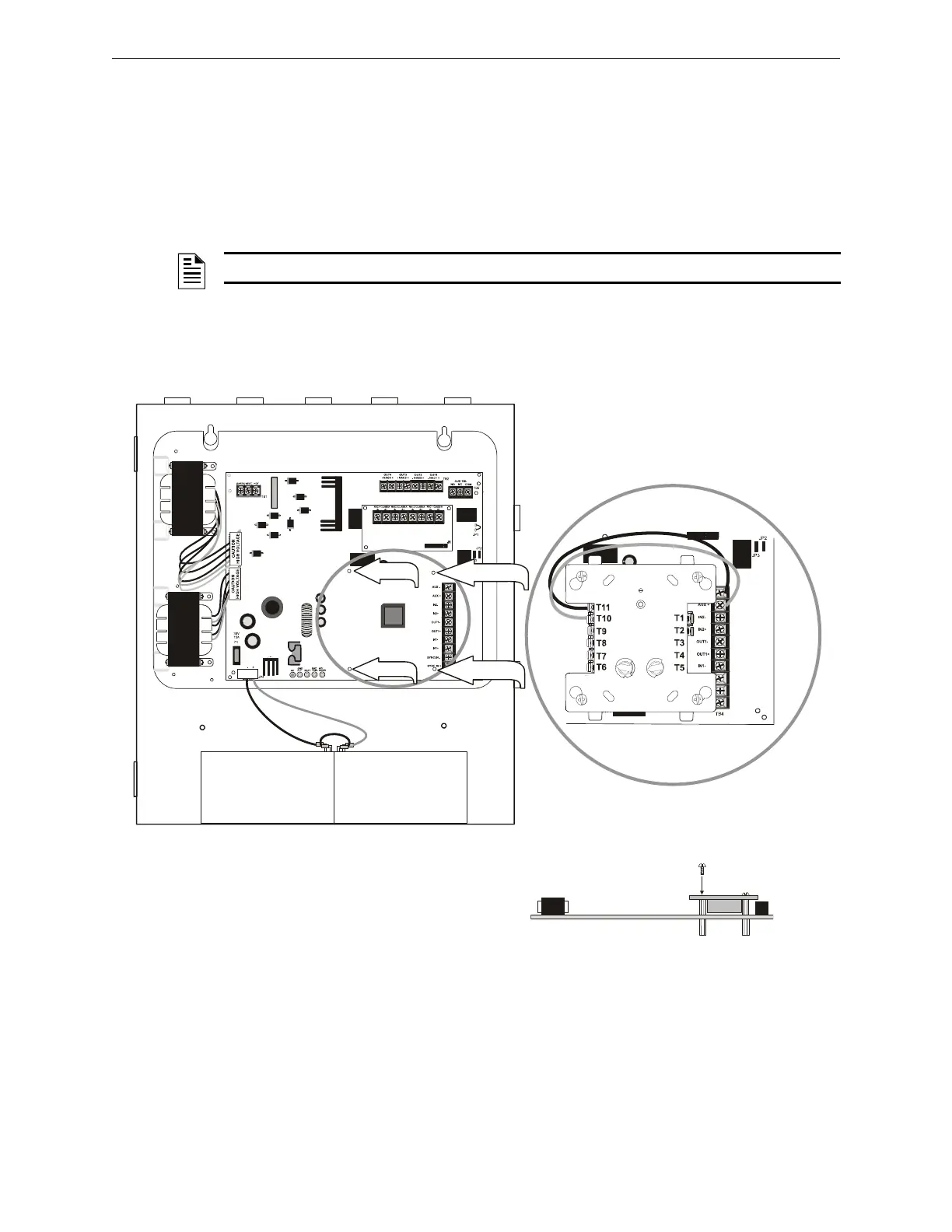

Figure 2.5 Mounting Module In HPF24S Cabinet
standoff
standoff
standoff
standoff
24fsmodltpH.wmf
Module Installation
1. Place addressable module over (4) standoffs and
secure with (4) supplied screws.
2. Wire module as shown in illustration above.
*If the SLC device does not match the one in this figure,
refer to the SLC manual appendix, which contains wiring
conversion charts for type V and type H modules.
