20 HPF24S Series Power Supplies — P/N 52751:D3 5/11/2010
Section 3: Programming Options
This section describes the programming options available via DIP switch settings. The HPF24S
can be field programmed using option DIP switch SW1 which is located in the lower center of the
circuit board. Refer to the following illustration for switch location and DIP switch placement in
the ON and OFF positions.
Important: Change DIP switch settings only when all power (AC and DC) is removed.

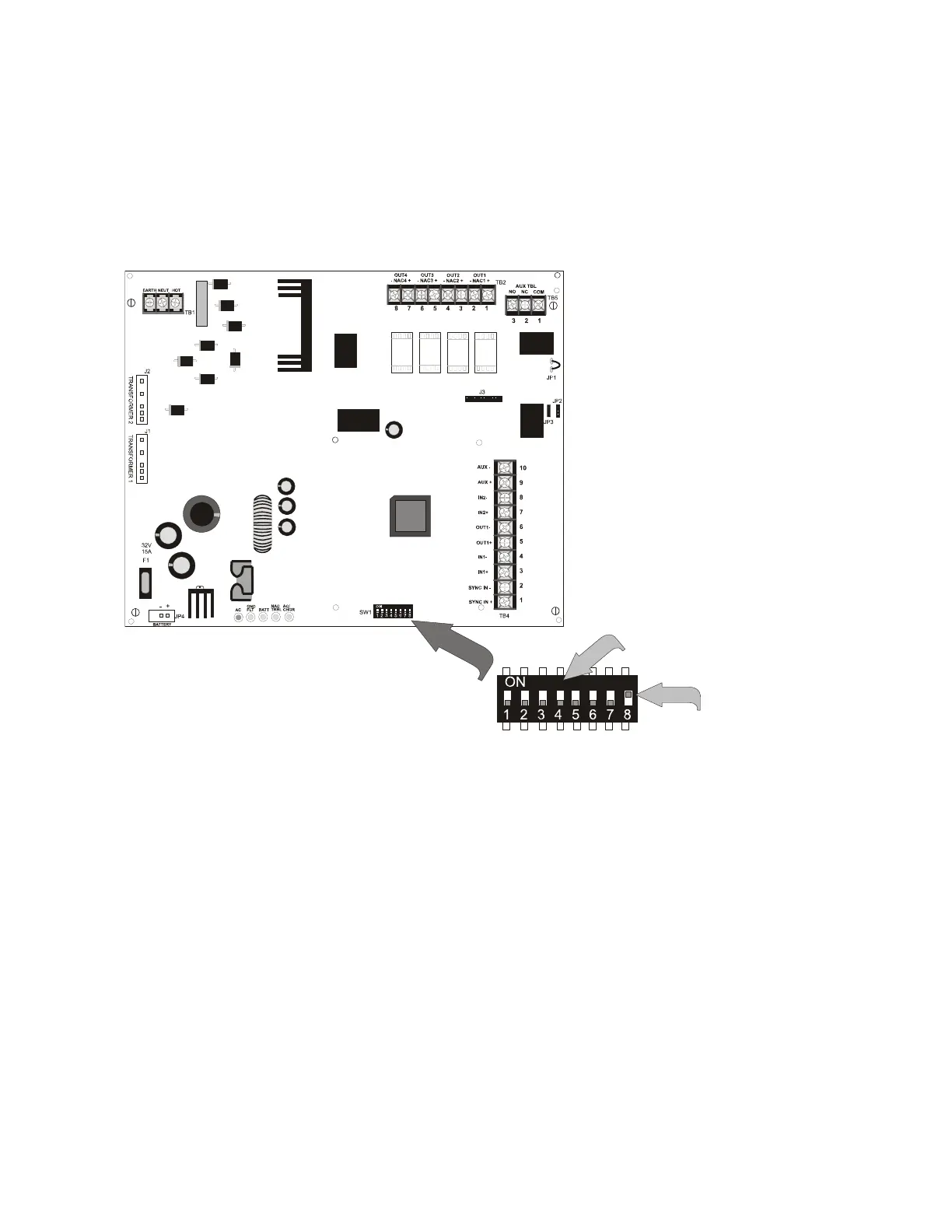

Figure 3.1 Field Programming DIP Switches
Switches 1 through 7 shown in
OFF (Open) position
Switch 8 shown in
ON (Closed) position
24fsswitc.wmf
To Next Page
