Rear Panel
Please refer to the following figure for the rear panel view and
Table 3-2 for rear panel interfaces.

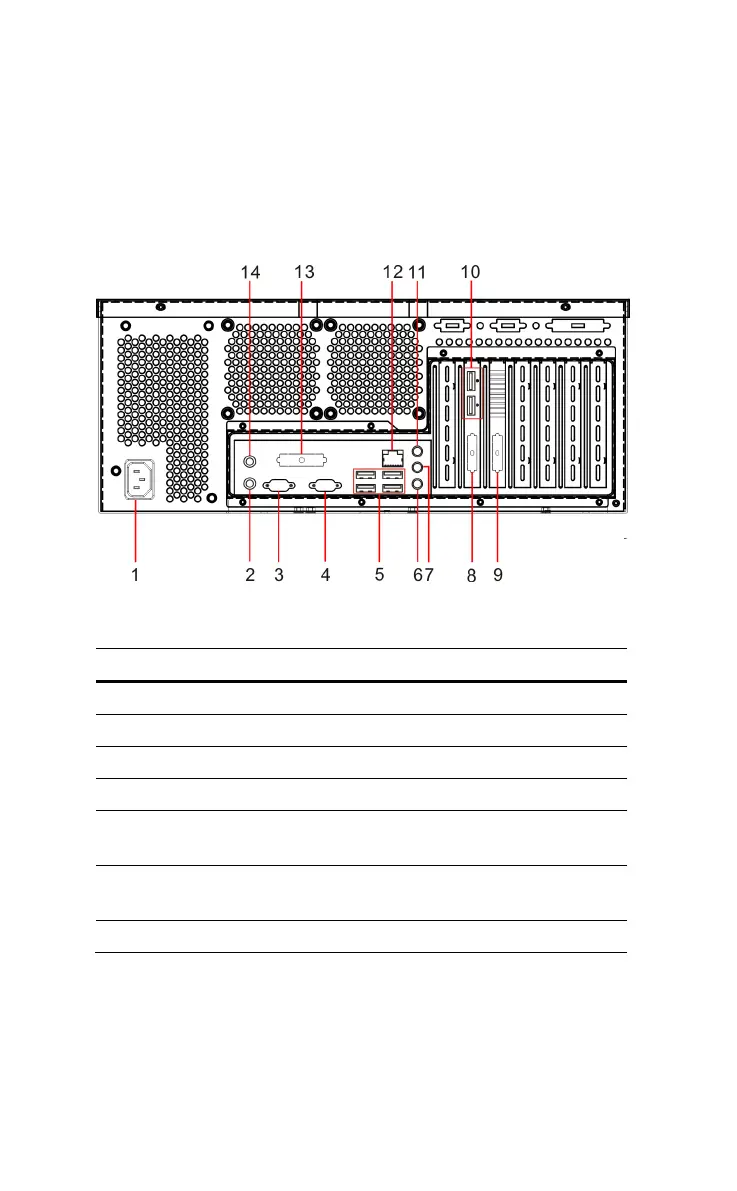

Figure 3-2 Rear Panel
Table 3-2 Rear panel interfaces
No. Name No. Name
1 Power supply 2 PS/2 Keyboard interface
3 RS-232 serial port 4 Integrated VGA interface
5 USB interface (4) 6 Microphone input
7 Audio output 8 Independent DVI interface
9
Independent DVI
interface
10
Independent HDMI
interface (2)
11 Audio in 12
Integrated RJ45 network
interface
13 LPT port 14 PS/2 mouse interface
