Honeywell IQ8Control C User Manual

Fire Alarm Control Panel IQ8Control C/M
FB 798951.GB0 / 01.09
11
Configuration of FACP IQ8Control C
Connector 1
MM 1
A
Example 1:
Basic module with a micro module and a Field device module
(Part No.772479 without micro module slot) on slot 1 of the
Basic module.
Application:
With this configuration, for example, a single control panel
with an analog loop and max. 127 bus devices can be
implemented.
Connector 1
MM 1
MM 2
B
Example 2:
Basic module with a micro module and a Field device module
(Part No.772477 with micro module slot) on slot 1 of the Basic
module
Application:
With this configuration, for example, a single control panel
with two analog loops and max. 254 bus devices can be
implemented
or
This configuration is usually employed in essernet
®
networks
with an analog loop and max. 127 bus devices.
Example 3:
Basic module with a micro module and a Extension module
(Part No.772478 ) on slot 1 of the Basic module.
Application:
This configuration is usually employed in essernet
®
networks
with an analog loop and max. 127 bus devices.
C
Connector 1
MM 1
MM 2
Without the Field device module, no connection is
available for the fire department key pad and the
master box. These devices can be connected to a
different control panel of the essernet
®
.

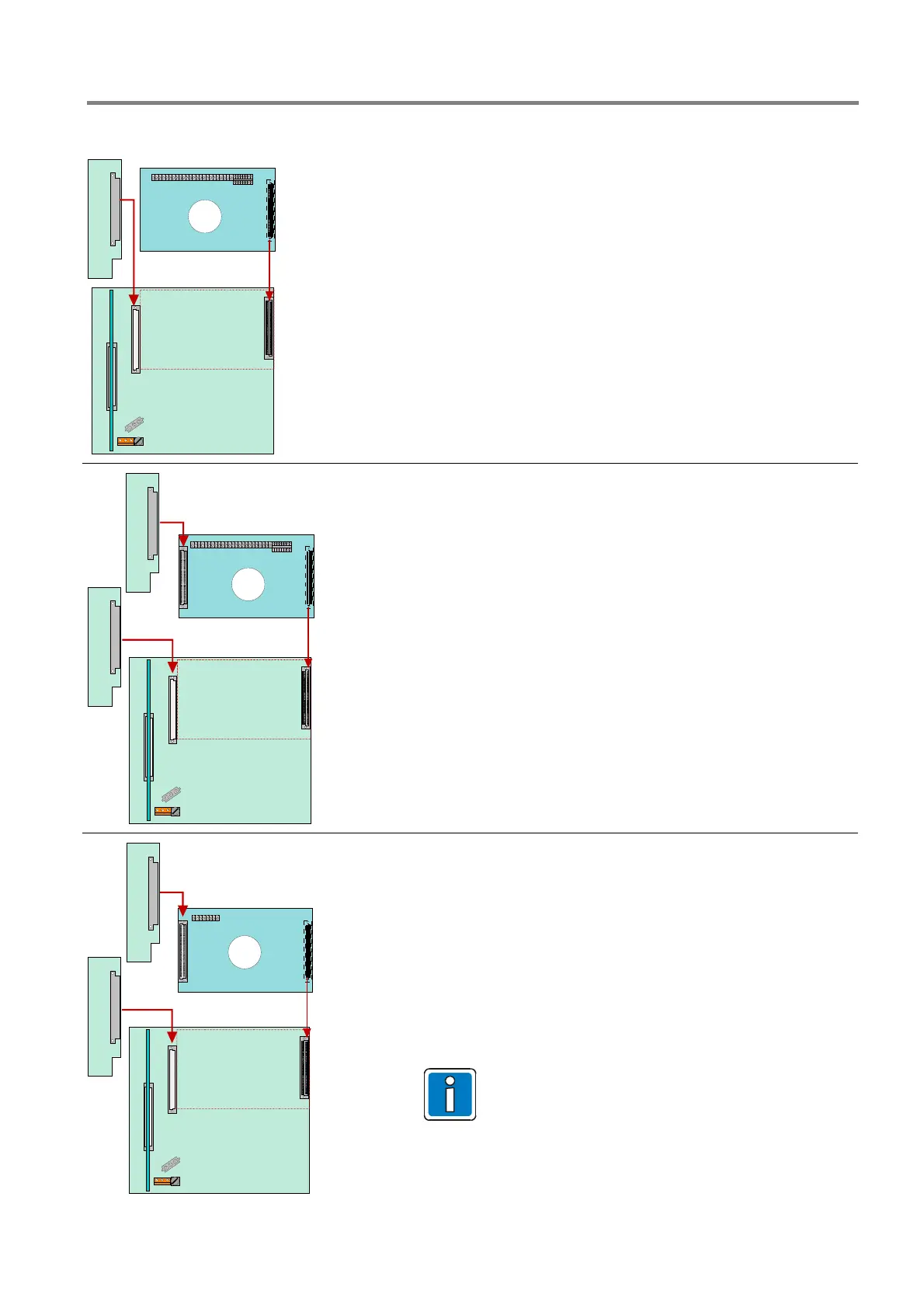

Fig. 5: Configuration FACP IQ8Control C
