3.4 Definition of the Primary loop number
Individual assemblies of the FACP IQ8Control can be switched on/off with the internal primary loop number
through the control panel keyboard or programmed with programming software . This internal primary loop
number is composed of the control panel number, the slot and the assembly number.

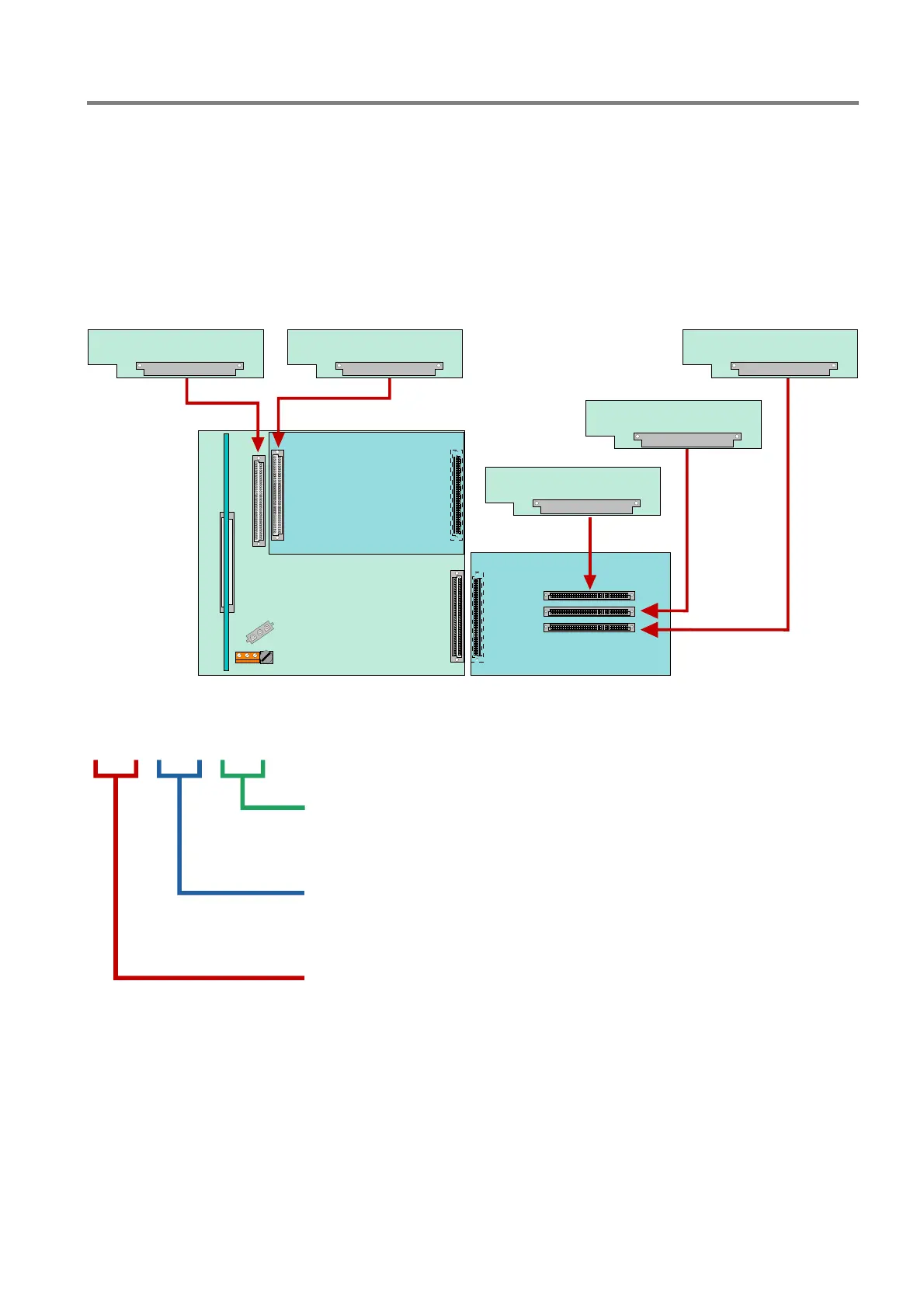

Example: Stand-alone FACP (= Panel No. 01)
1
3
2
0113 0123 0133
0132
0131
Fig. 13: FACP IQ8Control
0 1 X X
Subassembly number of the Basic-, Field device or Extension module
(ref. follow pages)
Slot number: Basic module = No. 1
Basic module Slot 1 = No. 2
Basic module Slot 2 = No. 3
(only FACP IQ8Control M)
Number of the Fire Alarm Control Panel
Stand-alone FACP = 01
Security network FACP = 01 - 31
