Honeywell IQ8Control C User Manual

Fire Alarm Control Panel IQ8Control C/M
16 FB 798951.GB0 / 01.09
Location of the components in a three part FACP housing IQ8Control M

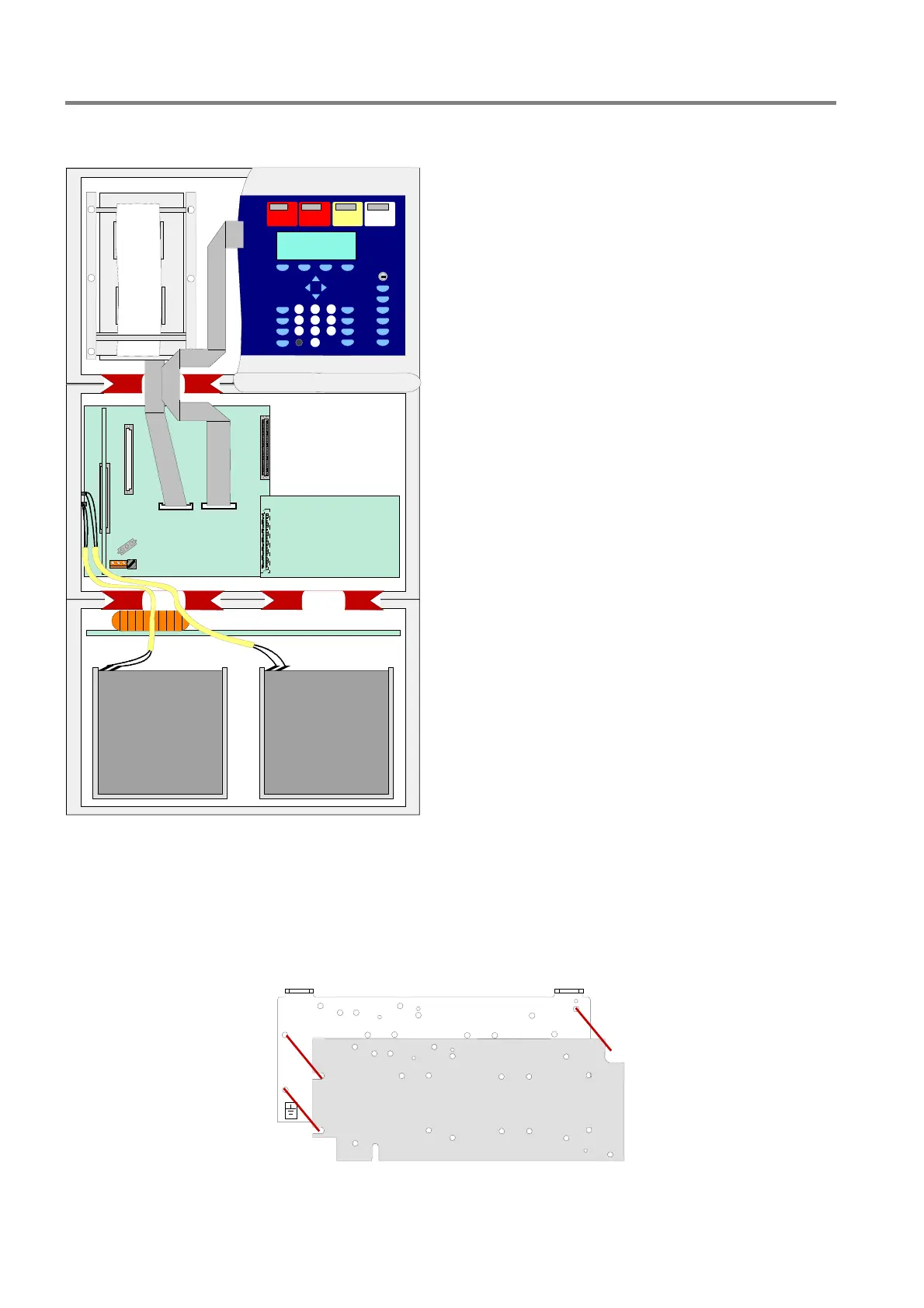

Fig. 11: Location of the components in a three part housing
Mounting plate for master boxes DS 7500 / DS 8800
The mounting plate (Part No. 057633) allows installation of two esserbus
®
transponders or one master box Type
DS 7500 / DS 8800 in the extension housing (Part No. 789303).
Protect the devices against short circuits with the metal mounting plate with the plastic spacers and the
insulation foil.
Mounting plate
Insulation foil
Fig. 12: Mounting plate (Part No. 057633)
