Honeywell IQ8Control C User Manual

Fire Alarm Control Panel IQ8Control C/M
18 FB 798951.GB0 / 01.09

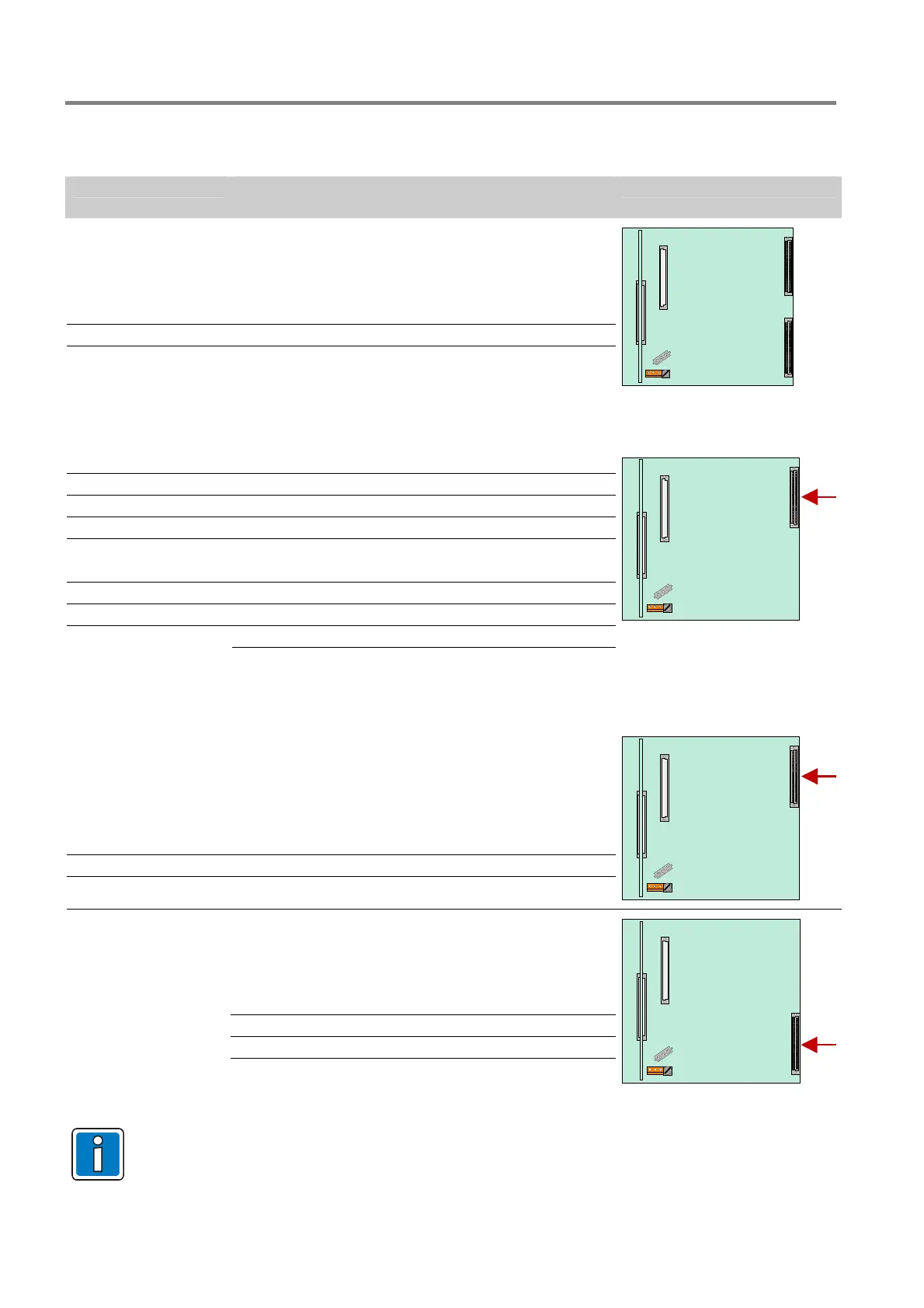

Example: Primary Loop No. (Panel No. 01)
Primary Loop No. Subassembly Position of modules
Basic module
0111
Common Fault Relay (SaS-Relay)
0112
Interface - RS485-1 or TTY
0113
Micro module slot
Connector 1Connector 2
Field device module
0121
Relay K2, K3 and K4
0122
Master box (MB) Relay K1
0123
Micro module slot (only module Part No. 772477)
0124
Internal primary loop
Extension module with 1 micro module slot Part No. 772478
---
no module available
---
no module available
0123
Micro module slot
---
no module available
Connector 1
Extension module
(only IQ8Control M)
with 3 micro module slots Part No. 772476
0121
Micro module slot 1
0122
Micro module slot 2
0123
Micro module slot 3
Connector 1
Extension module
(only IQ8Control M)
with 3 micro module slots Part No. 772476
0131
Micro module slot 1
0132
Micro module slot 2
0133
Micro module slot 3
Connector 2
The Field device module (if available) must be installed in >Slot 1< of the Basic module.
>Slot 2< of the Basic module is unused on the FACP IQ8Control C.
