Honeywell IQ8Control C User Manual

Fire Alarm Control Panel IQ8Control C/M
140 FB 798951.GB0 / 01.09
Wiring FACP IQ8Control
M
+
-
F4
+UBext T2A
BR7
Printer
System connector 2
Printer
GND
X23 Printer
+UBext.
Basic module
IQ8
Control
Ribbon cable
GND
4
switched +12 V ext.

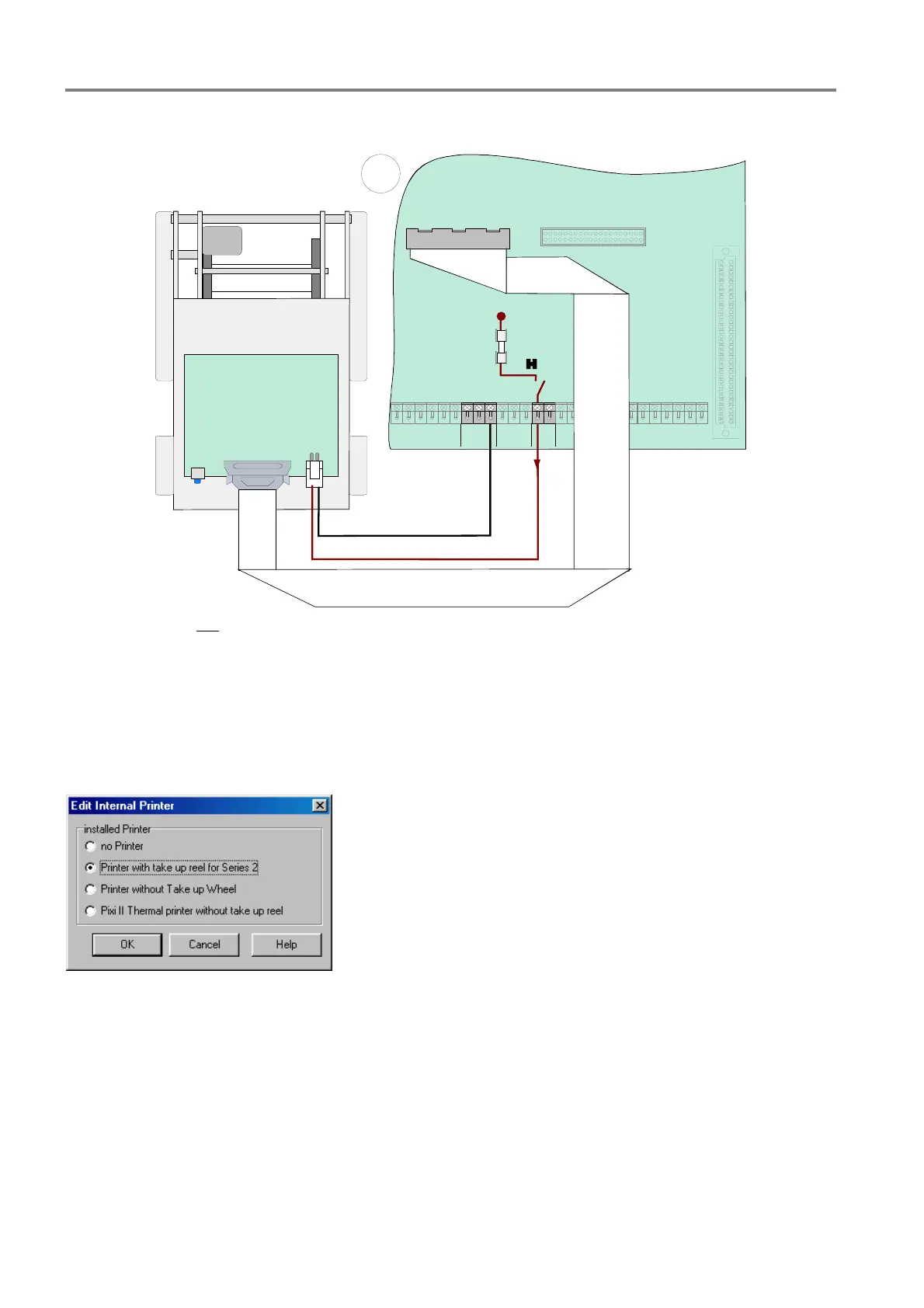

Fig. 122: Wiring Printer with paper take-up reel
Customer data programming with tools 8000
The printer must be programmed with the tools 8000 programming software from Version 1.00 or higher as a
>Printer with take up reel for Serial 2< in the panel configuration.
Fig. 123: Selecting the printer
