Honeywell IQ8Control C User Manual

Fire Alarm Control Panel IQ8Control C/M
FB 798951.GB0 / 01.09 53
Wiring example:
Operating mode 1 Î Relay K1 – positive switching and monitored
680

S*
R*
+UB
BACK
ÜE -
ÜE +
+ UB ext.
+UB
10 9 8 7
NO
C
GND
Relay
common fire
Relay
MFAB activated
Master box
(schematic circuit diagram)
FACP IQ8
Control C/M
Field device module
alarm
acknowledge
MFAB
acknowledge
fire dept. key box

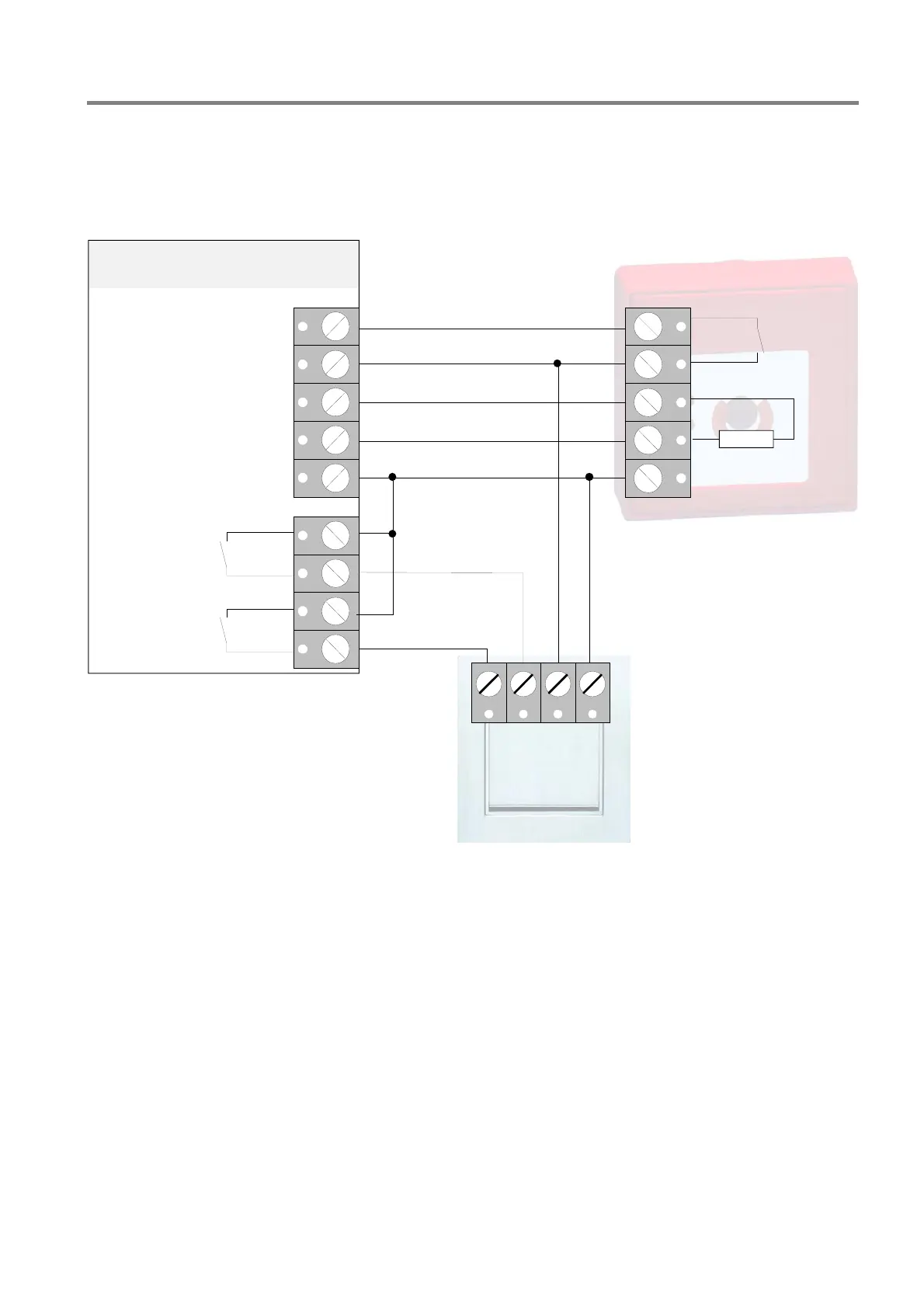

Fig. 47: Schematic circuit diagram master box with FDKB adapter
