Honeywell IQ8Control C

Fire Alarm Control Panel IQ8Control C/M
FB 798951.GB0 / 01.09 77

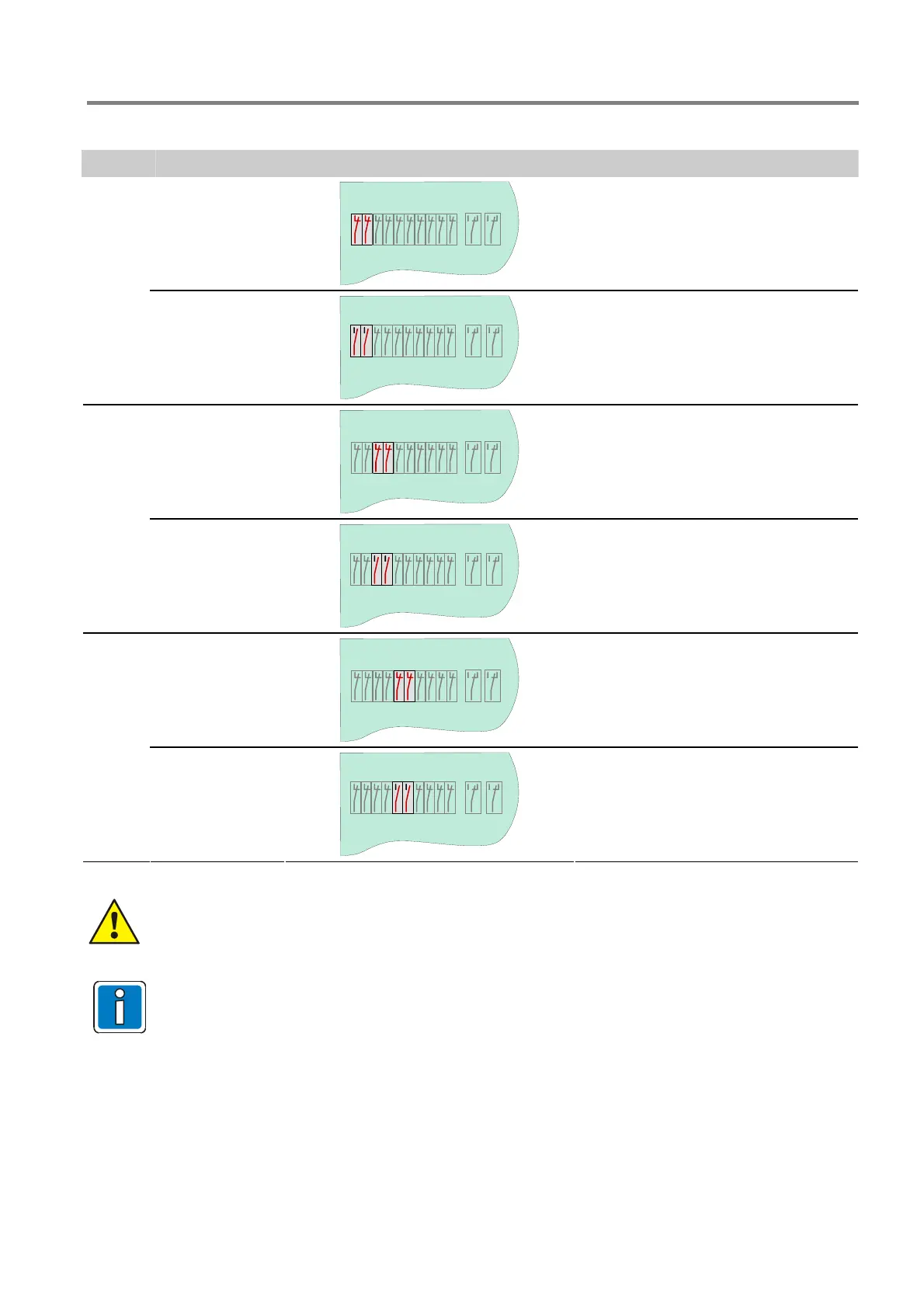

Adjustment of the relays
Relay Status Contacts switch S 1 Contact
10 k monitored
S 1
21
closed
K 1
not monitored
S 1
12
open
S 1
43
10 k
 monitored
closed
K 2
not monitored
S 1
34
open
S 1
65
10 k
 monitored
closed
K3
not monitored
S 1
56
open
No AC voltages may be applied to the relays built-into the Fire Alarm Control Panel. This applies
also to those relays operated in the >non-monitored< mode.
The >monitored / non-monitored< mode for individual relays must be programmed in addition to the
setting on the micro module using the service PC.
