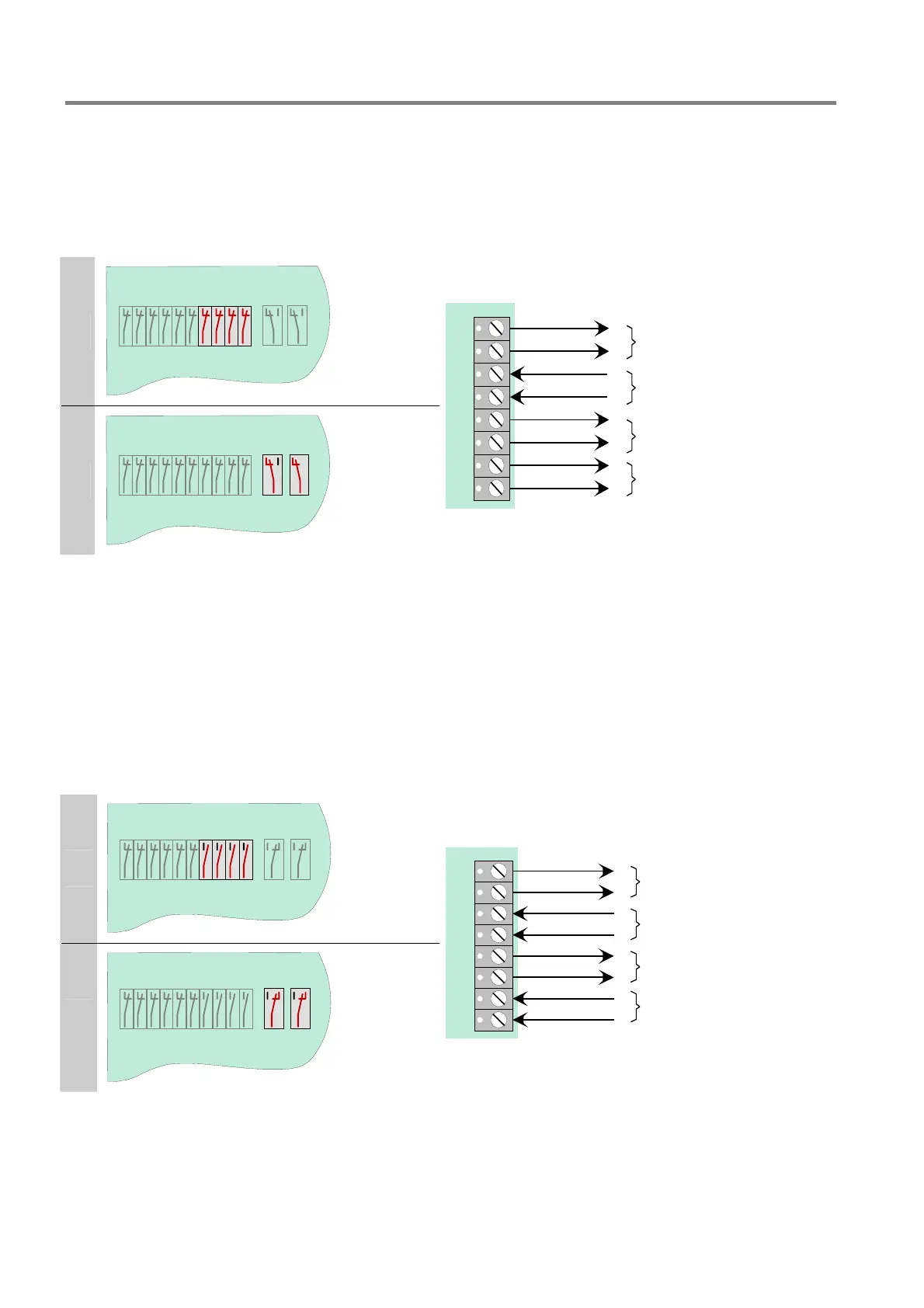

Application examples (A)
Three relays with a common external voltage (default setting).
This application involves feeding an external voltage (e.g. +12V) to terminals 3 and 4 on the terminal card, this
voltage then being switched via the relay to the external device for activation in the event of an incident
occurring.
S 1
78910
ext. device at relay K1
ext. voltage,e.g. +12
V
-
+
+
+
+
-
-
-
1
2
3
4
5
6
7
8
ext. device at relay K2
ext. device at relay K3
closed
S 1
S 2
12
NO NC NO NC
n.o.
S 2
Fig. 68: Application examples (A)
Application examples (B)
Two relays with two differing external voltages
This application permits the switching of two different external voltages (e.g., +12V and +24V). This involves
relays K1 and K2 on the micro modules!
Relay K3 is not used!
S 1
78910
ext. device for relay K1
ext. Voltage for external device
at relay K1, e.g. +12 V
+
+
+
+
-
-
-
-
1
2
3
4
5
6
7
8
ext. Voltage for external device
at relay K1, e.g. +24 V
ext. device for relay K2
open
S 1
S 2
12
NO NC NO NC
n.c.
S 2
Fig. 69: Application examples (B)
