7.2 Overview – micro module terminals
Basic module
IQ8
Control
X3
micro module
1 2 3 4 5 6 7 8

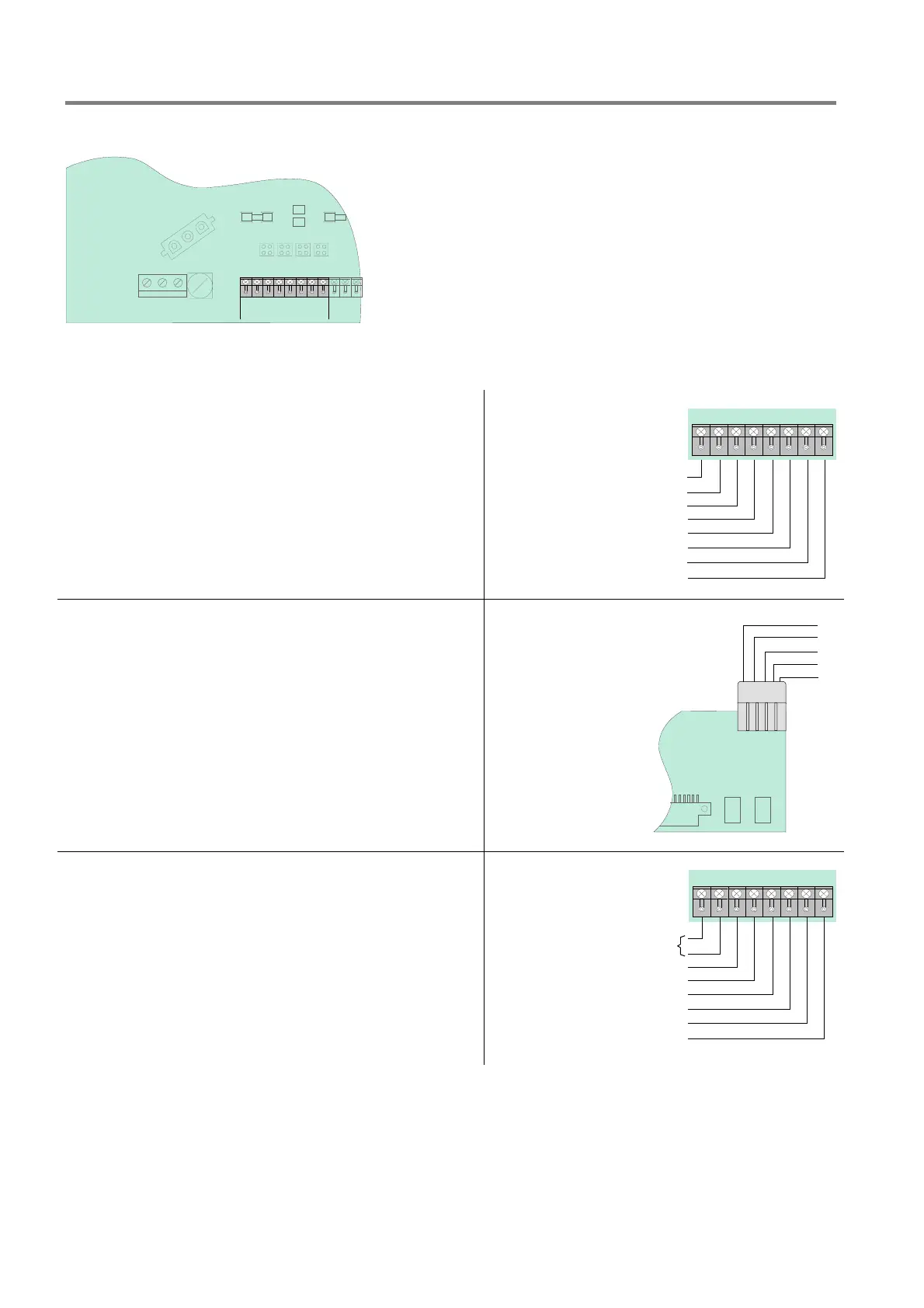

Fig. 79: Overview – micro module terminals
Analog loop module esserbus
®
(Part No. 784382 / 784382.10 / 784382.D0)
for max. 127 loop devices, e.g. Fire detectors IQ8Quad,
series 9200 and esserbus
®
-transponders, dividable in 127
individual zones
Quiescent current: approx. 25 mA.
Total current for loop devices max. 40 mA
A +
A -
B -
B +
not used
12 345 6
78
not used
not used
not used
Analog loop module esserbus
®
-PLus
(Part No. 804382 / 804382.10 / 804382.D0)
or max. 127 loop devices, e.g. Fire detectors IQ8Quad,
series 9200, esserbus
®
-transponders and loop compatible
alarm devices, dividable in 127 individual zones
Quiescent current: approx. 25 mA.
Total current for loop devices max. 180 mA
A +
A -
B -
B +
B
-
B
+
A
-
A
+
not used!
Master box activation module (Part No. 784385)
To connect and control the MFAB operation.
Quiescent current: approx. 15 mA.
12 345 6
78
not used
MFAB reset (+12V oder +24V/300mA)
+MFAB supply voltage
PPrimary loop to MFAB (+MFAB)
GND
unlock fire dept. box (max. 300mA)
MFAB acknowiedgment
