24
IR Activation Range
The MS7580 has a built in object detection sensor that instantly turns on the
imager when an object is presented within the imager’s IR Activation Area,
shown below.

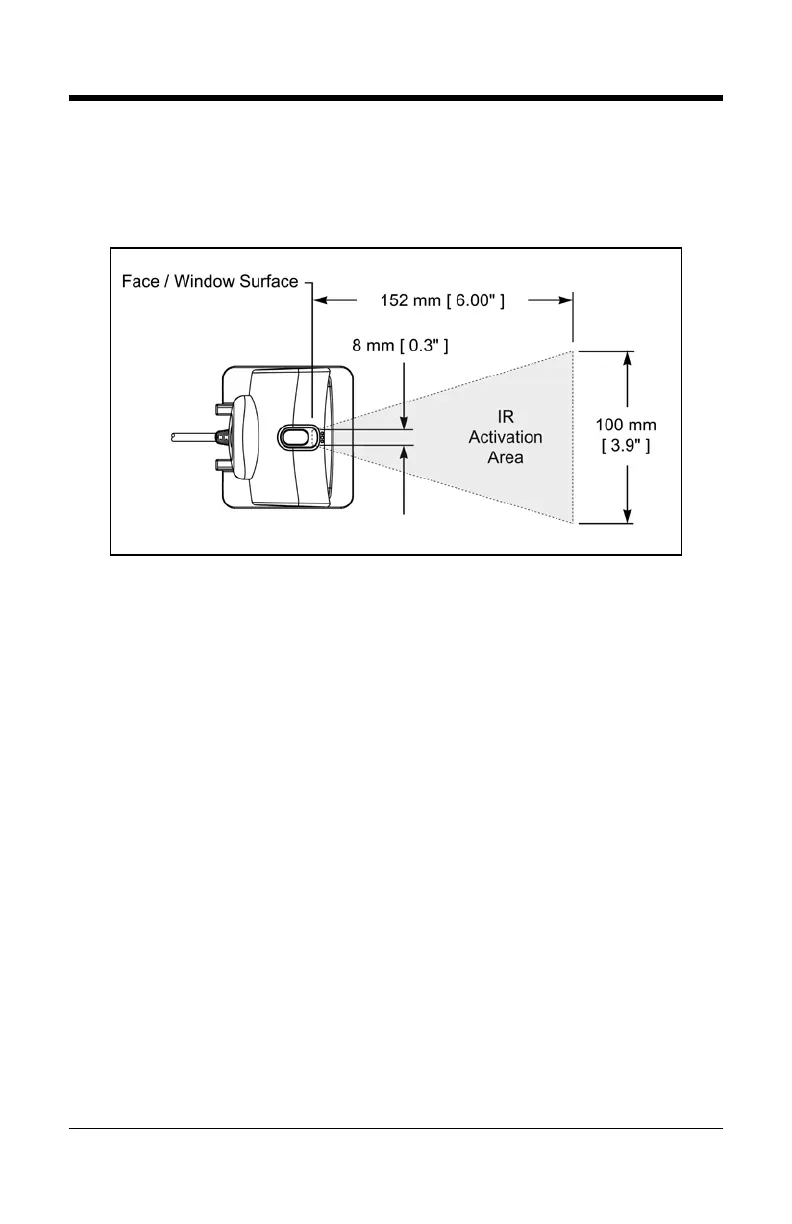

Figure 22. IR Activation Area
