ID2000 Series Operating Manual
Panel Controls and Indicators
3 997-434-000-4, Issue 4
May 2010
2 Panel Controls and Indicators

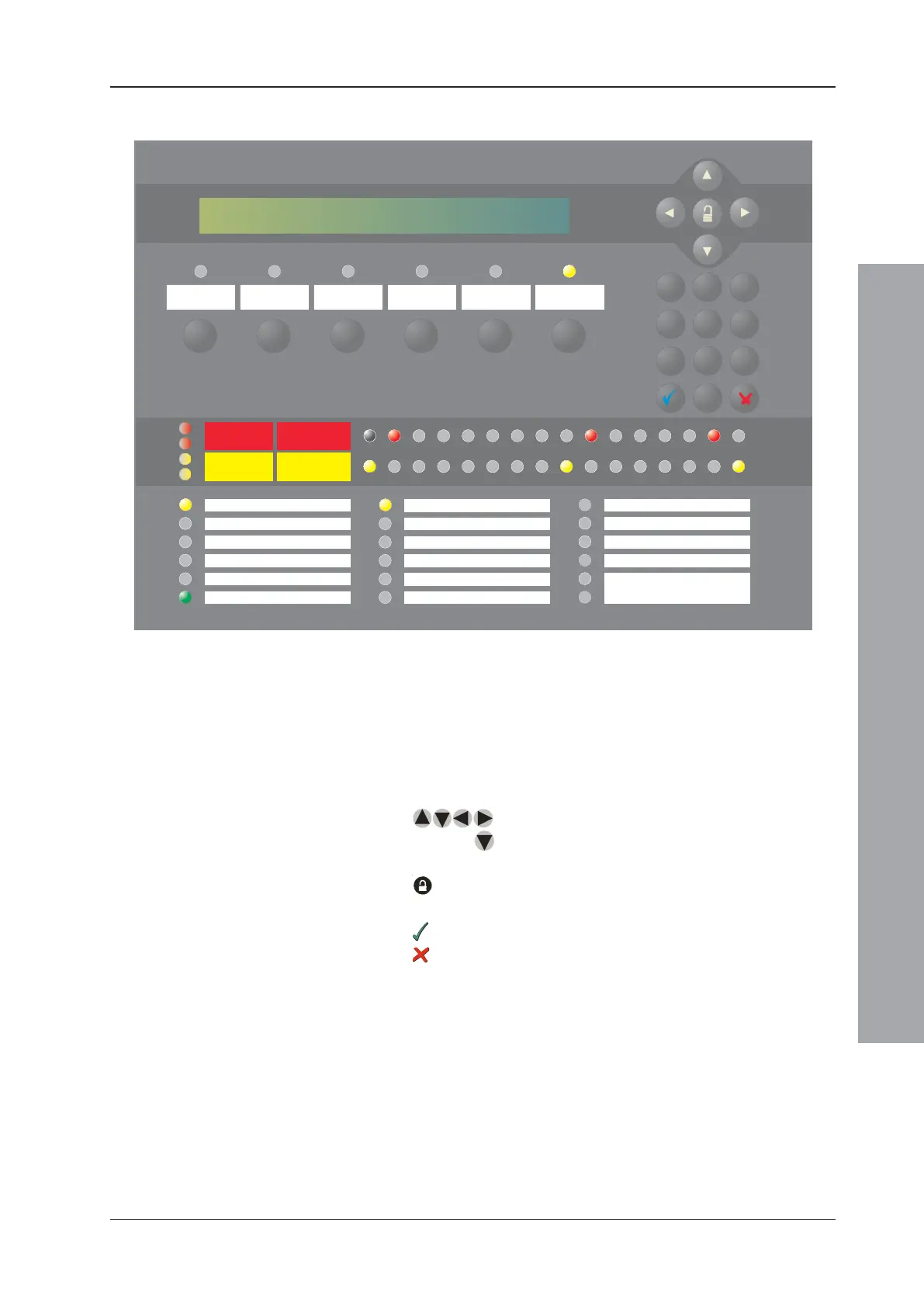

LCD display - refer to Section 4.1 for further information.
MUTE BUZZER - Refer to Section 4.2 for further information.
ACCEPT - Refer to Section 4.3 for further information.
EVACUATE - Refer to Section 4.4 for further information.
SILENCE SOUNDERS and RESOUND SOUNDERS - Refer
to Section 4.5 for futher information.
RESET - Refer to Section 4.6 for further information.
- Used to move around the LCD menus. Press
and hold
to advance the printer paper (maximum of 20 lines
are advanced for a single press of this pushbutton).
- Used to confirm changes during system configuration.
0 to 9 - Used for menu selection and for data entry.
- Used to confirm an entry.
- Used to cancel an entry.
FIRE - LEDs indicate a fire condition.
ZONE FIRE - LEDs indicate affected zone(s).
FAULT - LEDs indicate a fault condition.
ZONE FAULT DISABLE/TEST - LEDs indicate affected zone(s).
Status LEDs:
DISABLEMENT PRE-ALARM REMOTE OUTPUT DISABLED
TEST SOUNDERS DISABLED REMOTE OUTPUT FAULT
EARTH FAULT SOUNDER FAULT
REMOTE OUTPUT OPERATED
POWER SUPPLY FAULT DELAY ACTIVE
SYSTEM FAULT DAY MODE
POWER
7
8
9
4
5
6
1
2
3
0
1
9
5 13
3 11
7
15
2
10
6
14
4 12
8
16
MUTE
BUZZER
SILENCE
SOUNDERS
RESOUND
SOUNDERS
RESOUND
SOUNDERS
EVACUATE
RESET
STATUS: NORMAL FRI 09-JUL-04 14:48:40
NOTIFIER ID2000 FIRE ALARM SYSTEM
STATUS: NORMAL FRI 09-JUL-04 14:48:40
NOTIFIER
ID2000 FIRE ALARM SYSTEM
DISABLEMENT
TEST
DELAY ACTIVE
DAY MODE
REMOTE OUTPUT DISABLED
REMOTE OUTPUT FAULT
REMOTE OUTPUT OPERATED
SOUNDER FAULT
SOUNDERS DISABLED
EARTH FAULT
POWER SUPPLY FAULT
SYSTEM FAULT
SYSTEM FAULT
POWER
PRE-ALARM
ID2000 FIRE CONTROL PANEL
Complies With EN54-2/4 1997
ID2000 FIRE CONTROL PANEL
Complies With EN54-2/4 1997
FAULT
ZONE FAULT
DISABLE/TEST
ZONE FAULT
DISABLE/TEST
FIRE
ZONE FIRE
