ID50 Series Panel - Installation, Commissioning & Configuration Manual
Appendix 2 - ID60 Panel Differences
A2 - 2997-263-000-11, Issue 11
January 2010
1
Non-VIEW
TM
Sensor Sensitivity
The ID60 panel supports co-operative multi-sensing for
sensor types other than VIEW
TM
. When configuring ION,
OPT, MLT, OPX/SM2, SM3 or SM4 sensors a third menu
option, Group, is displayed with the default group number
displayed in the brackets. A sensor may be assigned to
one of up to 50 groups and mixed with other sensor types.
Allocation to a non-zero group enables a sensor’s
inclusion in the AWACS
TM
algorithm. However, allocation
of a sensor to Group 0 excludes it from the AWACS
TM
algorithm and the existing alarm detection algorithm is
used instead (the sensor will operate as a stand-alone
device).
Note: When transferring a configuration from an earlier
version panel, the group number is defaulted to
‘1’. This must be changed to ‘0’ for all devices not
being monitored by the AWACS
TM
algorithm. Non-
VIEW
TM
devices learnt using software version 5.00,
or above, will default the group to ‘0’.
Alarm and pre-alarm sensitivity levels can be set in
addition to selecting a multi-sensing group.

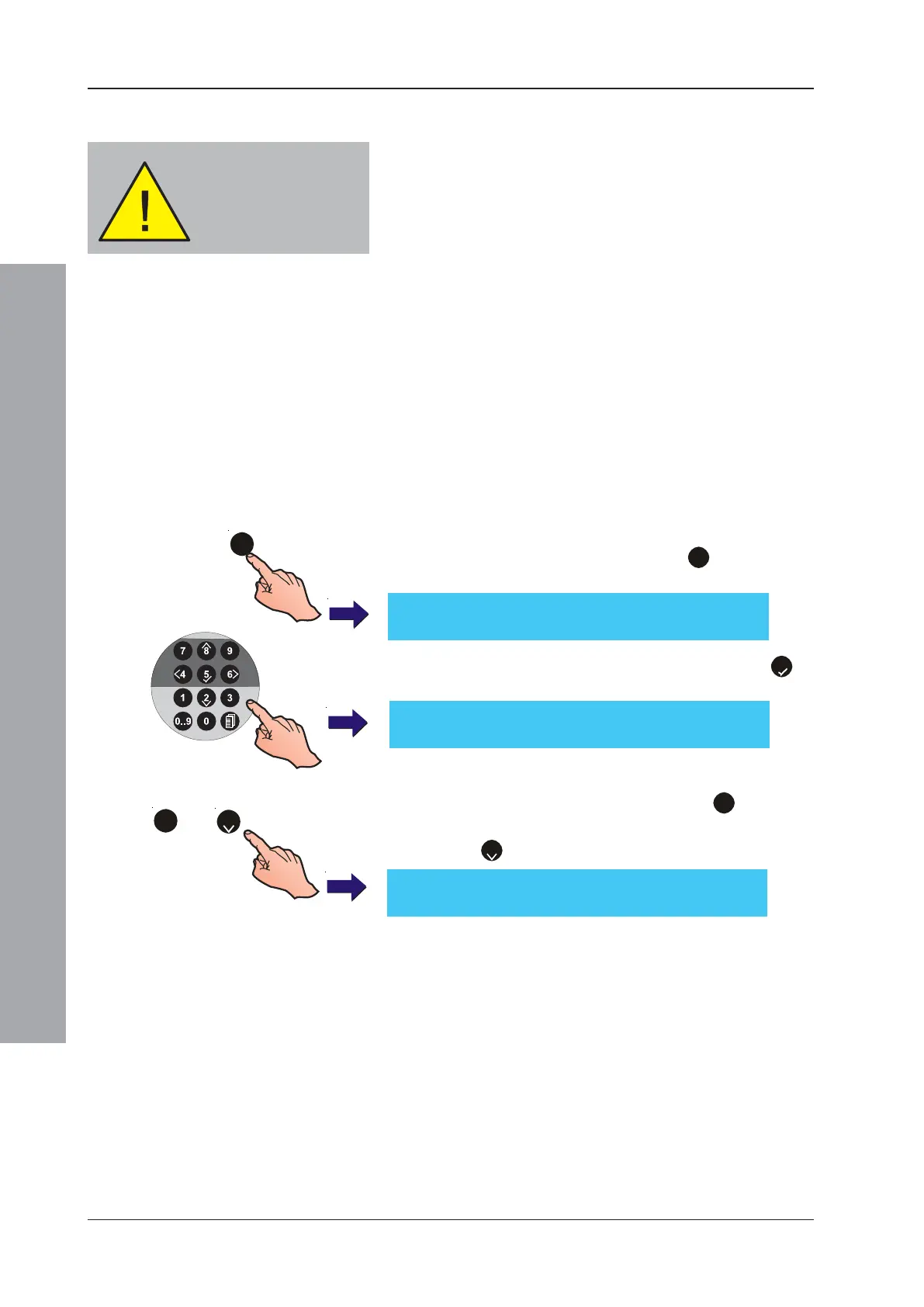

1 To change the group, press the ‘
3
’ button on the
numeric keypad.
2 Enter a new group number, e.g. 2, and press ‘
5
’ to
confirm.
3 Using the numeric keypad, to change the alarm and/
or pre-alarm sensitivity levels press the
1
pushbutton
or to change the Day Mode sensitivity setting, press
the
2
pushbutton.
4 At the appropriate prompt enter the desired sensitivity
setting.
3
[Sensor nn - AAA] Sensitivity
Enter new AWACS Group : ____ < : Cancel
[Sensor nn - AAA] Sensitivity
1 : Alarm (L5,5) 2 : Day (L5,5) 3 : Group (0)
[Sensor nn - AAA] Sensitivity
1 : Alarm (L5,5) 2 : Day (L5,5) 3 : Group (2)
or
2
CAUTION!
Use care when including
sensors to AWACS groups as
this may conflict with other
configured operations, such
as coincidence.
