ID50 Series Panel - Installation, Commissioning & Configuration Manual
Configuration Mode
51
997-263-000-11, Issue 11
January 2010

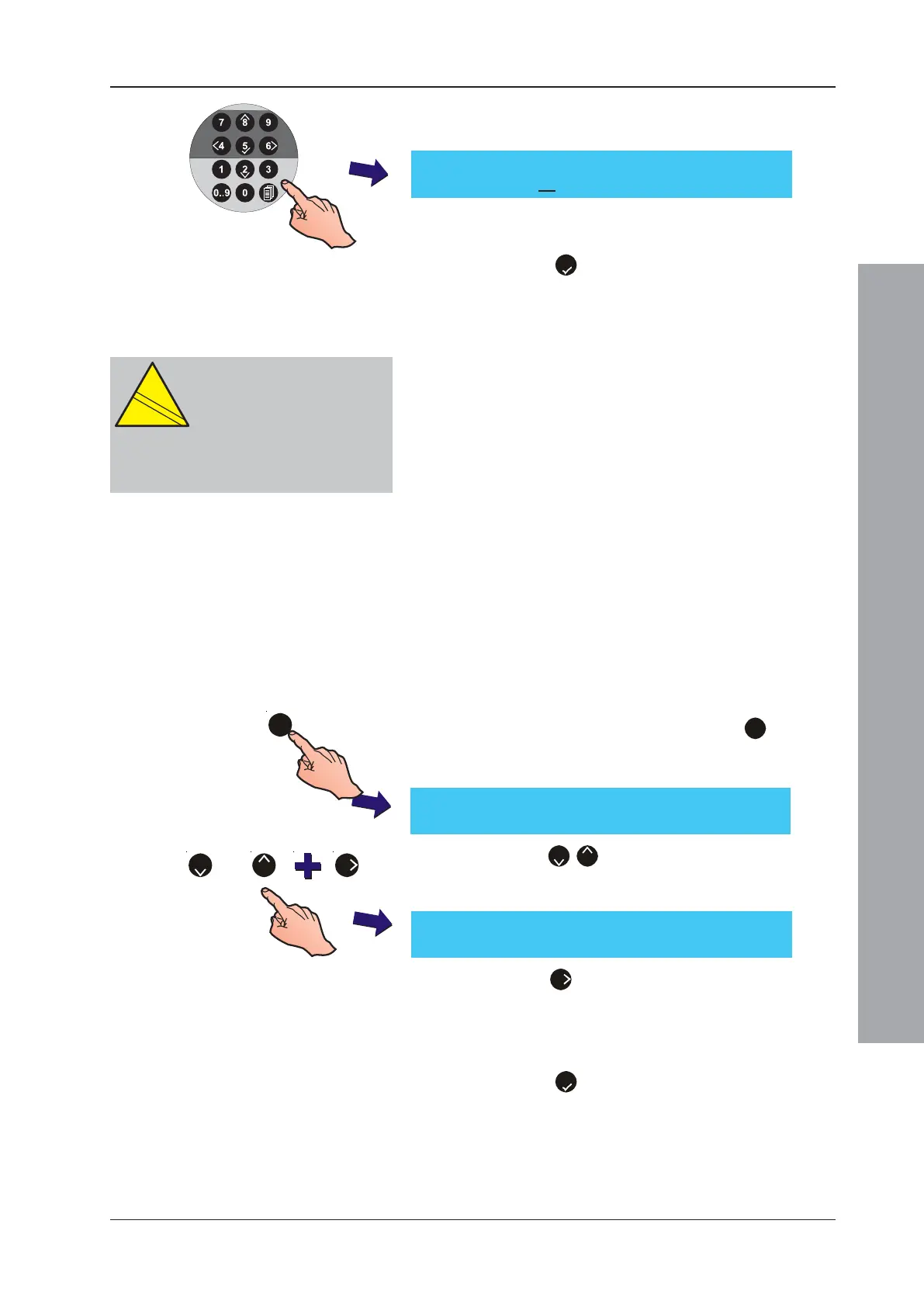

4 Enter a delay time using the numeric buttons, between
0 and 999 secs, e.g. 90 secs:
Note: Entering a value of ‘0’ means that the output, after
switching ON, is not switched OFF.
5 Press the ‘
5
’ button to confirm and return to the
Setup menu screen.
5.5.3.10 Hold Switch Operation
AUX modules, configured as one of four Hold Switch
categories, can be used to affect the Extinguishing
System Delay timer function. The four categories are:
AHJ - While this input is active, the Extinguishing System
Delay timer is reset to the configured value and paused.
NYC - While this input is active, the Extinguishing
System Delay timer is reset to the configured value
plus 90 secs and paused.
ULI - While active, the Extinguishing System Delay
timer continues to count down but pauses at 10 secs
before release.
IRI - Hold switch activity is ignored if two or more
zones associated with CBE rules with a category of
‘Extinguishing System’ are in alarm. Otherwise
operation is the same as type ULI.
Note: Only one of the above Hold Switch input types may
be used per panel.
1 From the Setup menu screen, press the ‘
3
’ button on
the numeric keypad to enter the Device Options menu.
The Device blinking screen is displayed first.
2 Press the ‘
2
/
8
’ buttons to step through the Device
Options until the LCD shows the Hold Switch
Operation menu.
3 Press the ‘
6
’ button to select alternative settings of
NYC, ULI or IRI, as required. Changing the setting
saves the change automatically.
Note: The default selection is AHJ.
4 Press the ‘
5
’ button to confirm and return to the
Setup menu screen.
5.5.3.11 Transmission Device
The Transmission Device activates in response to an
alarm condition. The ‘Transmission Device’ menu enables
the configuration of either a continuous or a 6 second
3
[Setup] Ext. System Soak = 0 Seconds
Enter new value 90 : Confirm < : Cancel
[Setup] Hold Switch Operation = AHJ
> : Change ¦ : More < : Exit
[Setup] Device Blinking = ON
> : Change ¦ : More < : Exit
or
8
2 6
CAUTION:
This product is not compliant
with EN 12094-1.
EN
12094-1
!
Fire extinguishing installations in
Europe are required to be certified as
compliant to this standard.
To Next Page
