5.6.2.1 Initialising OPAL Devices
OPAL protocol loop devices need programming, or
initialising, before the panel can perform a learn operation
and permit device polling. Device initilialisation is normally
performed as part of a learn operation. However,
initialisation can be carried out independently of a learn
operation, for example after the replacement of a loop
device, as described below.
Also, it is possible to display the loop device totals,
normally displayed after a learn operation, using the
LEARN menu option ‘4: Display Totals’.

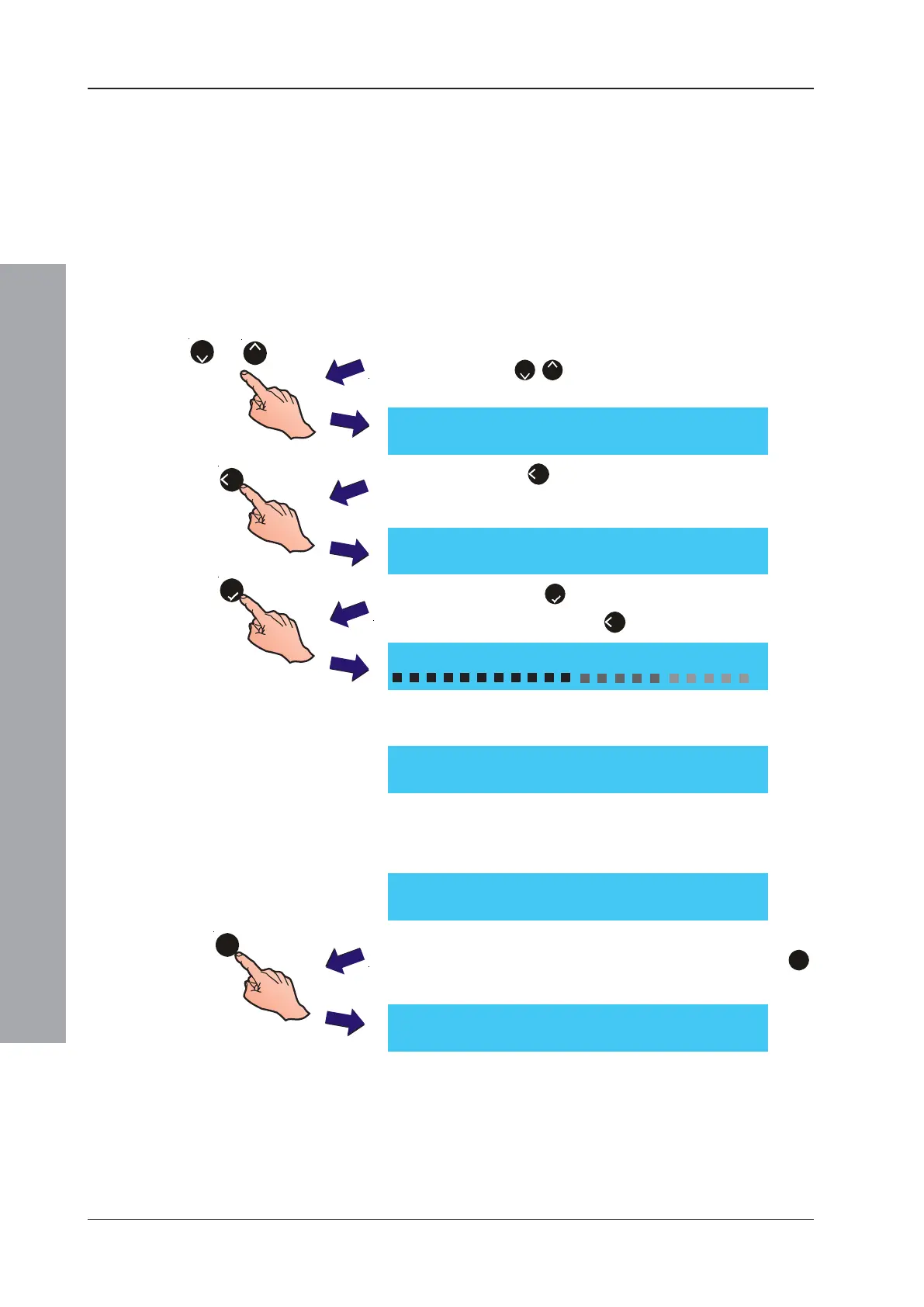

1 Use the ‘
2
/
8
’ buttons to scroll to the second menu
display.
3 Press the ‘
5
’ pushbutton to confirm device
initialisation or press ‘
4
’ to cancel:
2 Press the ‘
4
’ pushbutton using the numeric keypad
to select ‘Initialise OPAL’. A request for initialise
confirmation is then displayed:
4 When initialisation is complete the second menu
screen is re-displayed:
5 To re-display the learn totals after an initialise
operation, use the numeric keypad and press the ‘
3
’
button to select the option ‘Display Totals’:
Note: If this option is selected before a learn operation is
carried out or with a CLIP protocol loop the
following error message is displayed:
5
4
[Learn] Initialising OPAL Devices
[S1 LEARN] 3 : Display Totals
4 : Initialise OPAL ¦ : More
[LEARN] Confirm OPAL Device Initialise
: Continue <: Cancel
[S1 LEARN] 3 : Display Totals
4 : Initialise OPAL ¦ : More
[LEARN] Total 010 (003 + 007) ¦ : More < : Exit
OPAL: OPT 03, SM2 02, SM3 01, M701 01
3
2
8
or
[LEARN] No OPAL Devices Configuration
<: Exit
