AFP-100 (UL 8th) Configuration for the LDM-32 and AFP-100
All LDM-32s set to
Receive/Transmit
EIA-485 Line
power-limited
AFP-100 FACP
LDM-32 LDM-E32 LDM-E32Address 04
(Modules)
LDM-32 LDM-E32 LDM-E32Address 03
(Modules)
LDM-E32
LDM-32 LDM-E32 LDM-E32Address 02
(Detectors)
LDM-32 LDM-E32 LDM-E32Address 01*
(Detectors)
LDM-E32
*Note: The LDM-32 addressed as '01' must be
placed at the end of the EIA-485 wiring in order
to provide electrical supervision of the wiring
between all LDMs on the loop.

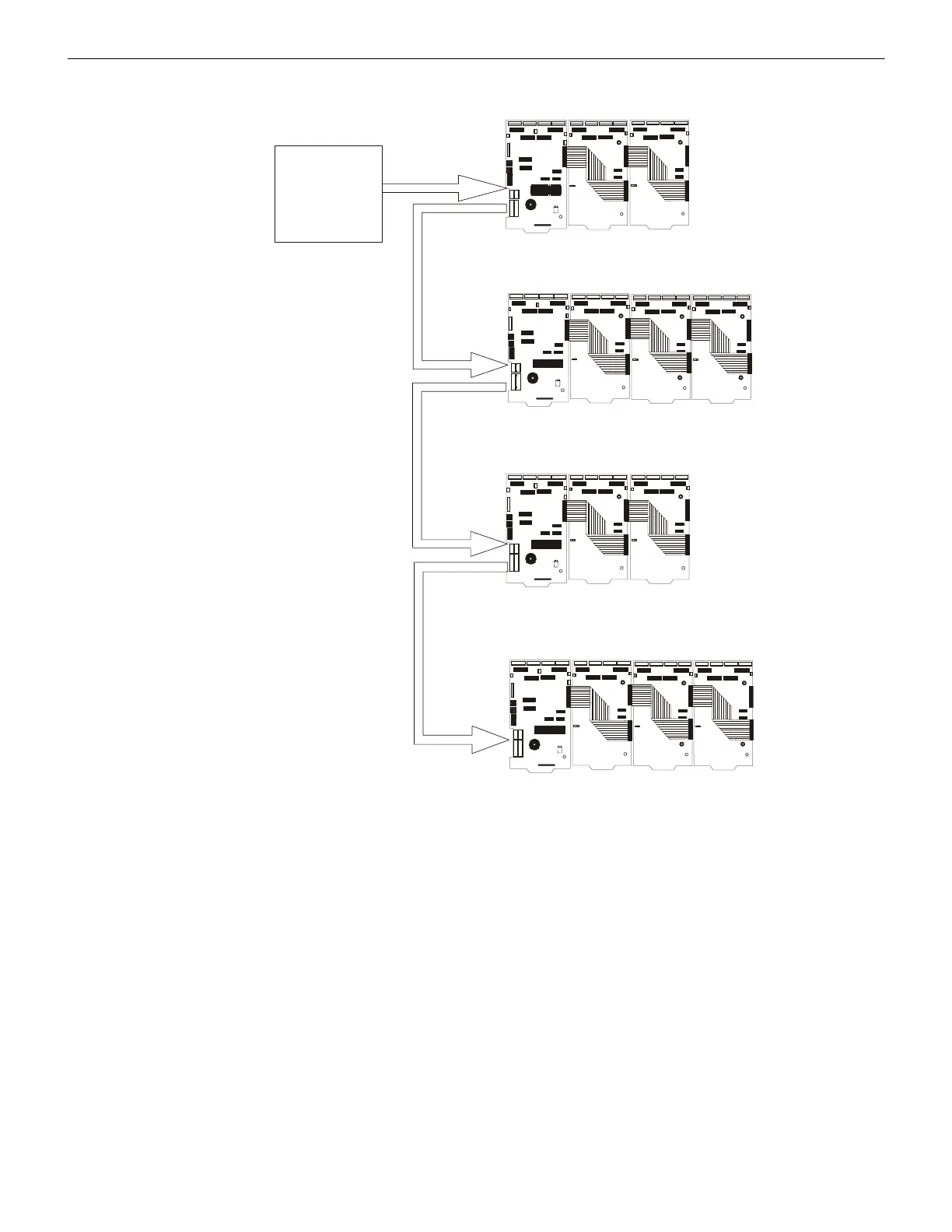

Figure D.5 Configuration for 198 Point Alarm & Trouble Annunciation
