Honeywell NOTIFIER LDM Series User Manual

48 LDM Series Instruction Manual — P/N 15885:H3 8/12/2019
NFS2-3030 and NCA-2 (UL 9th), AM2020/AFP1010, NFS-3030, or NCA (UL 8th) Wiring the LDM for the NFS-3030/NFS2-3030, NCA/NCA-2,
The LDM-32 and up to three expanders can be configured for up to 64 alarm points and trouble points by setting Switch SW4 to the
'ALARM/TROUBLE' position.
J6
J5 OUTPUTS J7
J8
SW4
Points
Alarm Trouble
1 - 4 1 - 4
LDM-32 Lamp Driver
Points
Alarm Trouble
5 - 8 5 - 8
Points
Alarm Trouble
9 - 12 9 - 12
Points
Alarm Trouble
13 -16 13 - 16
J6
J5 OUTPUTS J7
J8
Points
Alarm Trouble
17-20 17-20
Points
Alarm Trouble
21-24 21-24
Points
Alarm Trouble
25-28 25-28
Points
Alarm
Trouble
First
LDM-E32 Expander
J6
J5 OUTPUTS J7
J8
Points
Alarm Trouble
33-36 33-36
Points
Alarm Trouble
37-40 37-40
Points
Alarm Trouble
41-44 41-44
Points
Alarm Trouble
45-48 45-48
Second
LDM-E32 Expander
J6
J5 OUTPUTS J7
J8
Points
Alarm Trouble
49-52 49-52
Points
Alarm Trouble
53-56 53-56
Points
Alarm Trouble
57-60 57-60
Points
Alarm Trouble
61-64 61-64
Third
LDM-E32 Expander

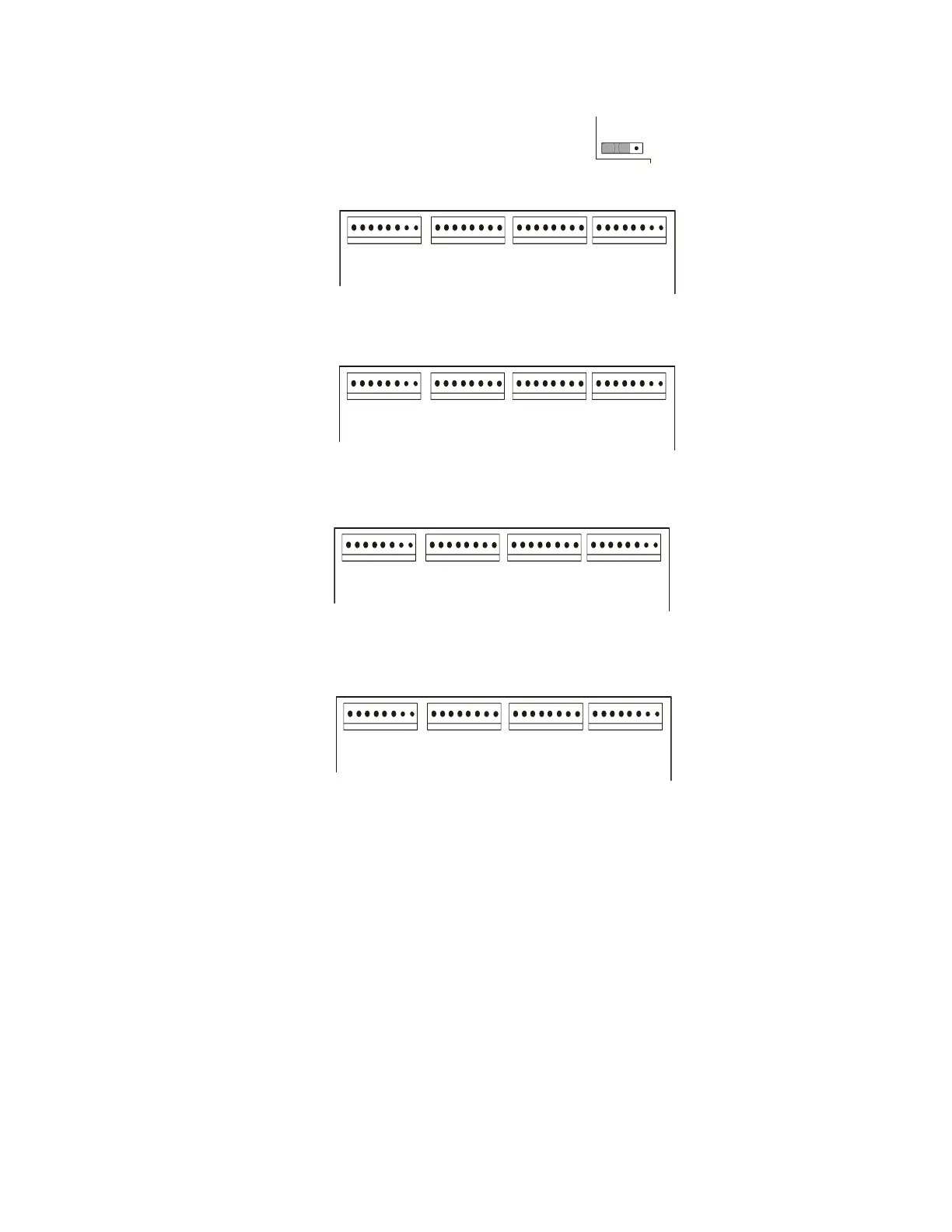

Figure C.3 Alarm and Trouble Points
