– Compatible Printer
Programming of Key Switch, Access Points, and Motion Detection
RKS Remote Key Switch with Monitor Module
Address: LXXMYYY (arbitrary)
Type ID: ACCESS MONITOR
Zone Map: (none)
Custom Label: Arming Switch
Contact Switches with Monitor Modules
Address: LXXMYYY (arbitrary)
Type ID: ACCESS MONITOR
Zone Map: ZA
Custom Label: Exit Door #
Motion Detectors with Monitor Modules
Address: LXXMYYY (arbitrary)
Type ID: ACCESS MONITOR
Zone Map: ZB
Custom Label: Motion Detection
5. Programming of Logic Equations
Logic Equation for 1 minute exit delay:
ZLa* = DEL(00:30, 00:00:00, address of key switch)
Logic Equation for Trouble arming system:
ZLb* = AND (ZA, address of key switch, NOT(Zla))
Logic Equation to arm system:
ZLc* = AND (ZLa, NOT(ZLb))
Logic Equation providing 30-second entry delay:
ZLd* = SDEL(00:00:30, 00:00:30, AND (ZA,ZLc)
Logic Equation for Security Alarm:
ZLe* = AND (ZLc, OR (ZLd))
TENANT A
AREA 1
(Perimeter
and interior)
To Signaling
Line Circuit
MM
To Central Station
(via EIA-485 circuit)
Entry/Exit Door
NFS2-3030 Central Station
* Group Interface must be
physically located in either
the protected premises or
the Central Station
Key
Motion Detector
Contact Switch
Contact Switch with MM Module
Pull Station
Smoke Detector
RKS-S Remote Key Switch with MM Module
Remote Annunciator
MM Security Access Monitor
Group Interface *
RM
MM RM

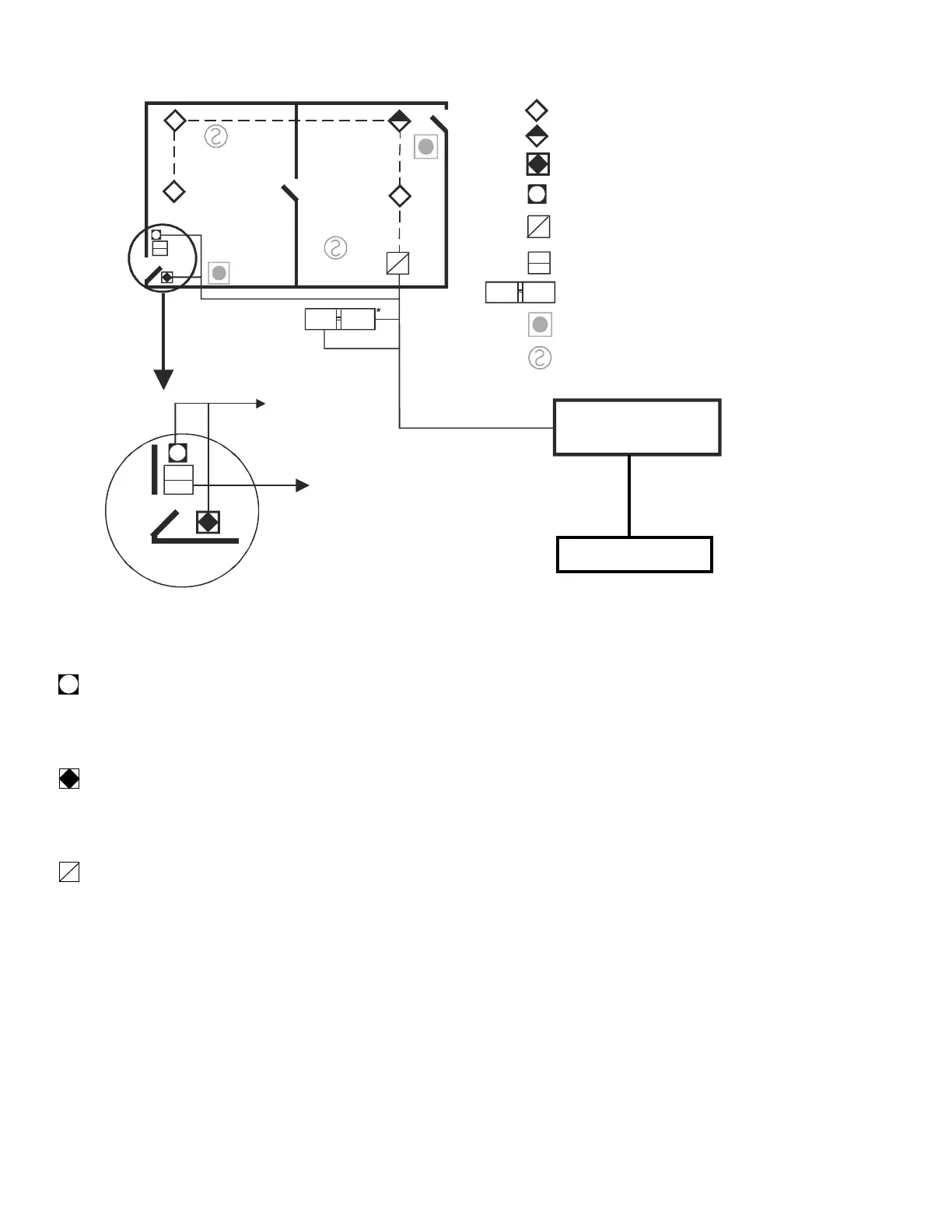

Figure 19 Single Tenant Security System with Entry/Exit Delay
Compatible Printer
