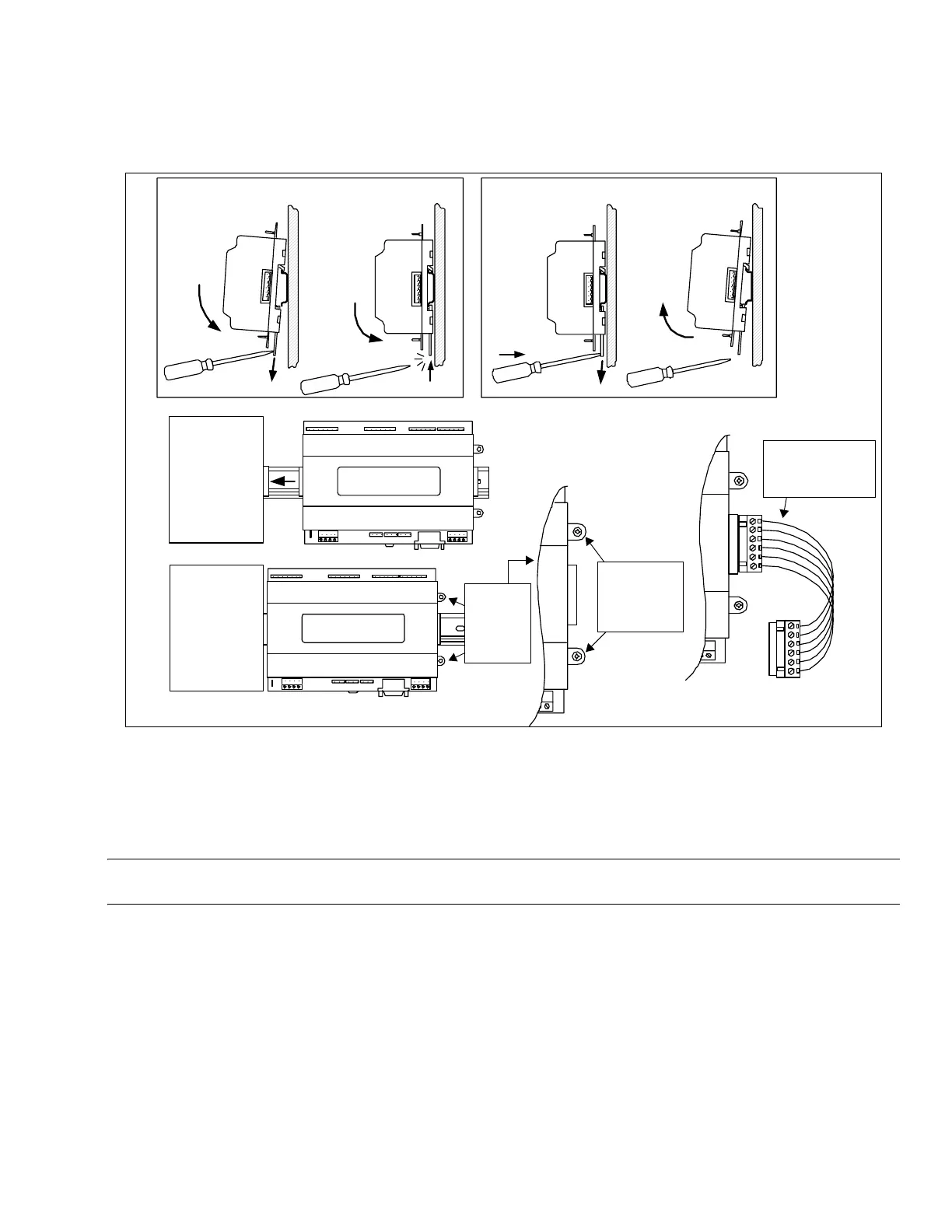

Fig. 3. Security Controller mounting details.
Removing and Replacing the Cover
You must remove the Security Controller cover to connect the NiMH battery (new unit), or to replace this battery, or to install any
option boards. The cover snaps onto the base with four plastic tabs (two on each end).
To remove the cover, press in the four tabs on both ends of the unit, and lift the cover off.
NOTE: If expansion modules are plugged into the Security Controller, you may need to slide them away from the unit to get to
the cover tabs.
To replace the cover, orient it so the cutout area for comm ports is correct, then push inwards to snap in place.
Mounting on DIN Rail
Removing from DIN Rail
Security
Controller
Security
Controller
Tab holes
align with
tapped
holes in
enclosure.
Install supplied
phillips head
screws in
mounting tabs
(2) and tighten.
SEC-ENC-H-2
enclosure includes
wiring harness for
expansion modules.
SEC-ENC-H-1
or
SEC-ENC-H-2
Enclosure
Power Supply
