Honeywell ST 800 Quick Start Installation Guide

SmartLine Pressure Transmitter
December 2016 Quick Start Installation Guide 5
Existing Mounting Bracket
Align appropriate mounting holes in transmitter with holes in bracket and secure with
bolts and washers provided.
Note: If the meter body is hexagonal, you must use the additional bracket supplied. If
meter body is round, discard the bracket.

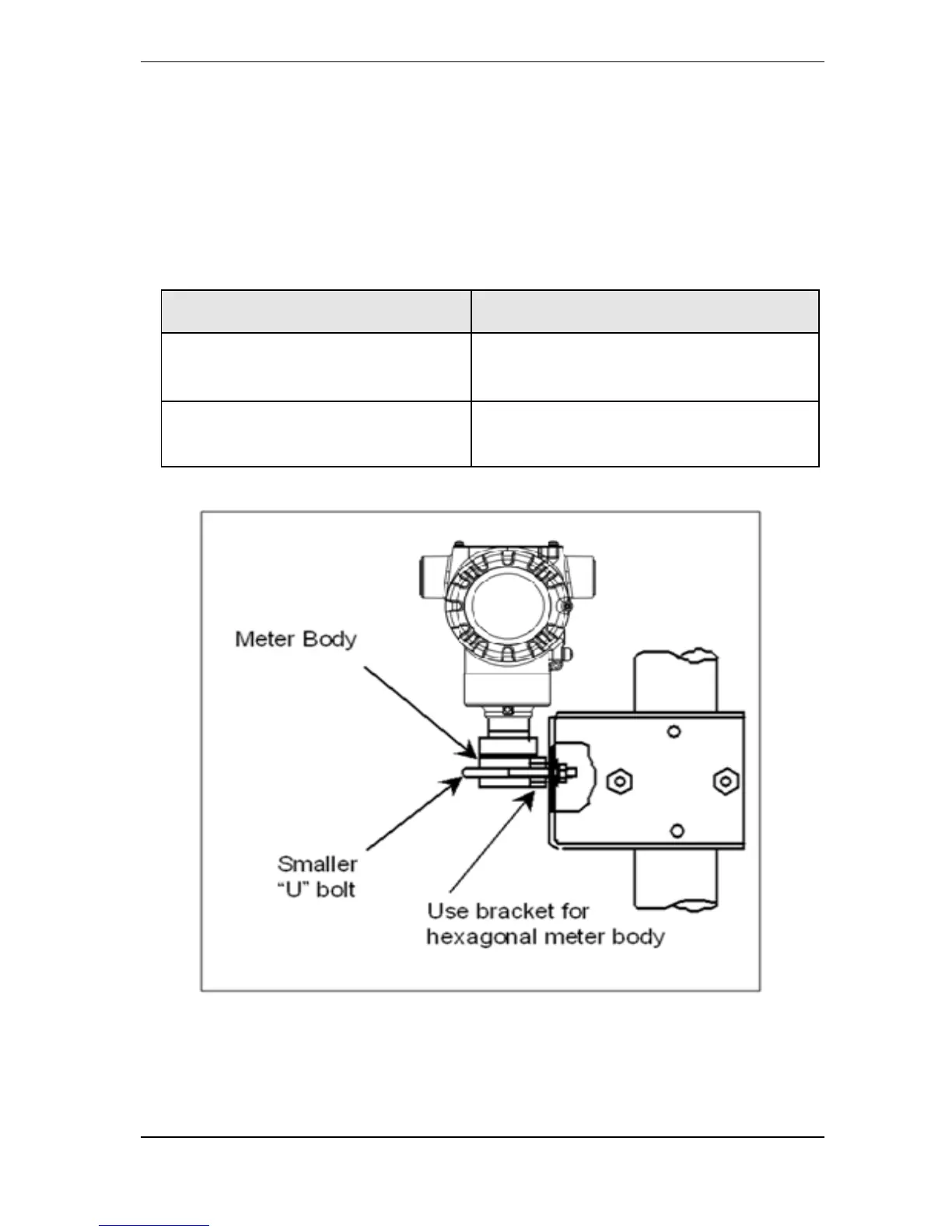

Example – LGP model transmitter mounted to optional angle mounting bracket.
If Transmitter is….
Then….
DP, Dual Head GP, Dual Head AP
and DP Remote Seals.
Use alternate mounting holes in end of
heads.
In-line GP and AP (LGP model) or
GP/AP Remote Seal
Use smaller “U” bolt provided to attach
meter body to bracket. See Figure 3.
Figure 3: LGP and LAP models
