SmartLine Pressure Transmitter
8 Quick Start Installation Guide December 2016
Flange Mounting
To mount a flange mounted transmitter model, bolt the transmitter’s flange to the
flange pipe on the wall of the tank.
On insulated tanks, remove enough insulation to accommodate the flange extension.
It is the End User’s responsibility to provide a flange gasket and mounting hardware
that are suitable for the transmitter’s service condition.
To prevent degradation of performance in Flush-Mounted Flanged Transmitters,
exercise care to ensure that the internal diameter of the flange gasket does not
obstruct the sensing diaphragm.
To prevent degradation of performance in Extended Mount Flanged Transmitters,
ensure that there is sufficient clearance in front of the sensing diaphragm body.

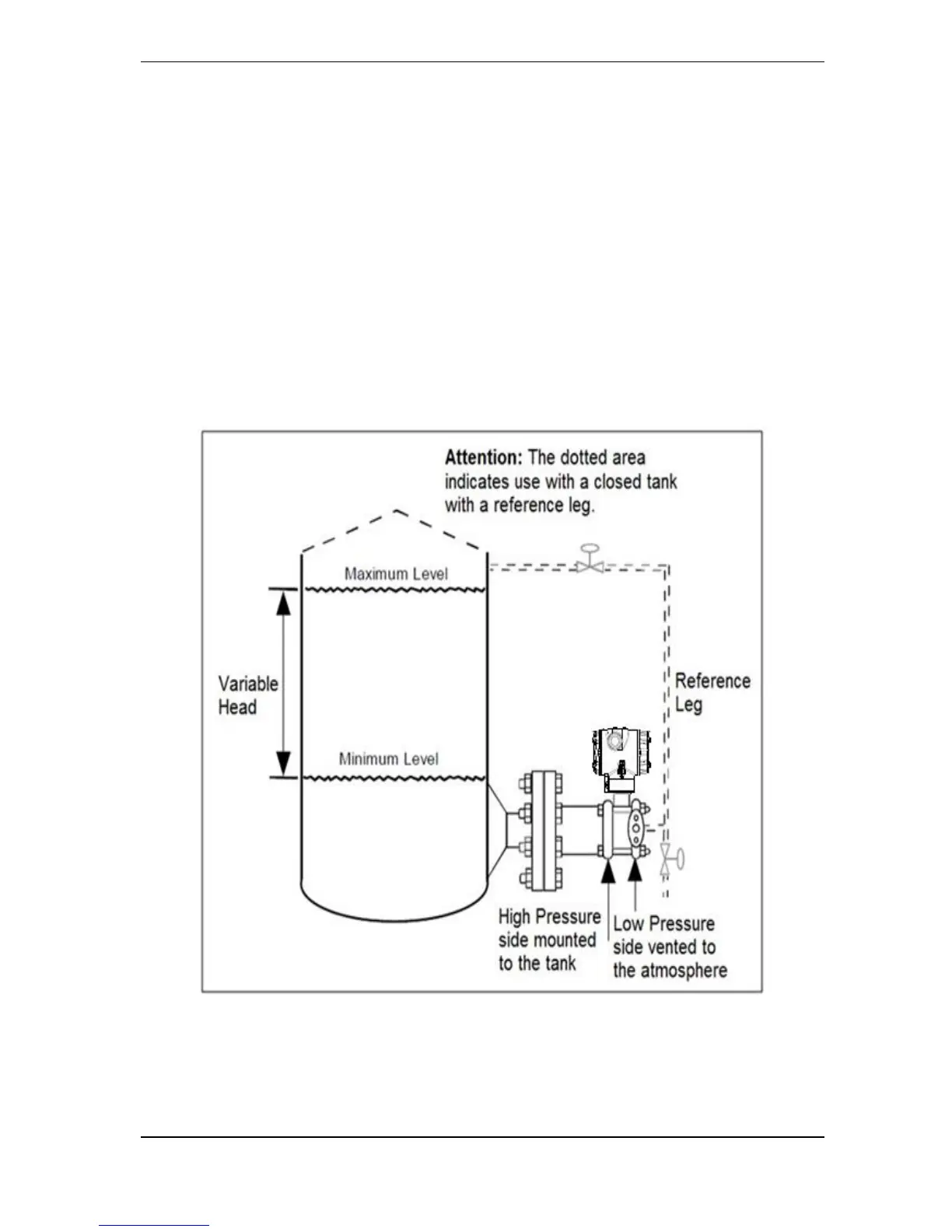

Figure 6: Flange mounting
