Mounting Instructions Page 5
PRELIMINARY OPERATIONS
Mounting Instructions
It is recommended that you attach the cables to wall box. The position
selected for mounting the box must satisfy the requirements laid down for the
mounting area and allow the necessary space for opening the box (see
Figure 1). In addition, there must be sufficient space to the right and rear of
the unit to allow access to the box with a screwdriver.
tube 14cm 12cm mounting area
encased
box
floor
cables
32cm
work area

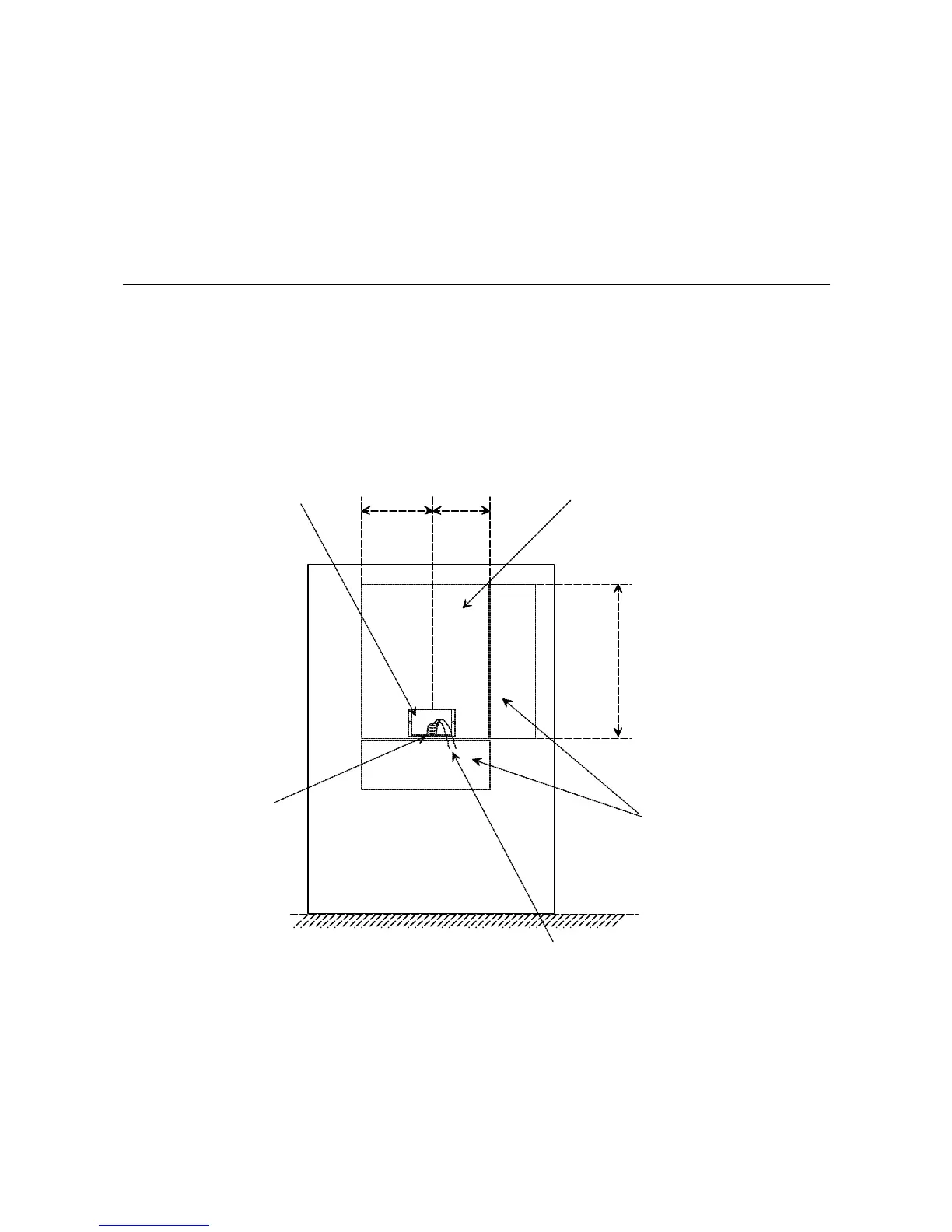

Figure 1: Space requirements for mounting
